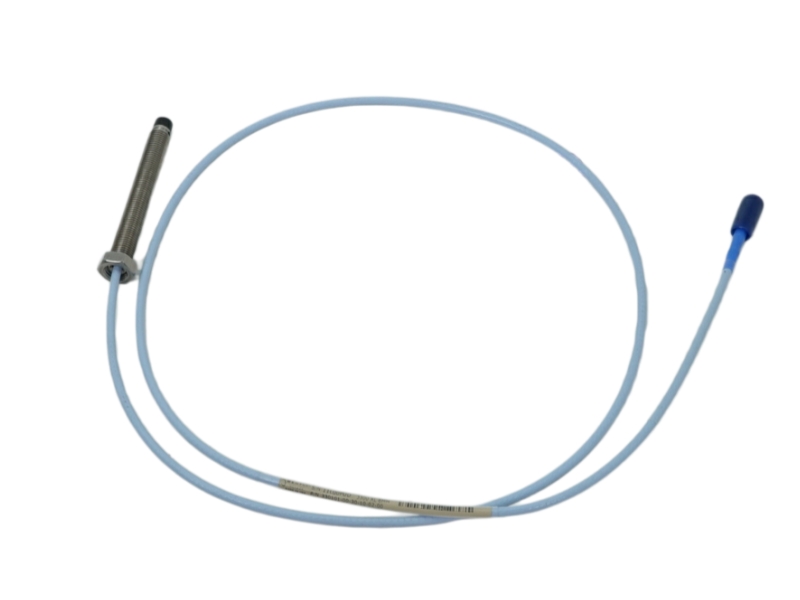

The Bently Nevada 330101-00-30-10-01-00 is a 3300 XL 8 mm probe designed for precise gap measurement, offering stable signal output, enhanced durability, and reliable performance in demanding rotating machinery monitoring applications.
Specifications
Probe Tip Materia：Polyphenylene sulfide (PPS).
Probe Case Material：AISI 303 or 304 stainless steel (SST).
Standard cable：75Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable in the following total probe lengths: 0.5, 1, 1.5, 2, 3, 5, or 9 meters.
Extended Temperature Range cable：75Ω triaxial, perfluoroalkoxy(PFA) insulated probe cable in the following total probe lengths: 0.5, 1, 1.5, 2, 5, or 9 meters
Tensile Strength (MaximumRated)：330 N (75 lbf) probe case to probe lead. 270 N (60 lbf) at probe lead to extension cable connectors.
Connector Material：Gold-plated brass or goldplated beryllium copper.
Standard Probe：-52°C to +177°C (-62°F to +350°F)
Extended Temperature Range Probe：-52°C to +218°C (-62°F to +425°F) for the probe tip; -51°C to +260°C (-60°F to+500°F) for the probe cable and connector.
Maximum unthreaded length: 8.8 in. Maximum case length: 9.6 in.
Minimum case length: 0.8 in.Minimum unthreaded length: 0.0 in.
FAQ
Q1: What does the Bently Nevada 330101-00-30-10-01-00 measure?
A1: It measures both shaft vibration and position by detecting the distance to a conductive surface.
Q2: What industries commonly use this probe?
A2: It is widely used in power generation, oil & gas, and industrial rotating equipment monitoring.
Q3: How does this probe ensure reliable performance?
A3: It features advanced eddy current technology for stable, high-precision signal output.
Q4: Is this probe compatible with other systems?
A4: Yes, it is backward compatible with many 3300 series 5 mm and 8 mm components.
Q5: What optional feature helps prevent fluid leakage?
A5: The FluidLoc cable option blocks oil and contaminants from migrating through the cable.
