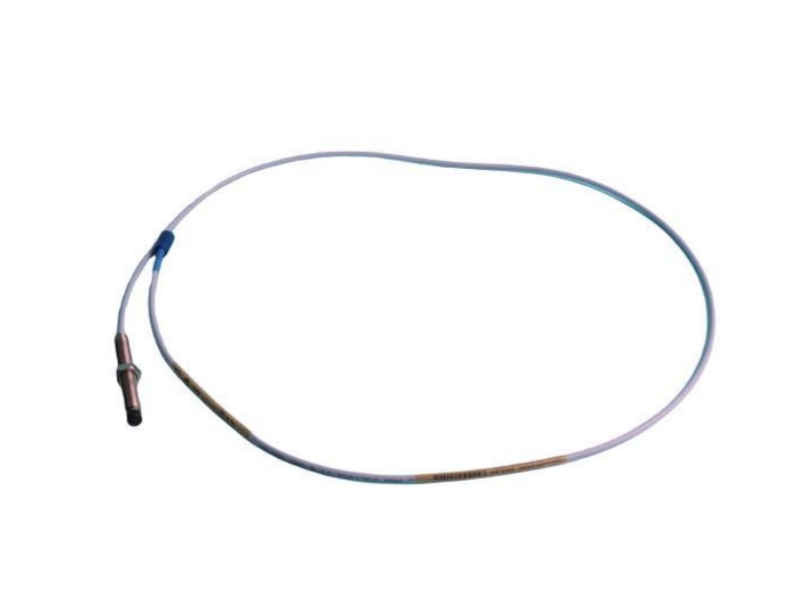

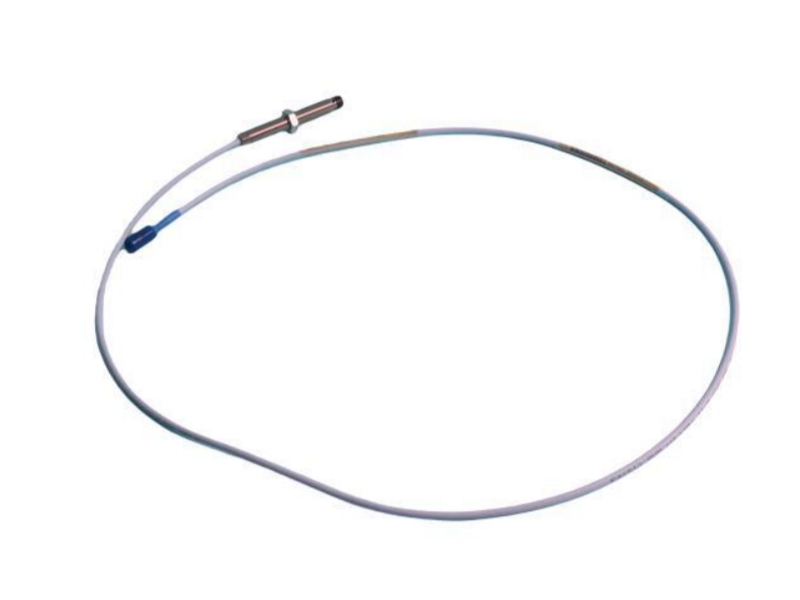

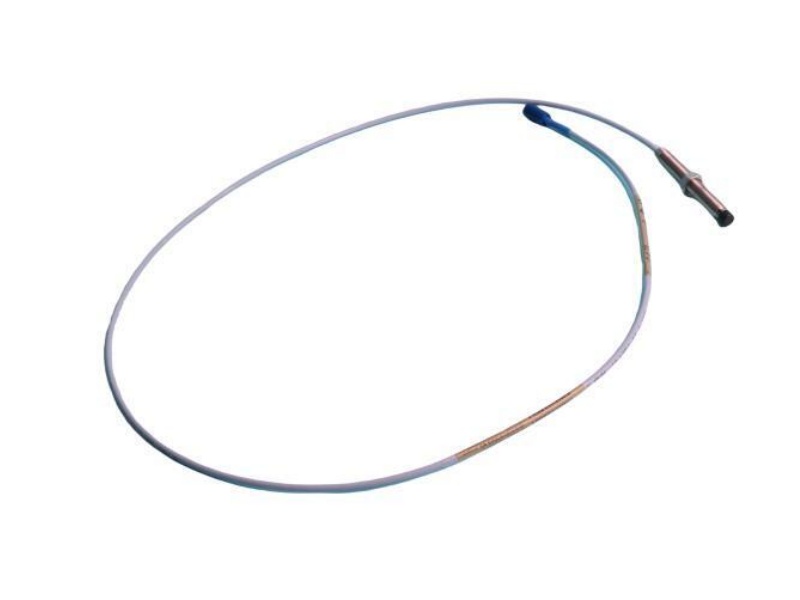

The Bently Nevada 330101-00-26-05-01-05 is part of the 3300 XL 8 mm proximity transducer system, delivering reliable vibration and position measurement with high accuracy, API 670 compliance, and strong interchangeability.
Specifications
Probe Tip Materia：Polyphenylene sulfide (PPS).
Probe Case Material：AISI 303 or 304 stainless steel (SST).
Standard cable：75Ω triaxial, fluoroethylene propylene (FEP) insulated probe cable in the following total probe lengths: 0.5, 1, 1.5, 2, 3, 5, or 9 meters.
Extended Temperature Range cable：75Ω triaxial, perfluoroalkoxy(PFA) insulated probe cable in the following total probe lengths: 0.5, 1, 1.5, 2, 5, or 9 meters
Tensile Strength (MaximumRated)：330 N (75 lbf) probe case to probe lead. 270 N (60 lbf) at probe lead to extension cable connectors.
Connector Material：Gold-plated brass or goldplated beryllium copper.
Standard Probe：-52°C to +177°C (-62°F to +350°F)
Extended Temperature Range Probe：-52°C to +218°C (-62°F to +425°F) for the probe tip; -51°C to +260°C (-60°F to+500°F) for the probe cable and connector.
FAQ
Q1: What is the Bently Nevada 330101-00-26-05-01-05 used for?
A1: It is used for non-contact vibration and position measurement in fluid-film bearing machines.
Q2: How does this transducer system measure distance?
A2: It outputs a voltage proportional to the gap between the probe tip and the conductive surface.
Q3: Is this model compliant with industry standards?
A3: Yes, it fully complies with API 670 for accuracy, linear range, and temperature stability.
Q4: Can components be interchanged easily?
A4: Yes, probes, cables, and sensors are fully interchangeable without recalibration.
Q5: What design features improve durability?
A5: It includes TipLoc and CableLoc technologies, ensuring strong bonding and high pull strength.
