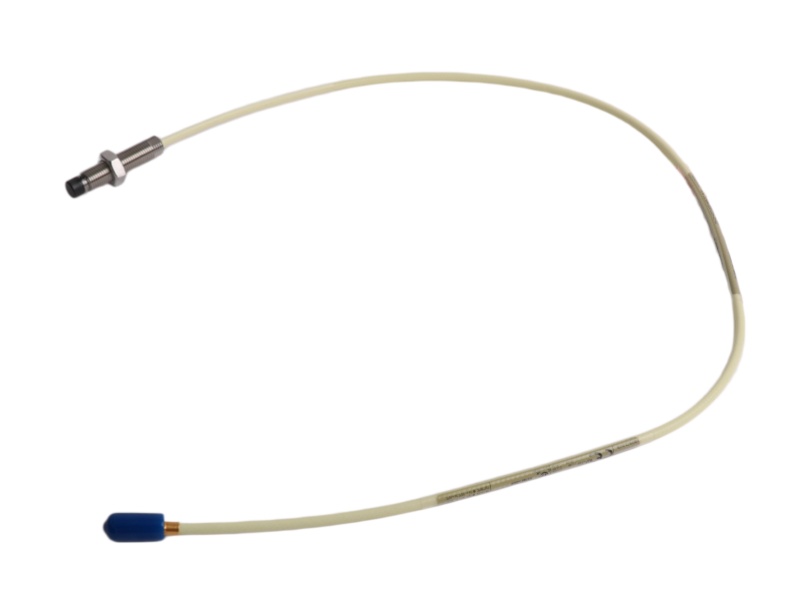

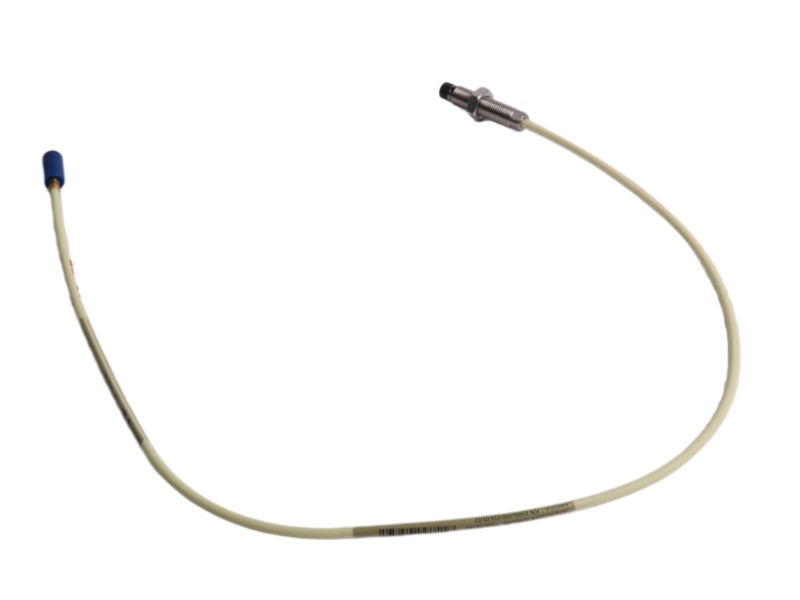

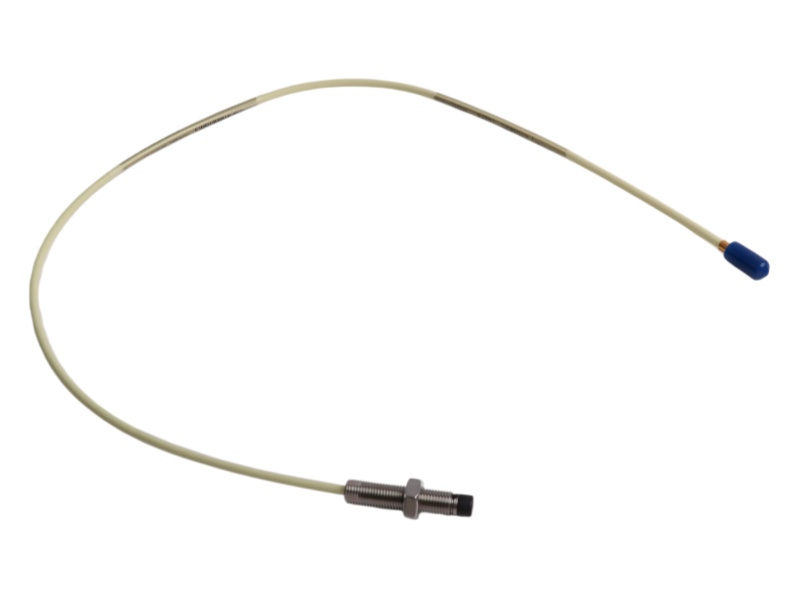

The Bently Nevada 21504-000-012-05-02 5 mm and 8 mm Standard Mount Probe is a 7200 Series 5 mm standard mount probe. It features a 0.5-meter integral cable and miniature coaxial connector for noncontacting vibration and displacement measurements.

Features and Benefits

Eddy Current Principle: Operates using noncontacting eddy current technology for accurate distance sensing between probe tip and target surface.

Dual Measurement: Measures both static (position) and dynamic (vibration) distances for comprehensive machine monitoring.

Linear Range: Offers 80 mils (2 mm) of linear measuring range, compatible with API 670 requirements.

System Compatibility: Works seamlessly with 3300 and 9000 Monitoring Systems for easy integration.

Application Versatility: Suitable for turbines, compressors, pumps, motors, and generators in various industries.

Compact Design: Features 0.5-meter integral cable with miniature male coaxial connector for flexible installation.

FAQ

Q1: What operating principle does this proximity transducer use?

A1: It operates on the eddy current principle, where the probe senses distance by generating a radio frequency signal and detecting eddy current losses.

Q2: What types of measurements can this system perform?

A2: It measures both static (position) and dynamic (vibration) distances between the probe tip and the observed target.

Q3: What is the linear measuring range of this probe?

A3: The system offers 80 mils (2 mm) of linear measuring range and is compatible with API 670 requirements.

Q4: What are the primary applications for this transducer?

A4: It is commonly used for shaft position and vibration measurements on rotating machinery including turbines, compressors, pumps, and generators.

Q5: Which monitoring systems are compatible with this probe?

A5: All 7200 proximity transducer systems are compatible with 3300 and 9000 Monitoring Systems.
