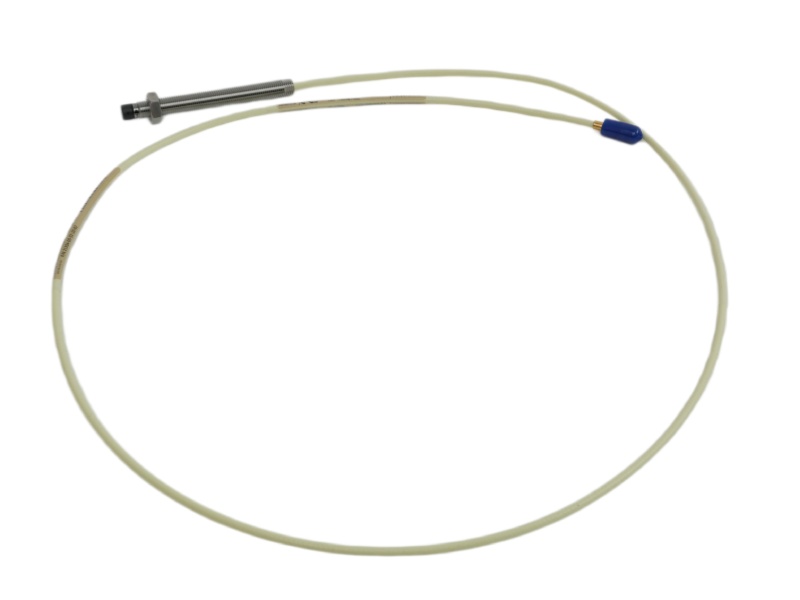

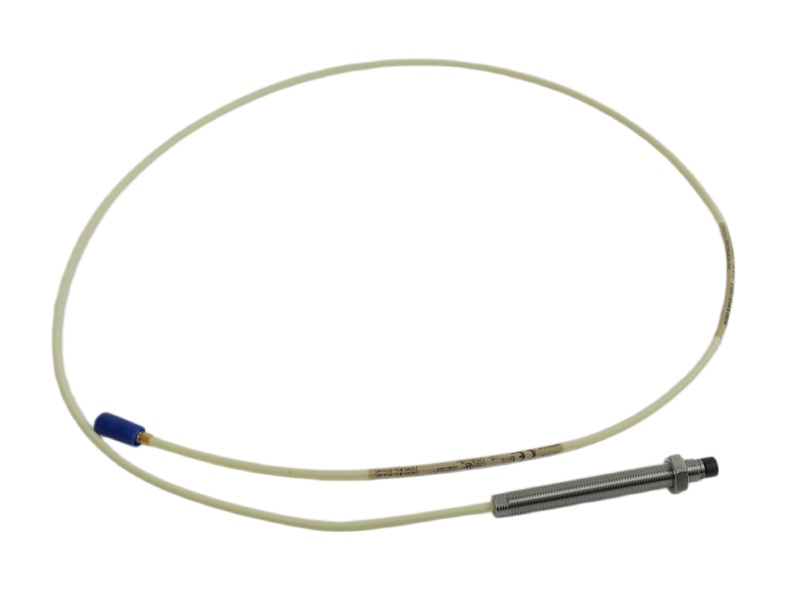

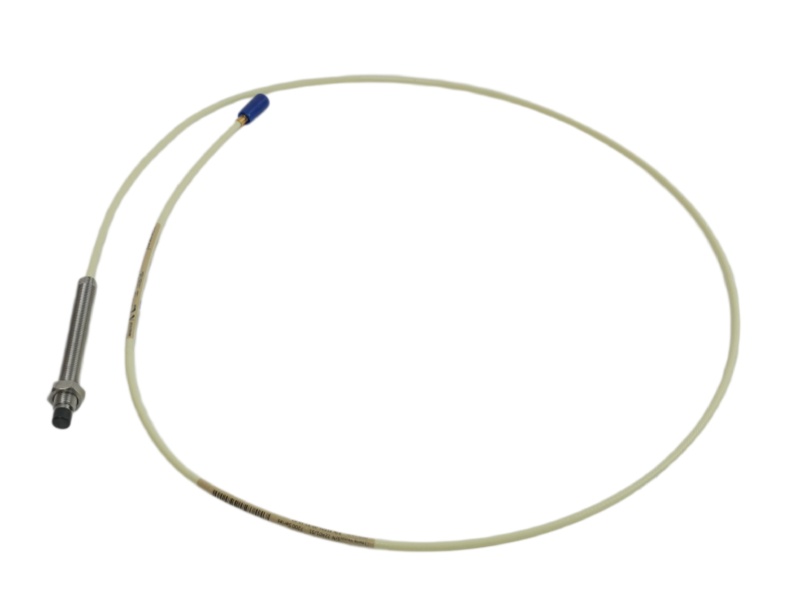

The 8 mm Probe Bently Nevada 21504-012-032-10-02 is a 5mm proximity probe constructed of fiberglass. It features a 1.0-meter integral cable and miniature coaxial connector for noncontacting vibration and displacement measurements.

High-Resolution Measurement

 Linear Range: Offers 80 mils (2 mm) of linear measuring range for precise displacement monitoring.

Scale Factor: Provides 200 mV/mil (8 V/mm) scale factor for high-resolution output.

Frequency Response: Capable of measuring both static (position) and dynamic (vibration) distances accurately.

Material Construction: Fiberglass probe body suitable for confined space installations.

Application Versatility: Ideal for shaft position and vibration measurements on rotating machinery.

Signal Integrity: Integral 1.0-meter cable with miniature coaxial connector ensures reliable signal transmission.

FAQ

Q1: What material is this 5 mm probe constructed from?

A1: The 5 mm probe is constructed of fiberglass, making it suitable for use in confined spaces.

Q2: What is the linear range and scale factor of this transducer?

A2: It offers 80 mils (2 mm) of linear range with a scale factor of 200 mV/mil (8 V/mm).

Q3: What type of connector does this probe use?

A3: It features a 1.0-meter (39 inches) integral cable with a miniature male coaxial connector.

Q4: What are the primary applications for this probe?

A4: It is designed for noncontacting displacement measurements, commonly used for shaft position and vibration monitoring on rotating machinery.

Q5: Does this probe require an extension cable?

A5: No, with the 1.0-meter integral cable option, the lead length is built directly into the probe.
