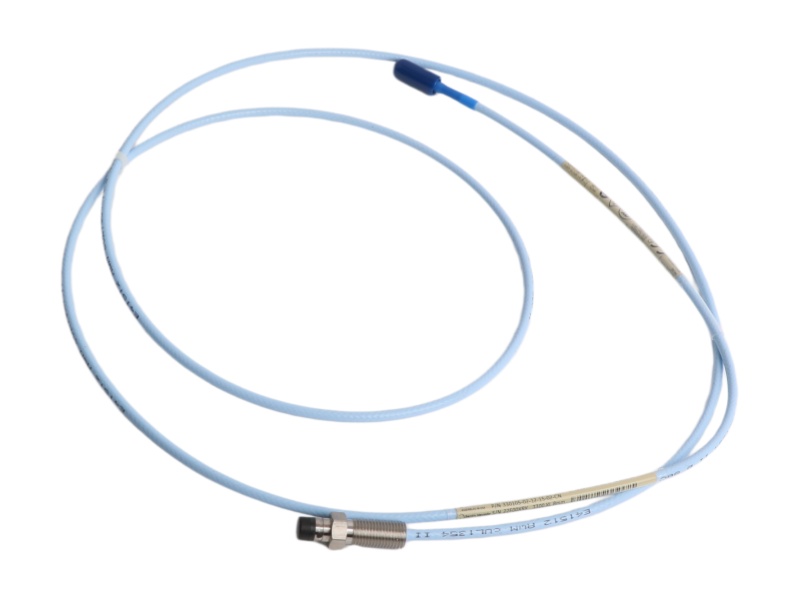

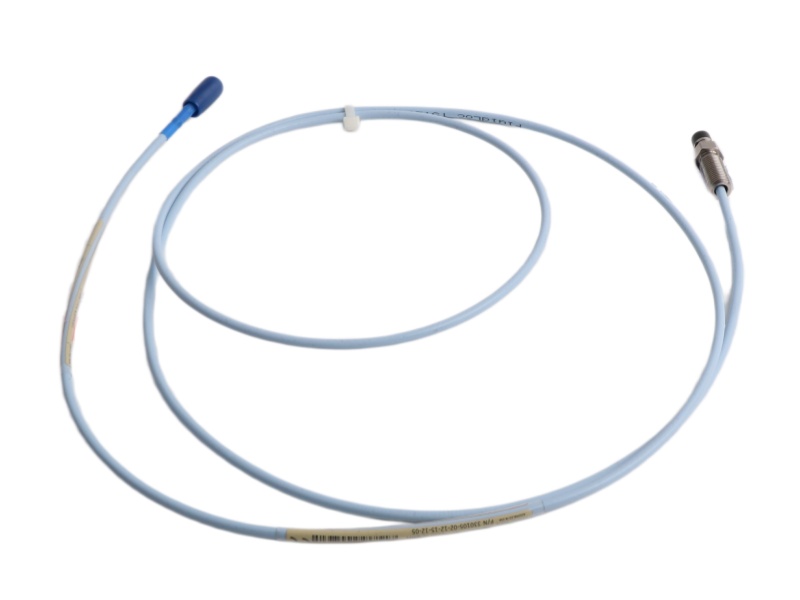

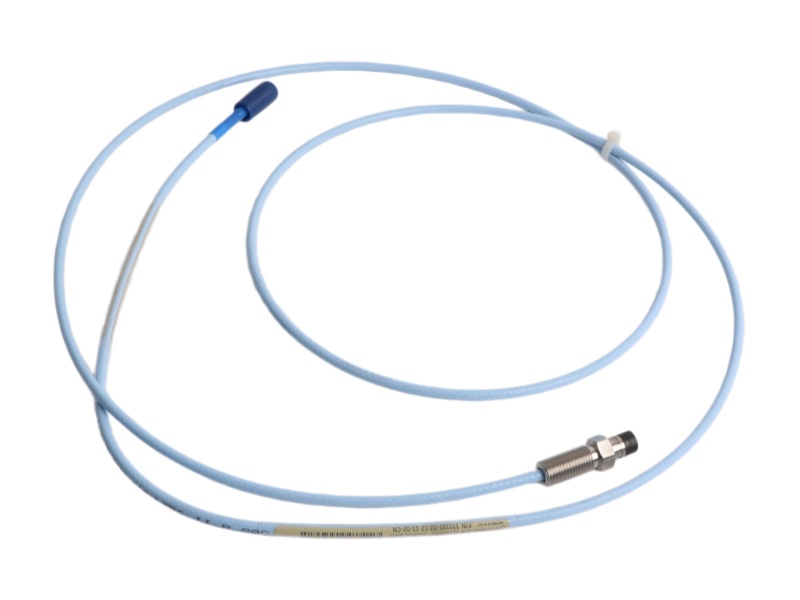

Sensor Cable 130539-72 Bently Nevada is a 3‑conductor 18AWG shielded cable for accelerometers, with wide temperature range and stable electrical properties.

High-Resolution Measurement

Precision Signal Transmission: 3-conductor shielded design ensures accurate data from accelerometers for high-resolution vibration analysis.

Low Capacitance: <100 pF/m minimizes signal distortion for precise measurement fidelity.

Wide Temperature Range: –40°C to +200°C operation maintains measurement accuracy in extreme conditions.

Controlled Impedance: 50–100 Ω characteristic impedance optimizes signal integrity for critical machinery monitoring.

High Voltage Rating: 300 V AC/DC capacity supports reliable performance in industrial environments.

Flexible Length Options: Customizable up to 99 ft enables optimal positioning for accurate casing acceleration measurements.

FAQ

Q1: What is the length of the 130539-72 cable?

A1: It is a 72-foot (22 m) 3-conductor shielded cable with 18 AWG wire.

Q2: What temperature range can this cable withstand?

A2: It is rated for extreme temperatures from –40 °C to +200 °C.

Q3: What are the termination types on this cable?

A3: It features a 3-socket plug with fluorosilicone elastomer boot at one end and terminal lugs at the other.

Q4: What is the voltage rating for this cable?

A4: It is rated for 300 V AC/DC operation with characteristic impedance of 50–100 Ω.

Q5: What is the capacitance value of this shielded cable?

A5: It has a low capacitance of less than 100 pF/m for minimal signal distortion.
