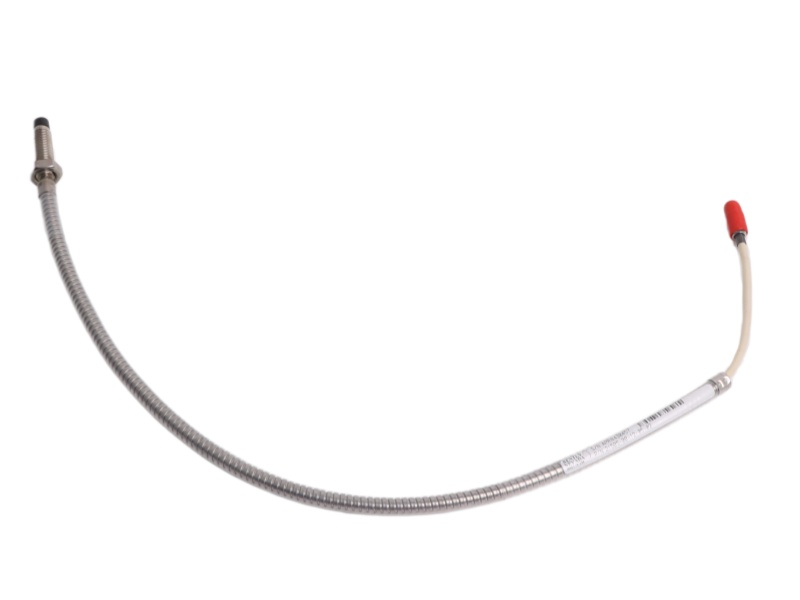

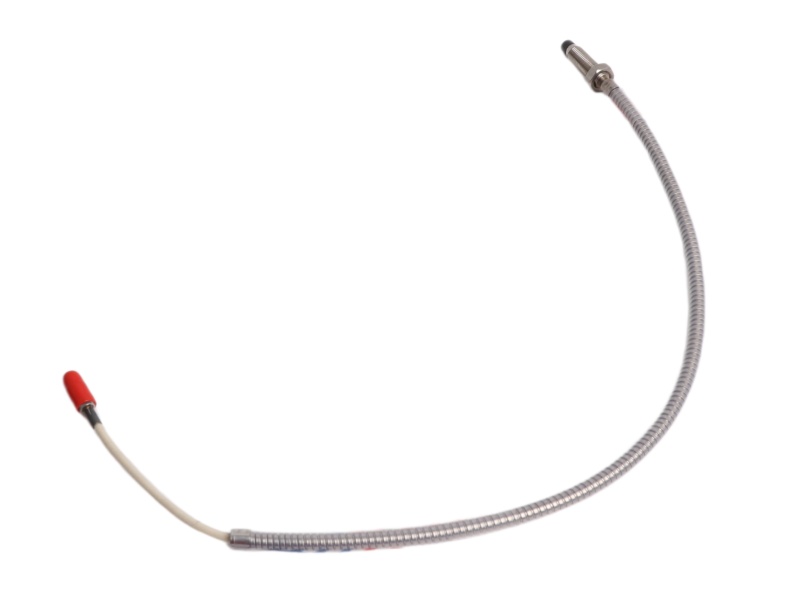

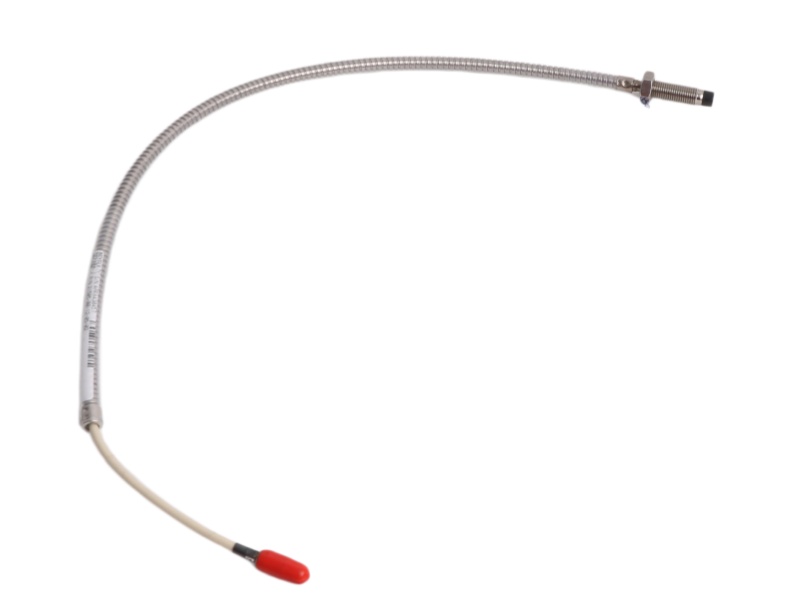

The 8mm Series Proximity Transducer Systems Bently Nevada 21505-00-40-10-02 is a 7200 Series 5mm proximity probe. It features a 1.0-meter integral cable with a miniature coaxial connector for noncontacting vibration and displacement measurements.

Technical Data Summary

System Type: Noncontacting gap-to-voltage transducer for static and dynamic distance measurements.

Frequency Response: 0 Hz (DC) to 10 kHz, capturing both position and vibration data.

Linear Range: Offers 80 mils (2 mm) of linear measuring range for accurate displacement readings.

Compatibility: Fully compatible with 3300 and 9000 Monitoring Systems and meets API 670 requirements.

Applications: Designed for shaft position and vibration monitoring on turbines, compressors, pumps, and motors.

Configuration: Includes a probe with a 1.0-meter integral coaxial cable and miniature male coaxial connector.

FAQ

Q1: What type of measurements can this system perform?

A1: It is a noncontacting, gap-to-voltage transducer system that measures both static (position) and dynamic (vibration) distances.

Q2: What is the frequency response range of the system?

A2: The frequency response range is from 0 Hz (DC) to 10 kHz.

Q3: What is the linear measuring range of the 21505-00-40-10-02?

A3: The system offers a linear measuring range of 80 mils (2 mm).

Q4: What are the primary applications for this transducer?

A4: It is commonly used for shaft position and vibration measurements on rotating and reciprocating machinery like turbines and compressors.

Q5: Which monitoring systems are compatible with this 7200 series transducer?

A5: All 7200 proximity transducer systems are compatible with 3300 and 9000 Monitoring Systems.
