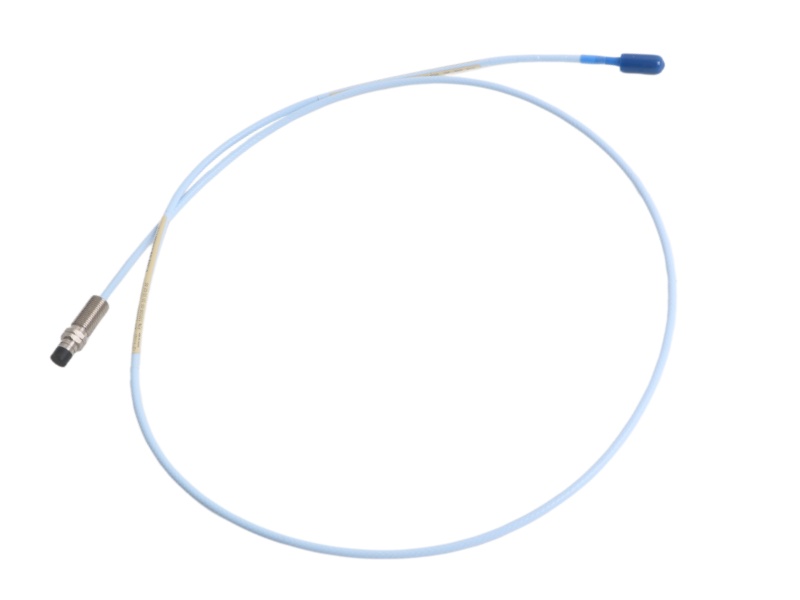

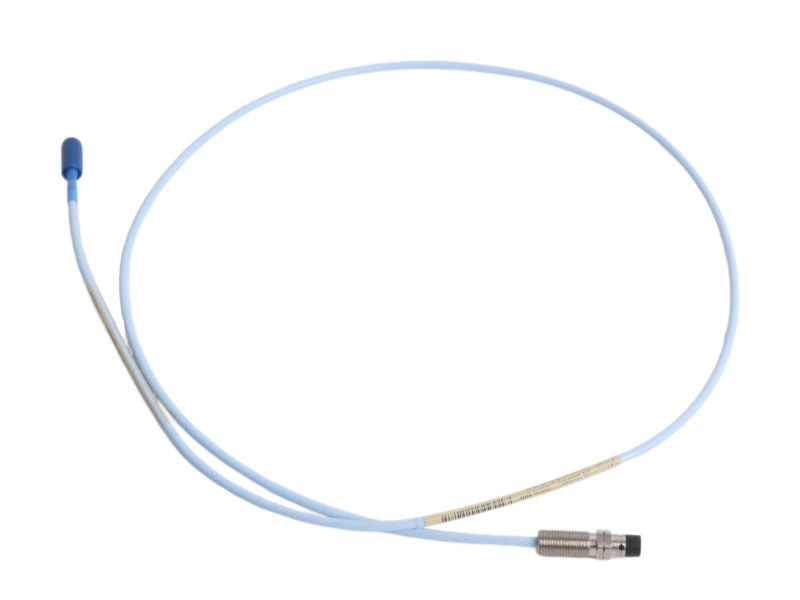

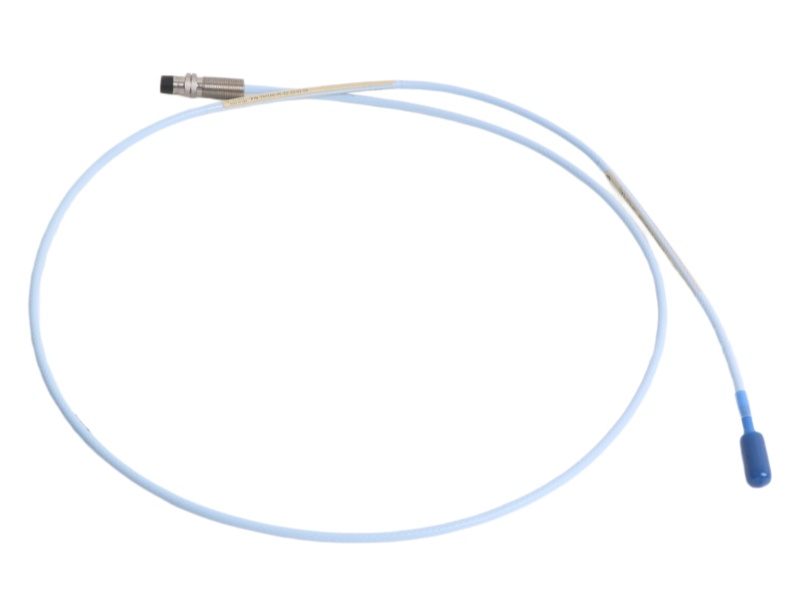

Sensor Connecting Cable Bently Nevada 130539-50 is a 3‑conductor 18AWG shielded cable for accelerometers, with wide temperature range and stable electrical performance.

Features and benefits

3-Conductor Design: Shielded 18 AWG (1.0 mm²) cable ensures reliable signal transmission for critical machinery monitoring.

Wide Temperature Range: Rated from –40 °C to +200 °C for operation in harsh industrial environments.

Dual-End Termination: 3-socket plug with fluorosilicone elastomer boot at one end, terminal lugs at the other for secure connections.

High Voltage Rating: 300 V AC/DC capacity for versatile application compatibility.

Low Capacitance: < 100 pF/m minimizes signal loss over long distances.

Installation Support: Manual available to assist with proper cable installation and setup.

FAQ

Q1: What is the length of the 130539-50 cable?

A1: It is a 50-foot (15.2 m) 3-conductor shielded cable with 18 AWG wire.

Q2: What temperature range can this cable withstand?

A2: It is rated for extreme temperatures from –40 °C to +200 °C.

Q3: What are the termination types on this cable?

A3: It features a 3-socket plug with fluorosilicone elastomer boot at one end and terminal lugs at the other.

Q4: What is the characteristic impedance of this cable?

A4: It has a characteristic impedance of 50–100 Ω with capacitance < 100 pF/m.

Q5: Is installation support available for this cable?

A5: Yes, a manual is available to assist with proper installation of this cable.
