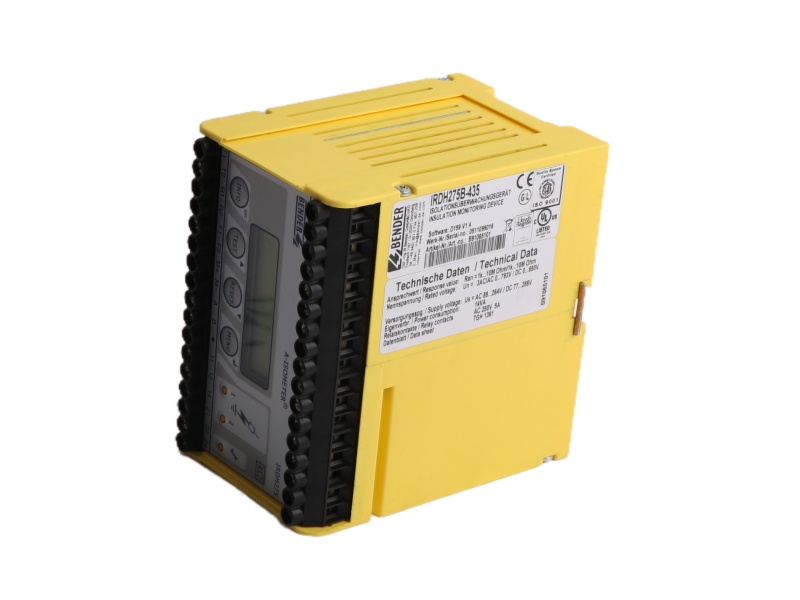

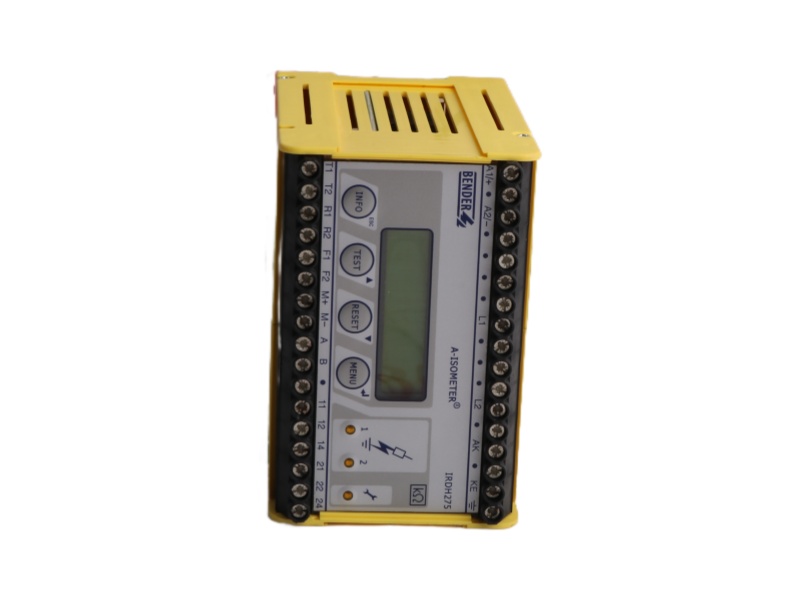

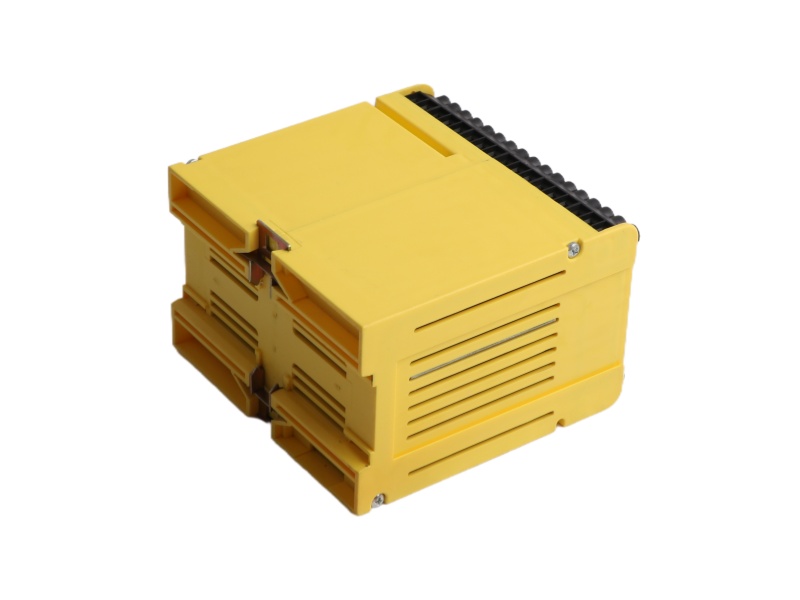

The IRDH275B-435 Insulation Monitoring Device BENDER is a specialized insulation monitoring device designed for enhanced electrical safety in industrial environments. It operates effectively within a wide voltage range, supporting systems from 0 to 793 VAC or 0 to 650 VDC, making it a versatile component for monitoring ungrounded IT power systems. The robust design of it ensures reliable performance, which is crucial for preventing electrical hazards and maintaining operational continuity.

A key technical feature of the IRDH275B-435 IT systems BENDER is its configurable analog output. Unlike standard models, this specific version provides a selectable 0-20 mA or 4-20 mA output signal, which can be easily programmed via the device's main menu under the ISO SETUP section. This functionality allows for seamless integration into broader control and monitoring systems, enabling continuous tracking of insulation resistance levels that can be critical for predictive maintenance strategies.

Proper installation is fundamental to the performance of the BENDERIRDH275B-435 Insulation Monitoring Device. Wiring must adhere to specific guidelines, using conductors between AWG 24 and AWG 12 for optimal signal integrity and safety. For systems operating at higher voltages, the integration of a voltage coupler is mandatory, as outlined in the dedicated wiring sections of the user manual. These precise installation requirements ensure that it functions accurately and reliably over its service life.

In summary, the BENDER ground fault detector IRDH275B-435 stands as a critical safeguard in electrical installations. Its ability to monitor insulation resistance from 1 kΩ to 10 MΩ, combined with its flexible analog communication and strict adherence to installation protocols, makes it an indispensable device for protecting both personnel and equipment from insulation faults. The reliability of the IRDH275B-435 insulation resistance monitor helps ensure the safety and efficiency of complex electrical systems.
