BES 516-114-SA1-05 Overview

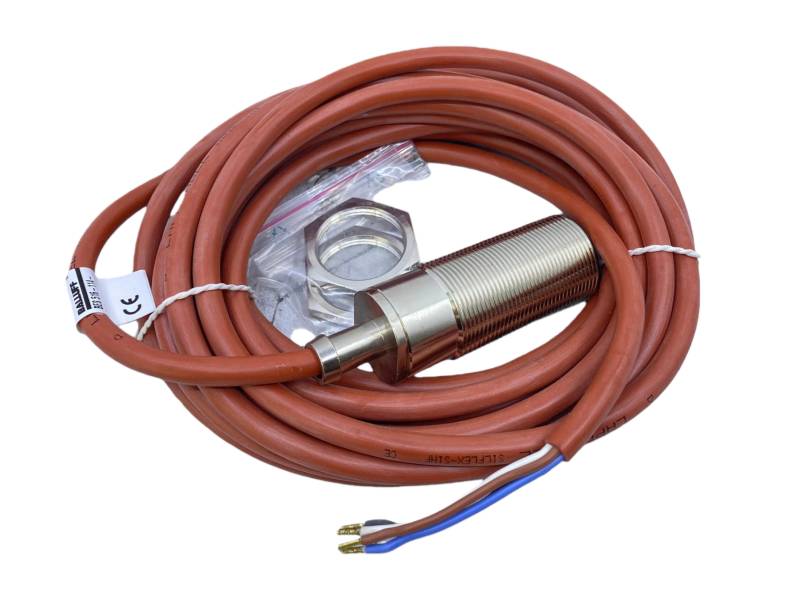

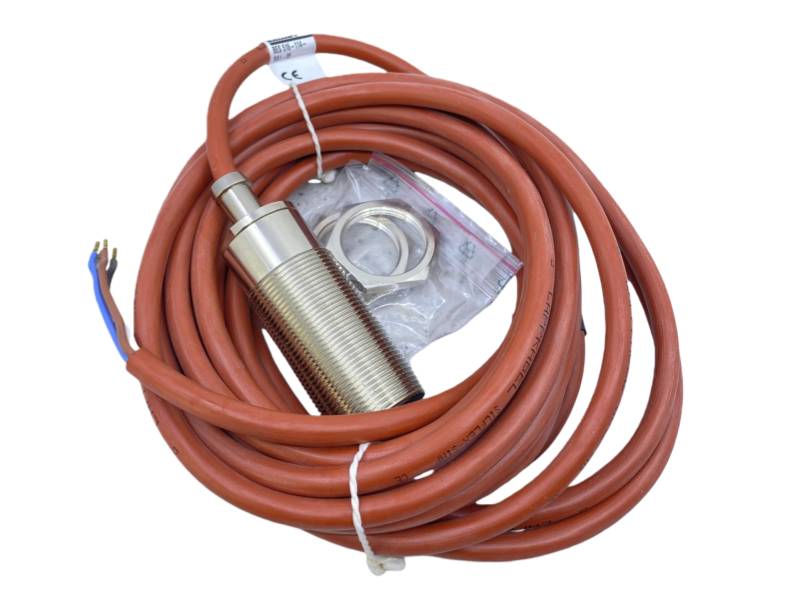

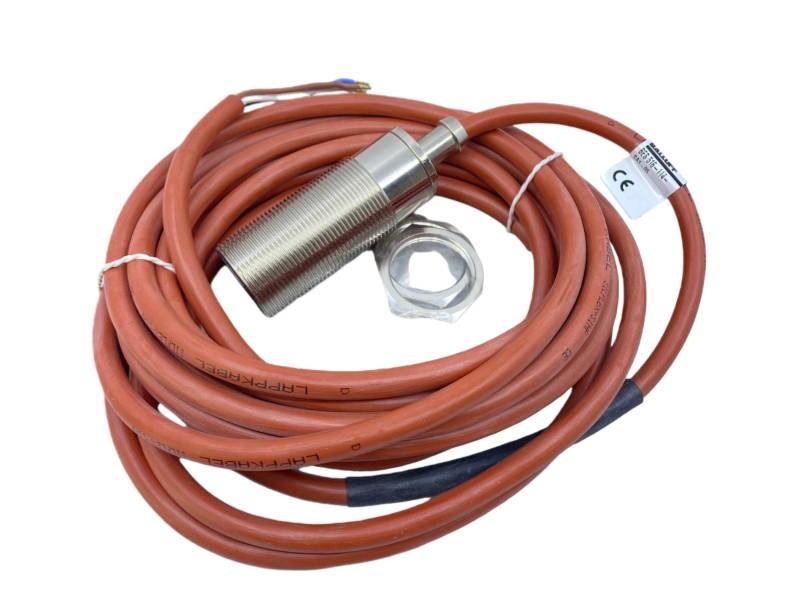

The BALLUFF Inductive Sensors BES 516-114-SA1-05 is an M30 inductive sensor with a 10mm range, PNP switching, NO/NC contacts, and a durable IP67-rated nickel-plated brass housing for industrial applications.

Features and Benefits

Versatile Output: PNP output with both NO and NC switching modes for flexible wiring and control logic.

Long Sensing Range: Provides a 10 mm detection range, suitable for applications requiring a longer sensing distance.

Fast Response: High switching frequency of 300 Hz enables reliable detection of fast-moving objects.

Robust Construction: Features a nickel-plated brass housing with IP67 rating, ensuring durability and resistance to dust and water ingress.

Standard Mounting: Designed with M30x1.5 threading and capability for flush mounting, allowing for easy and secure installation.

Wide Voltage Range: Operates on a broad 10-30 VDC power supply, ensuring compatibility with various industrial systems.

FAQ

Q1: What is the sensing range of the BES 516-114-SA1-05 sensor?

A1: It has a sensing range of 10 mm.

Q2: What type of electrical output does this sensor provide?

A2: It provides a PNP (sourcing) output with both Normally Open (NO) and Normally Closed (NC) switching contacts.

Q3: How fast can the sensor operate?

A3: It has a high switching frequency of 300 Hz.

Q4: What is its environmental protection rating?

A4: It is rated IP67, making it dust-tight and protected against temporary immersion in water.

Q5: What voltage supply does it require?

A5: It operates on a DC supply voltage ranging from 10 to 30 VDC.
