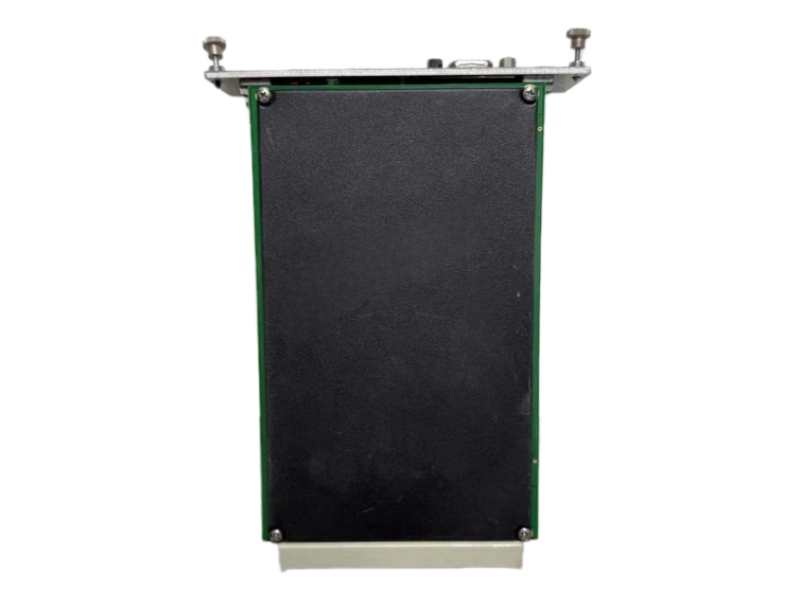

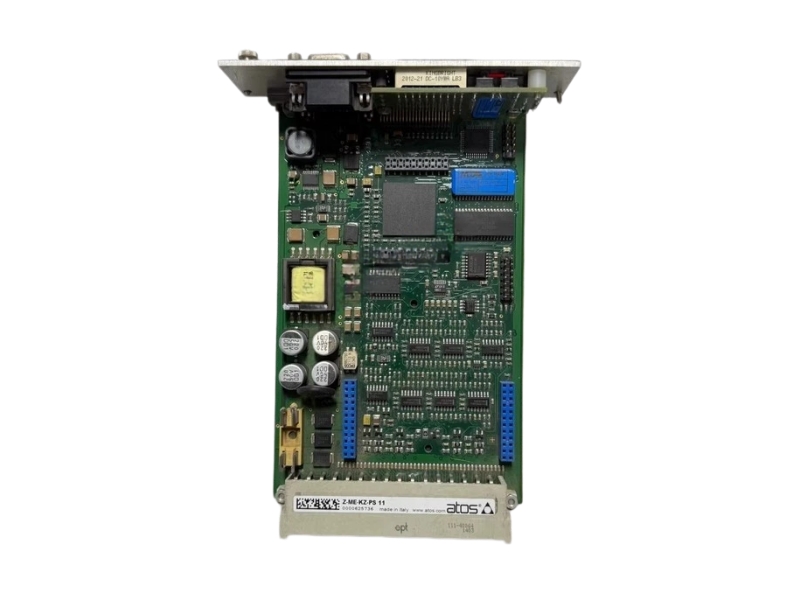

Z-ME-KZ-PS Overview
The Atos Z-ME-KZ-PS is a digital axis controller enabling closed-loop position and force control for hydraulic systems, featuring flexible feedback interfaces, PID tuning, and real-time diagnostics.
Technical Data Summary
| Power supply (see 11.1) | Nominal: +24 Vcc Rectified and filtered: VRMS = 20 ÷ 32 Vmax (ripple max 10 % Vpp) | ||
| Max power consumption | 10 W | ||
| Position transducer | SSI, incremental encoder, potentiometer, analog | ||
| Front panel dimensions | 128,4 x 40 mm | ||
| Mass | Approx. 250 g | ||
| Electromagnetic compatibility (EMC) | According to Directive 2004/108/CE (Immunity: EN 50082-2; Emission: EN 50081-2) | ||
FAQ
Q1: What is the main function of the Z-ME-KZ-PS controller?
A1: It performs closed-loop position control for linear and rotary hydraulic axes.
Q2: What types of position feedback does the Z-ME-KZ-PS support?
A2: It supports SSI, incremental encoder, potentiometer, and analog voltage or current inputs.
Q3: Can the Z-ME-KZ-PS operate with external and internal reference signals?
A3: Yes, it can use either external analog/fieldbus signals or internally generated motion cycles.
Q4: Does the Z-ME-KZ-PS support force or pressure control?
A4: Yes, it can perform combined position and pressure/force control with an additional transducer.
Q5: What diagnostic and configuration features does the Z-ME-KZ-PS include?

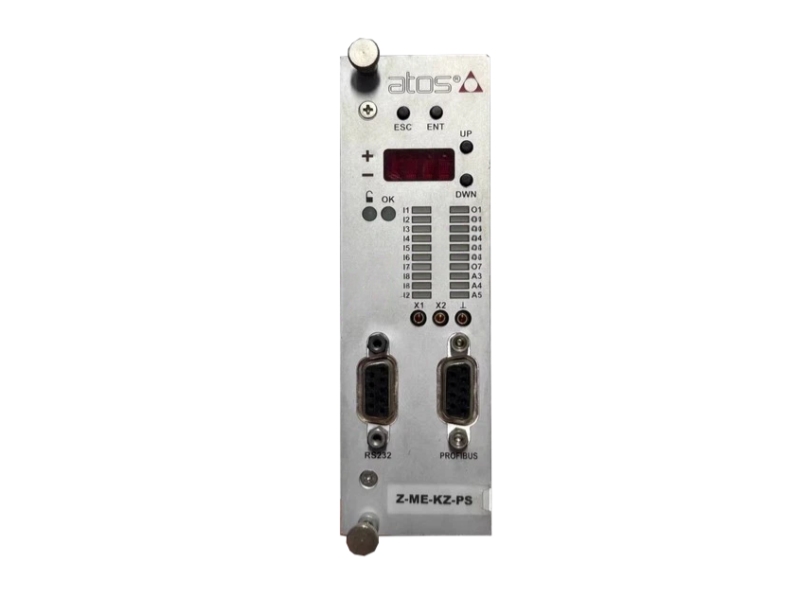

A5: It includes a front panel display, serial programming port, and internal oscilloscope for advanced diagnostics.
