MPL-B320P-SJ72AA Product datasheet

MPL-B320P-SJ72AA  Functional Description

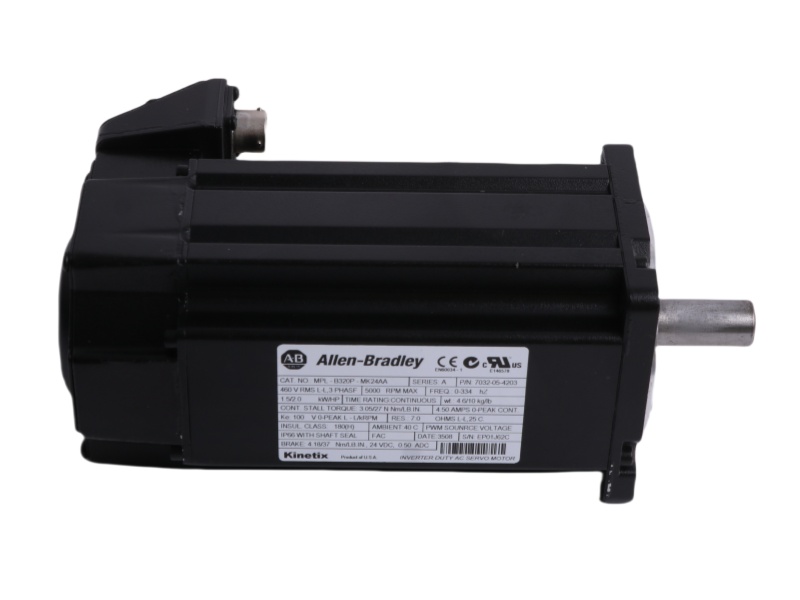

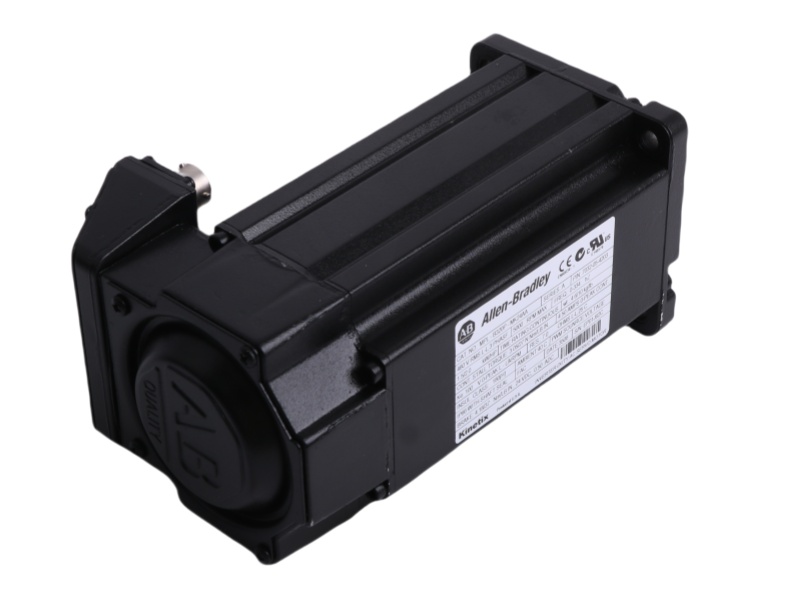

The Allen Bradley MPL-B320P-SJ72AA Integrated Axis Module is a low-inertia servo motor from the Kinetix MP Series, designed for high-speed motion control applications. Featuring rare earth magnets in its rotor, it delivers rapid acceleration and precise positioning, making it ideal for factory automation tasks such as assembly lines, material handling, and sorting systems. Compatible with Kinetix 5500, 5700, 6200/6500, and other Allen-Bradley servo drives, this motor integrates a high-resolution encoder for real-time feedback and closed-loop control.

With a 400V class rating and Frame Size 3 (100mm), the ROCKWELL AUTOMATION MPL-B320P-SJ72AA offers a rated speed of 5000 RPM and 1.5 kW output power. The MPL-B320P-SJ72AA Allen Bradley Servo Motor Series    provides a continuous stall torque of 3.05 Nm (2.7 lb-in) and a peak torque of 7.91 Nm (7.0 lb-in), ensuring robust performance in dynamic applications. The motor’s low rotor inertia (0.000078 kg-m²) enhances responsiveness, while its IP53/IP66 protection rating (depending on mounting orientation) ensures durability in harsh environments.

The Servo Motor MPL-B320P-SJ72AA  Allen-Bradley features a 180° rotatable, right-angle DIN connector (SpeedTec) for flexible installation. It operates within an ambient temperature range of 0–40°C (32–104°F) and should be stored in non-corrosive conditions (-30 to 70°C) when not in use. For optimal protection, a shaft seal is recommended to prevent contamination from dust or fluids.

Designed for high-performance automation, the Integrated Axis Module AB MPL-B320P-SJ72AA comes with factory-installed feedback and power cables in standard lengths. Its compact, brushless design reduces maintenance while improving efficiency. For full compatibility and cable options, consult Allen-Bradley technical support. This servo motor is a reliable choice for precision motion control in industrial settings.
