MPL-B4560F-SJ72AA Product datasheet

MPL-B4560F-SJ72AA  Functional Description

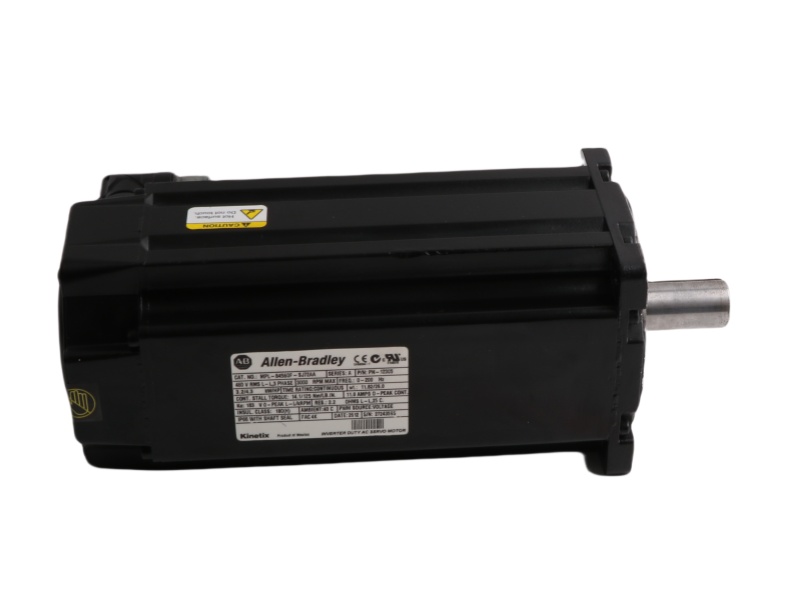

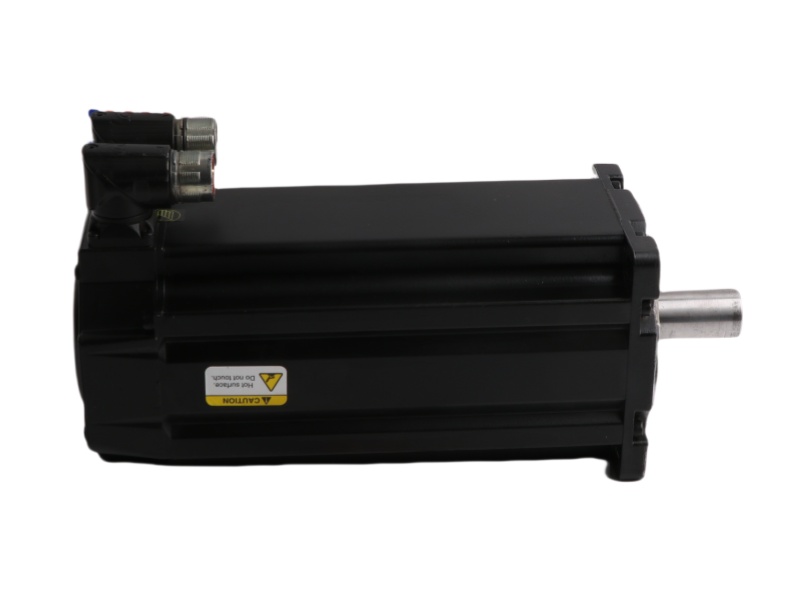

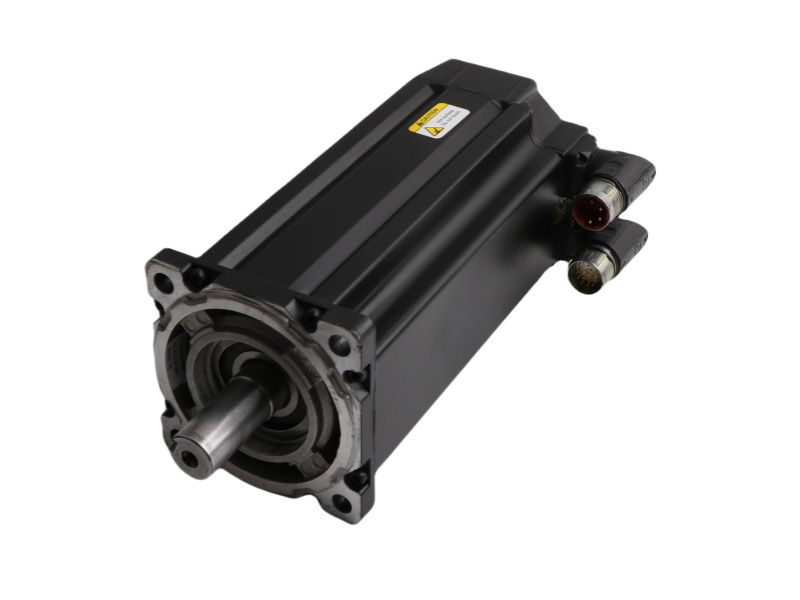

The MPL-B4560F-SJ72AA AB MP-series MPL AC Rotory Servo Motor is a low-inertia servo motor from the Kinetix MP-Series, designed for high-performance motion control in industrial automation. With a 460V AC power rating and a 152.4 mm (6-inch) magnet stack length, this motor delivers 3,000 RPM rated speed, making it ideal for dynamic applications requiring rapid acceleration and precise positioning. It features a single-turn, high-resolution optical encoder (1,024 SIN/COS) for accurate feedback, along with a keyed shaft and SpeedTec DIN connector (180° rotatable) for quick installation. The Allen Bradley MPL-B4560F-SJ72AA is a brakeless, brushless motor with an IEC metric flange, ensuring compatibility with various motion systems.

As part of Rockwell Automation’s Kinetix servo motor family, the SERVO MOTOR ROCKWELL MPL-B4560F-SJ72AA is engineered for high torque density and efficiency. Its 130 mm frame size and compact design make it suitable for space-constrained applications while maintaining robust performance. The motor’s innovative winding technology generates a rotating magnetic field, enhancing responsiveness in high-speed automation tasks such as robotics, CNC machines, and material handling.

The Allen-Bradley Bulletin MPL Low Inertia Brushless Servo Motors MPL-B4560F-SJ72AA requires proper mechanical alignment to prevent system instability. Its ball bearings, couplings, and pulleys must be periodically inspected to avoid loosening, which could damage the keyed shaft. Additionally, electromagnetic compatibility (EMC) is critical—power cable shields must be grounded to prevent high-voltage hazards. Proper cable routing and strain relief are essential for maintaining signal integrity and motor longevity.

With an IP-rated enclosure (no shaft seal), the MPL-B4560F-SJ72AA Allen-Bradley In Stock is built for durability in industrial environments. The MPL-B4560F-SJ72AA Allen Bradley  Servo Motoroperates optimally when installed with correct torsion and alignment, ensuring minimal vibration and wear. For safe and efficient operation, users should follow Rockwell Automation’s guidelines on cable management and grounding. This servo motor is a reliable choice for precision motion systems, offering high dynamic response, low inertia, and seamless integration with Kinetix drives.
