2711PC-T6C20D8 Product datasheet

2711PC-T6C20D8 Functional Description

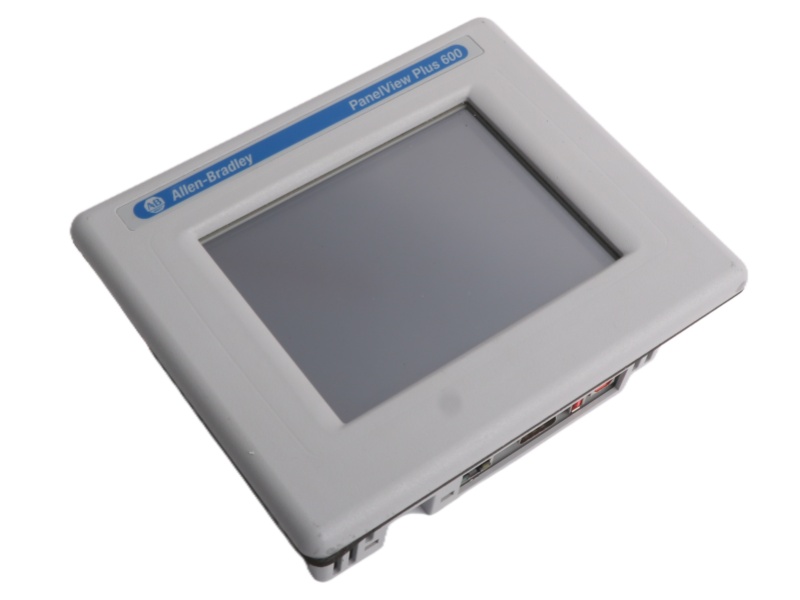

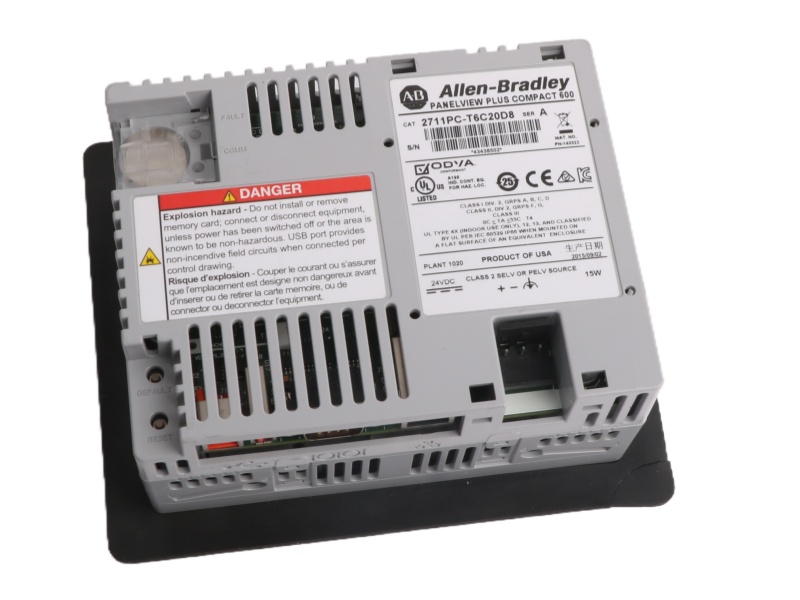

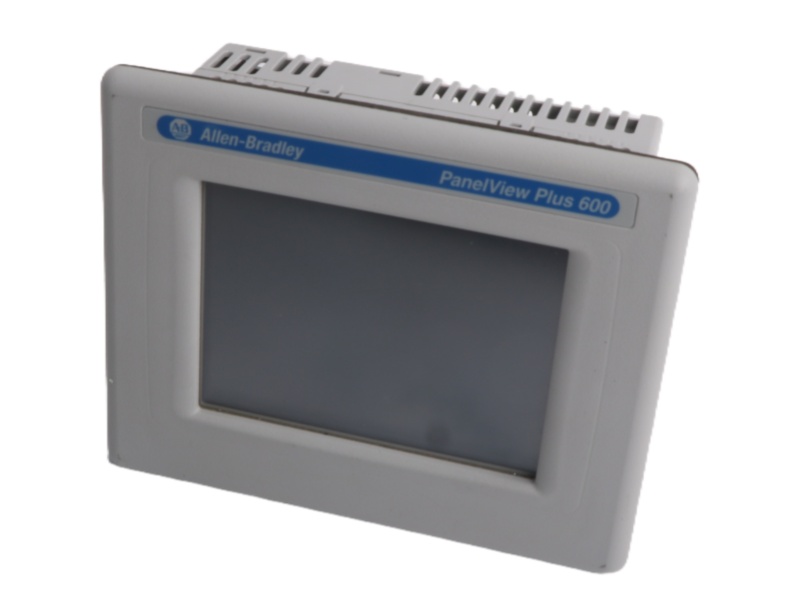

The Allen Bradley 2711PC-T6C20D8 PanelView Plus 6 600 Terminal Touch Screen Ser A is a PanelView Plus 6 Compact 600 Graphics Terminal designed for industrial automation applications. This 5.7-inch TFT color display with 320x240 resolution provides clear visualization of machine processes through its resistive touchscreen interface. It features 18-bit color graphics and supports up to 25 displays and 200 alarm messages, making it suitable for small to medium automation projects. Its compact dimensions of 6×7.28×2.86 inches and lightweight design (1.31 lbs) allow for flexible panel mounting in space-constrained environments.

Equipped with 256MB RAM and powered by 18-30V DC, the 2711PC-T6C20D8 Operator Interface Allen Bradley delivers reliable performance for continuous operation. It offers multiple communication options including Ethernet and RS-232 serial ports, enabling seamless integration with control systems. The terminal's enhanced processor speed and system memory provide faster response times compared to other compact HMI models. The Touch Screen Allen-Bradley 2711PC-T6C20D8 also supports external peripherals like keyboards and features remote connectivity capabilities for distributed monitoring applications.

The PanelView Plus 6 Compact Terminals 2711PC-T6C20D8 ROCKWELL includes advanced features such as a battery-backed clock for data timestamping (4-year minimum battery life) and a 25,000-hour backlight for extended operation. Its resistive touchscreen is rated for 1 million actuations, ensuring long-term durability in industrial environments. The terminal supports NEMA, UL, and IP-rated enclosures for protection against harsh conditions. With built-in PDF viewer and CSV file support, the Allen-Bradley 2711PC-T6C20D8 facilitates easy document access and data management for operators.

Designed for reliability, the PanelView Plus 6 Compact 600 Model Terminal Colour Touch RS232 includes data backup functionality to prevent information loss during system malfunctions. Its vector-based graphics ensure crisp display quality, while the login feature provides secure access control for parameter modifications. The terminal's combination of compact size, robust construction, and advanced features makes it an ideal solution for machine-level visualization and control in manufacturing, packaging, and material handling applications where space and performance are critical considerations.
