2711P-T15C4A2 Product datasheet

2711P-T15C4A2 Functional Description

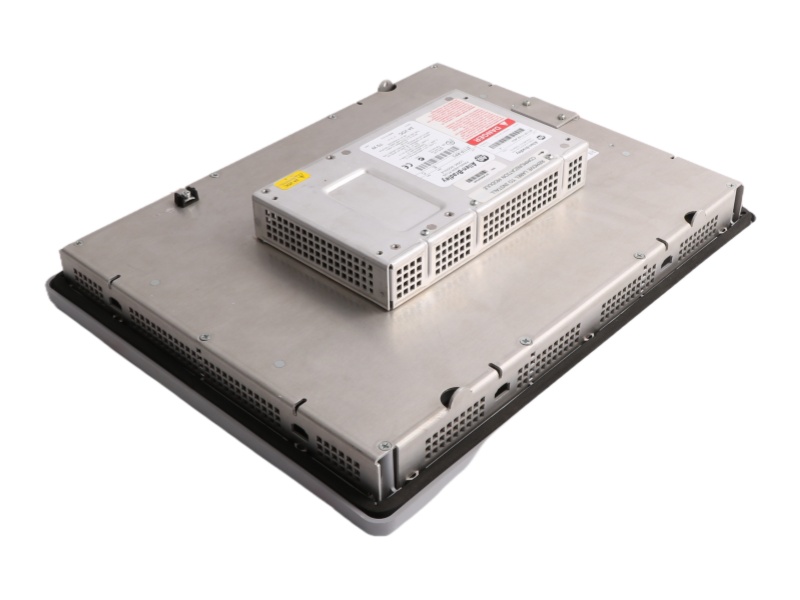

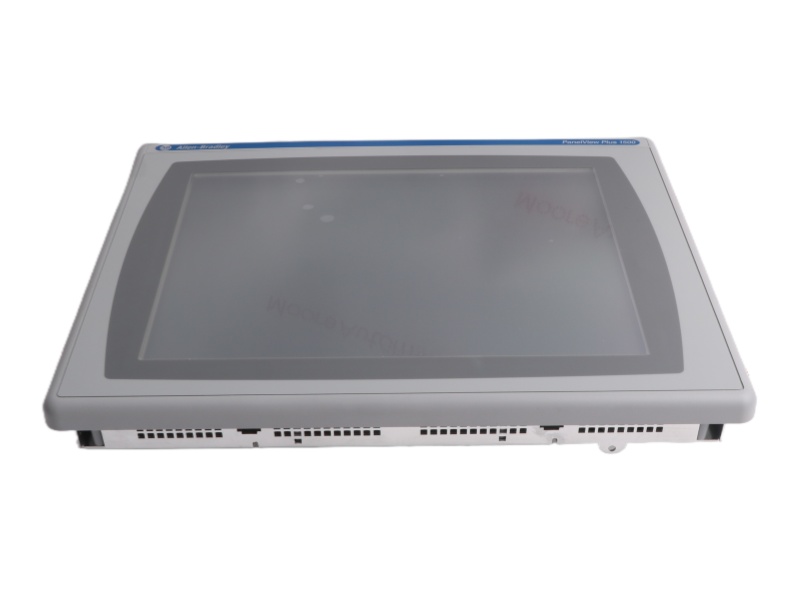

The ROCKWELL PanelView Plus 1500 Touch Screen Ser A Allen Bradley 2711P-T15C4A2 is a 15-inch PanelView Plus 1500 operator interface terminal designed for industrial automation. It features a high-resolution color touchscreen that provides clear visualization for monitoring and controlling machinery and processes in real-time. This AB PanelView Plus 1500 Touch 2711P-T15C4A2 supports versatile communication through its integrated Ethernet, RS-232, and dual USB ports, enabling seamless connectivity with PLCs and other devices.

A key advantage of the 2711P-T15C4A2 Allen-Bradley PanelView Plus 1500 Color Terminal is its flexibility in harsh industrial environments, offering both 700 and 1250-series coated configurations for enhanced durability. The terminal operates on a wide AC voltage range of 85–264V and includes a 128 MB logic module, with optional expandable memory via CompactFlash. Its intuitive interface supports various operator input methods and dynamic elements like gauges, graphs, and pushbuttons.

The Operator Terminal 2711P-T15C4A2 Allen-Bradley allows users to access production data and manuals directly on the screen, improving operational efficiency and reducing downtime. Advanced expression capabilities, such as conditional statements and mathematical functions, enable customized data handling and simplified screen development.

Built without a physical keypad, the 2711P-T15C4A2 Allen Bradley PanelView Plus 1500 Color Terminal relies on its responsive analog resistive touchscreen for all operator inputs. This reliable HMI solution helps reduce inventory and streamline upgrades, making it ideal for complex automation systems where integration and robustness are critical.
