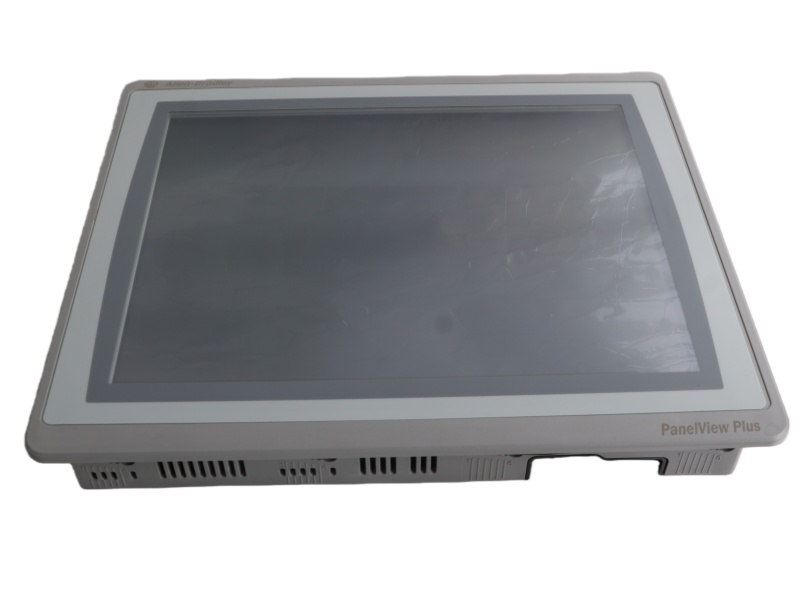

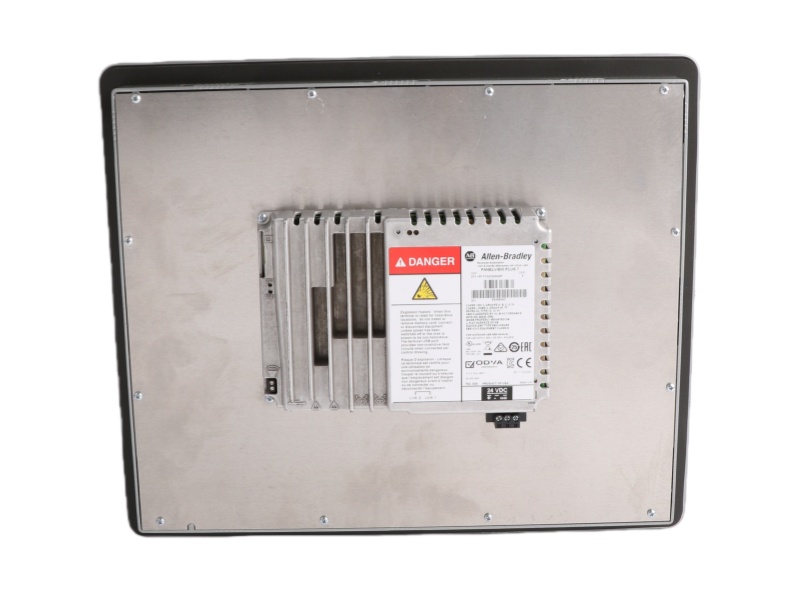

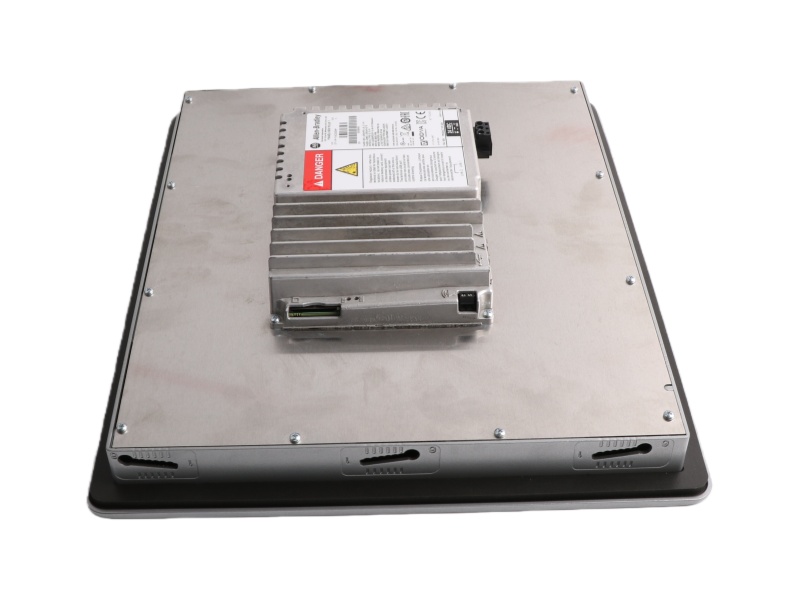

The Allen-Bradley 2711P-T15C21D8S is a PanelView Plus 7 Standard 15-inch widescreen HMI with resistive touch. It features a 1024x768 resolution TFT display, Ethernet/IP connectivity, 24V DC power, and supports up to 200 alarm messages.

Features and Benefits of Allen-Bradley 1794-AENT

• Display: 15-inch widescreen TFT with 1024x768 resolution, 300 cd/m² brightness, and resistive touch input.

• Connectivity: Features 10/100 Mbps Ethernet (RJ45) supporting EtherNet/IP and Device Level Ring (DLR) topology.

• Performance: Equipped with an ARM processor, 512 MB RAM, and supports up to 200 alarm messages.

• Expandability: Includes USB host/device ports and an SD/MMC card slot for data storage and transfer.

FAQ

Q1: What are the key specifications of the Allen-Bradley 2711P-T15C21D8S operator panel?

A1: It features a 15-inch TFT widescreen with 1024x768 resolution, resistive touch, 10/100 Mbps Ethernet, 24V DC power, and supports up to 200 alarm messages.

Q2: What is the maximum number of displays supported by this PanelView Plus 7 model?

A2: It supports multi-display configurations, allowing one controller to manage up to 25 connected displays.

Q3: What communication protocols and network features does it support?

A3: It supports EtherNet/IP with Device Level Ring (DLR) capability and includes IEEE 1588 precision time protocol support.

Q4: What are the memory and storage specifications of this HMI?

A4: It includes 512 MB RAM, 100 MB non-volatile storage, and an SD/MMC card slot for additional memory expansion.

Q5: What is the typical lifespan of the display backlight?

A5: The TFT display backlight has a rated service life of 50,000 hours under normal operating conditions.
