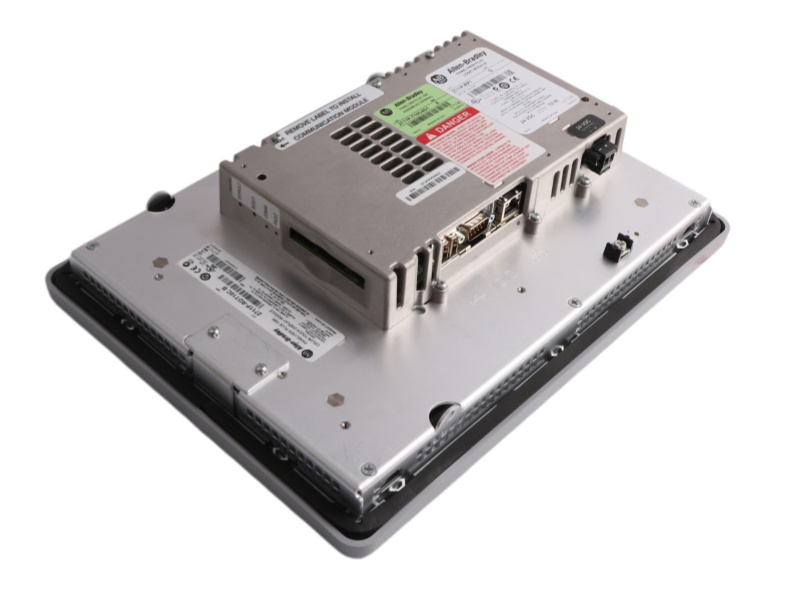

The2711P-T10C4D1 Allen-Bradley Panelview Plus 1000 Operator Terminal is a PanelView Plus 1000 terminal featuring a 10.4-inch color touchscreen. Powered by 18-32VDC, it integrates RS232 and Ethernet ports for versatile industrial operator interface applications.

Technical Data Summary

Display: 10.4-inch color TFT LCD with 640x480 resolution and CCFL backlight (50,000 hours).

Input: Analog resistive touchscreen rated for 1 million presses with 10-110g actuation force.

Power: Requires 18-32VDC external supply.

Memory: 64MB Flash and 64MB RAM internal memory.

Communication: Integrated Ethernet, RS232, DH+, RIO, DH485, and USB ports.

Status: Discontinued product lifecycle status.

FAQ

Q1: What is the primary function of the 2711P-T10C4D1 terminal?

A1: It provides real-time monitoring and control of machines or processes via a user-friendly graphical interface.

Q2: What are the main communication options available?

A2: It features isolated RS232 and Ethernet ports that can be used individually or simultaneously.

Q3: Which Allen-Bradley controllers is this terminal compatible with?

A3: It is compatible with legacy controllers like PLC5 and SLC500, as well as modern ones like CompactLogix and ControlLogix.

Q4: How durable is the touchscreen interface?

A4: The analog resistive touchscreen is rated for up to 1 million actuations with a force of 10-110 grams.

Q5: What power supply is required for operation?

A5: It is powered by an external 24VDC supply voltage.
