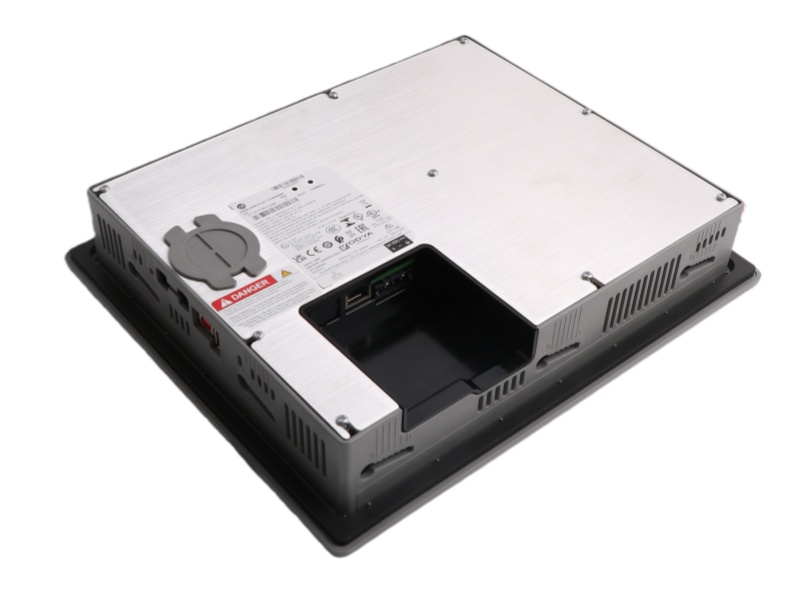

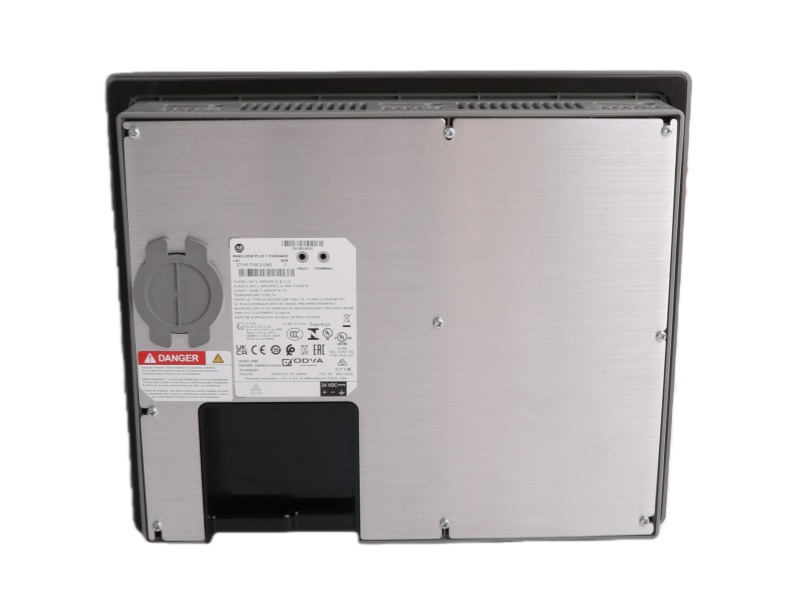

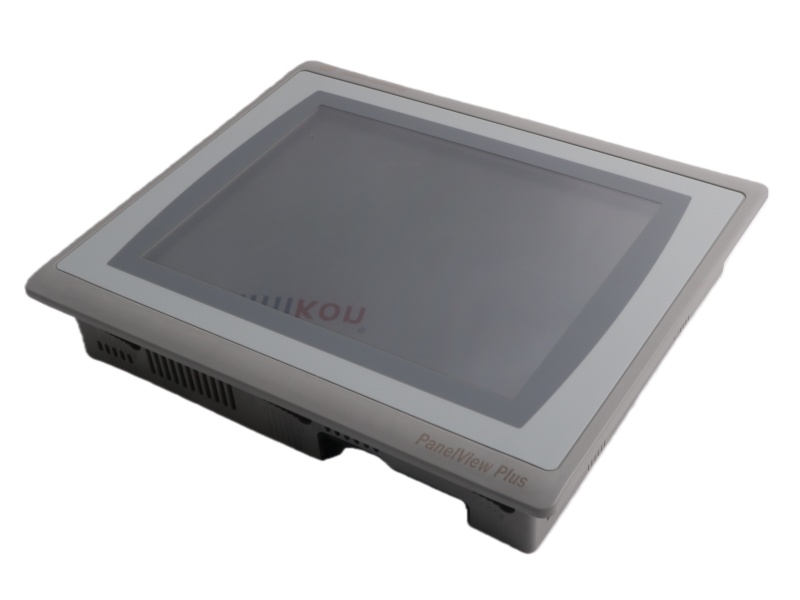

The PanelView Plus 7 AB 2711P-T10C21D8S  is a PanelView Plus 7 1000 operator terminal. It features a 10.4" color touchscreen, powered by 18-30VDC, and includes one Ethernet and two USB communication ports for industrial HMI applications.

Environmental Strength

Robust Temperature Range: Operates from 0 to 55°C and stores from -25 to 70°C.

High Durability: Features IP66 enclosure rating, resistant to dust and powerful water jets.

Rugged Construction: Withstands vibrations with 15G (operational) and 30G (non-operational) shock resistance at 11ms.

Wide Altitude & Humidity: Functions up to 2000m altitude in 5-95% non-condensing humidity.

FAQ

Q1: What are the key display specifications of this PanelView Plus 7 terminal?

A1: It features a 10.4-inch color TFT LCD with 800x600 SVGA resolution, an analog resistive touchscreen, and a 50,000-hour backlight life.

Q2: What communication ports are available on this unit?

A2: The terminal is equipped with one embedded Ethernet port and two USB ports for connectivity.

Q3: What are its memory and storage capabilities?

A3: It has 512 MB RAM, 512 MB storage, and 80 MB of nonvolatile storage, and supports expansion via Secure Digital (SD) cards.

Q4: Is this HMI suitable for remote monitoring?

A4: Yes, as a mobile-enabled unit, it allows for secure remote monitoring and provides real-time notifications via email and texting.

Q5: How durable is this terminal for industrial environments?

A5: It has an IP66 enclosure rating, operates in temperatures from 0 to 55°C, and withstands shocks of up to 15G during operation.
