2198-H015-ERS  Product datasheet

2198-H015-ERS  Functional Description

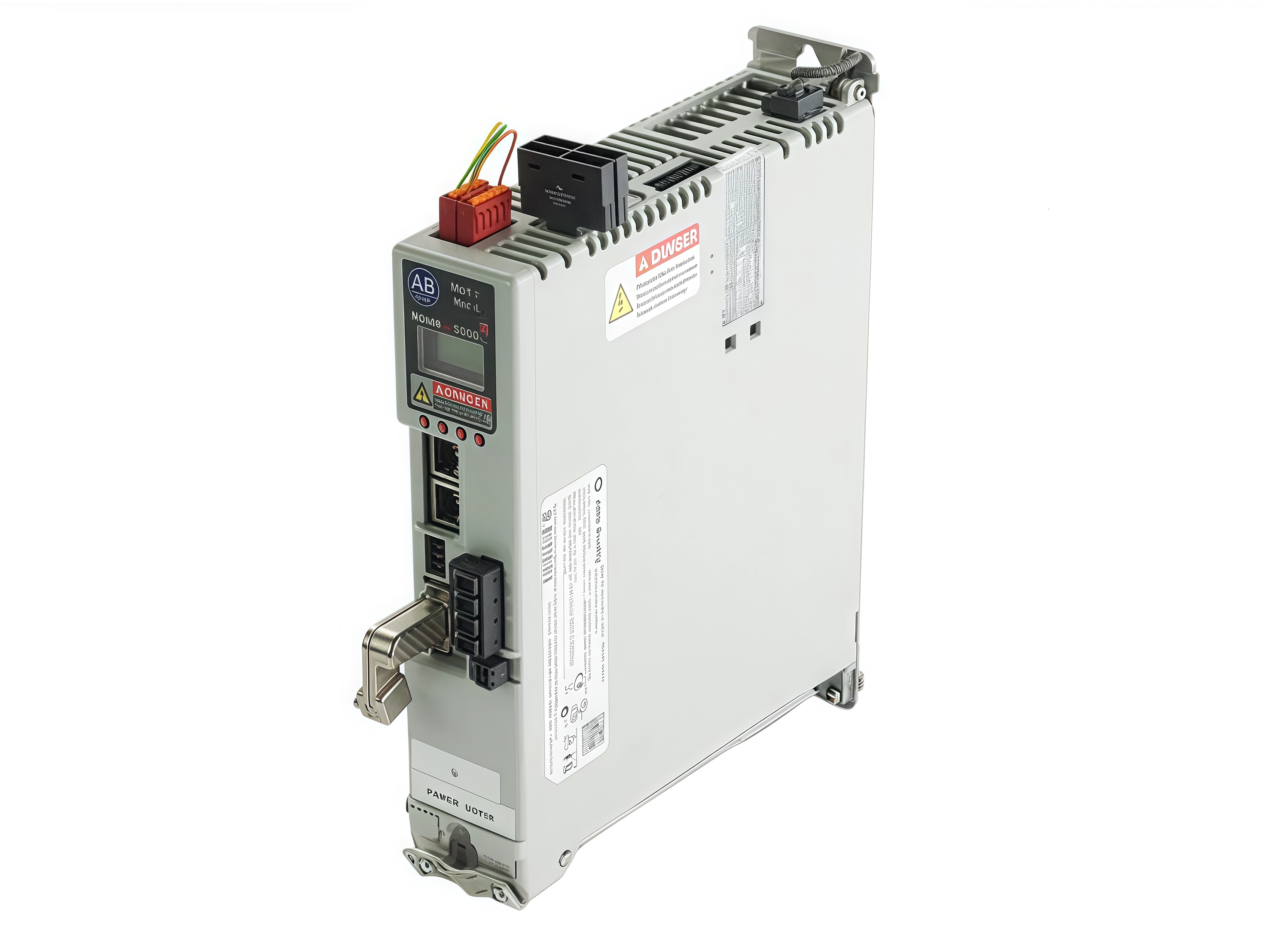

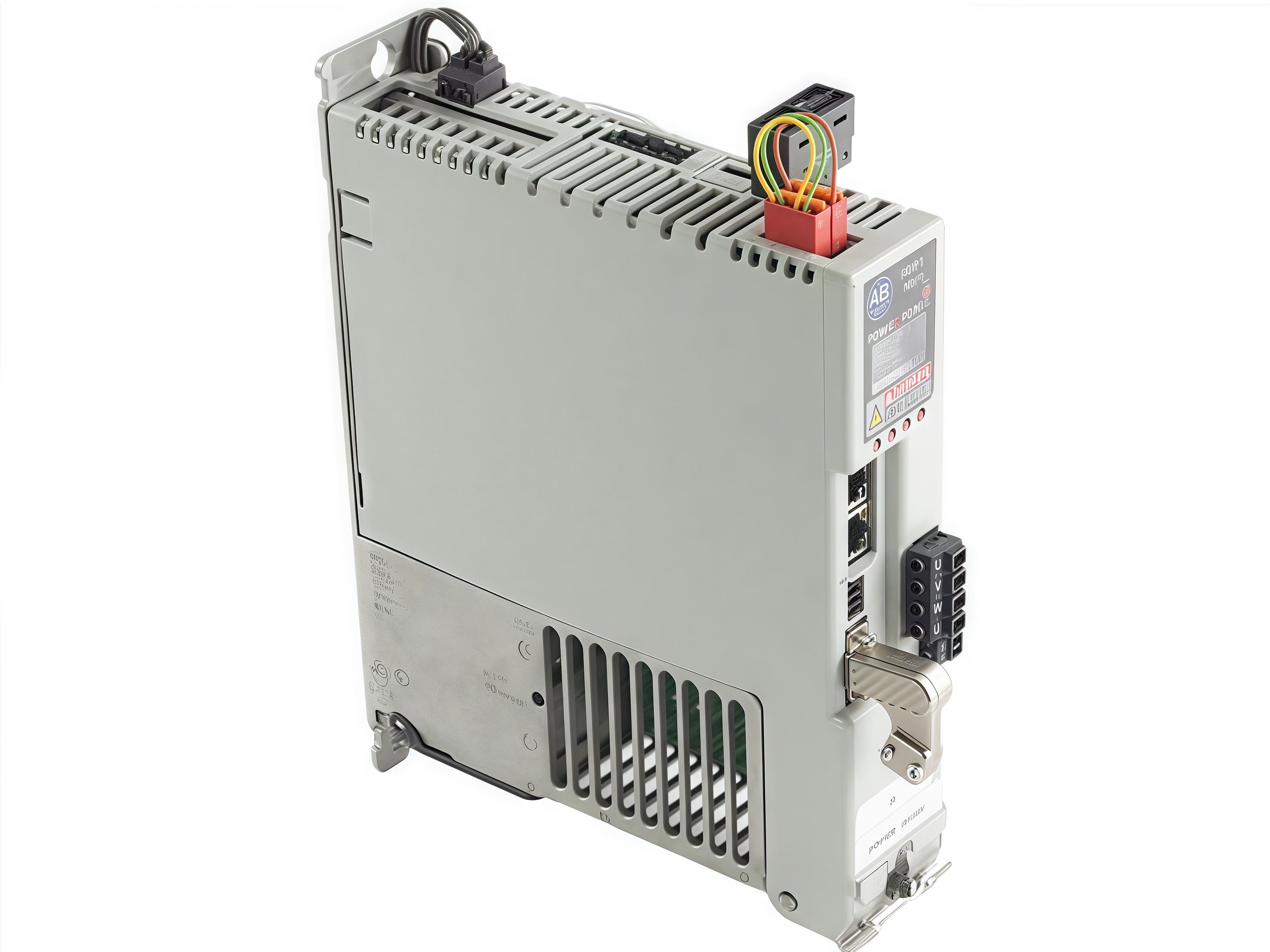

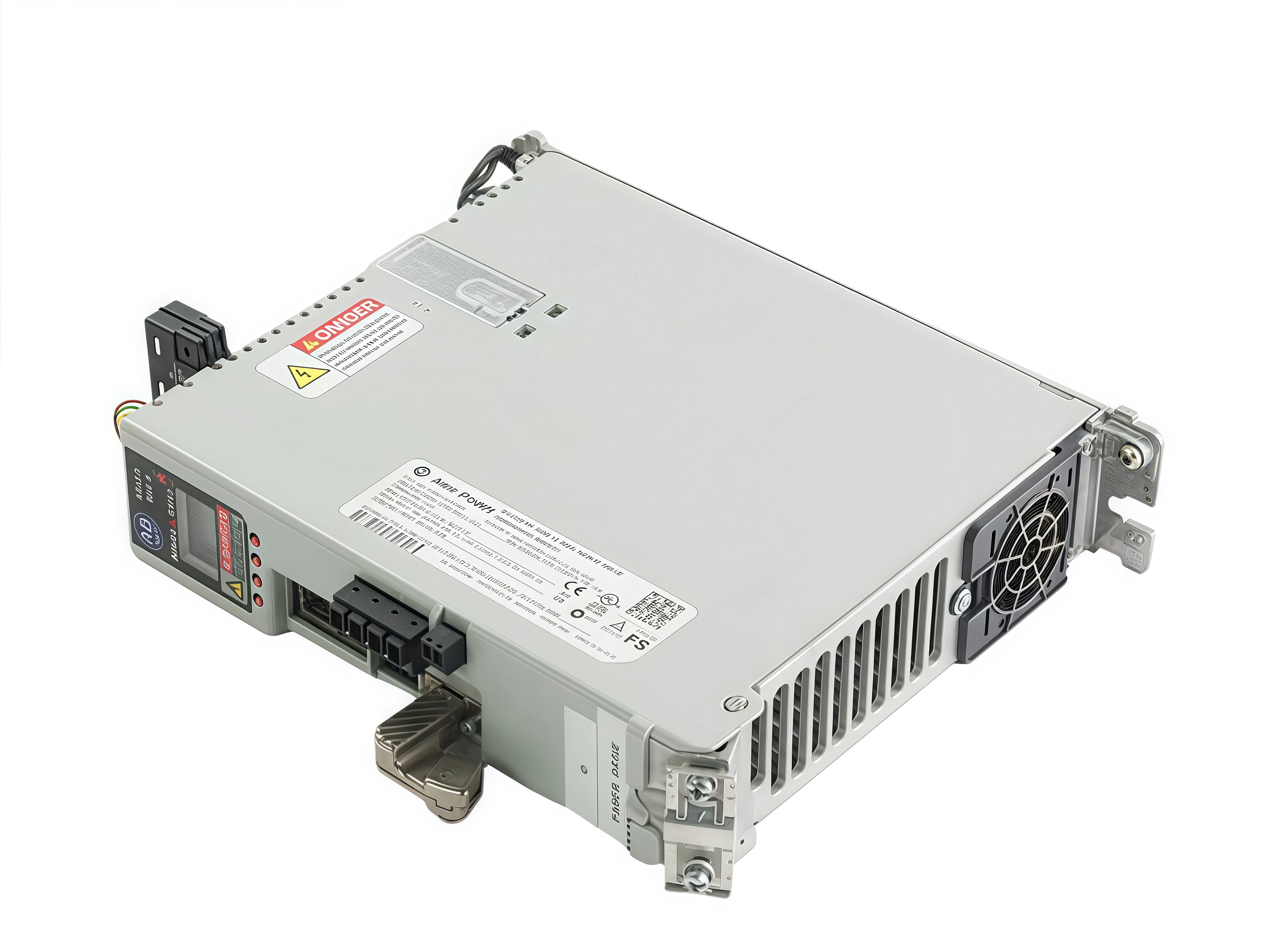

The Allen Bradley 2198-H015-ERS Ser A Kinetix 5500 Servo Drive is a high-performance servo drive from the Kinetix 5500 series, designed for precision motion control in industrial automation. It supports EtherNet/IP communication, enabling integrated safety and motion control over a single network. This drive is compatible with both servo and induction motors, utilizing digital feedback for real-time performance monitoring. With a short-circuit rating of 200,000 A, it ensures reliable operation in demanding environments.

The Rockwell Kinetix 5500 Series Manual 2198-H015-ERS multiple input voltages, including 195-264V (1-phase/3-phase, 240V nominal) and 324-528V (3-phase, 480V nominal). It delivers a continuous output current of 5.0 A (RMS) and a peak output of 12.5 A (RMS), with power ratings up to 3.2 kW in three-phase configurations. Its advanced control features include a 4 kHz PWM frequency, 300 Hz velocity loop, and 1000 Hz current loop for precise motion regulation.

Featuring dual Ethernet ports, the AB 2198-H015-ERS Kinetix 5500 Servo Drive supports linear and Device Level Ring (DLR) topologies, enhancing network flexibility. The 2198-H015-ERS Allen Bradley In Stock compact Frame Size 2 design (2.16" x 8.90" x 10.43") and 5 lb weight make it ideal for space-constrained installations. The drive includes hardwired safety functions, complying with IEC 529, UL, and CE standards for robust protection.

The Servo Drive 2198-H015-ERS Allen Bradley  offers a cost-effective, energy-efficient solution for motion control applications. With its real-time feedback system and seamless integration into Rockwell’s Integrated Architecture, this servo drive ensures high performance, reliability, and ease of deployment in industrial automation systems.
