2094-EN02D-M01-S0 Product datasheet

2094-EN02D-M01-S0 Functional Description

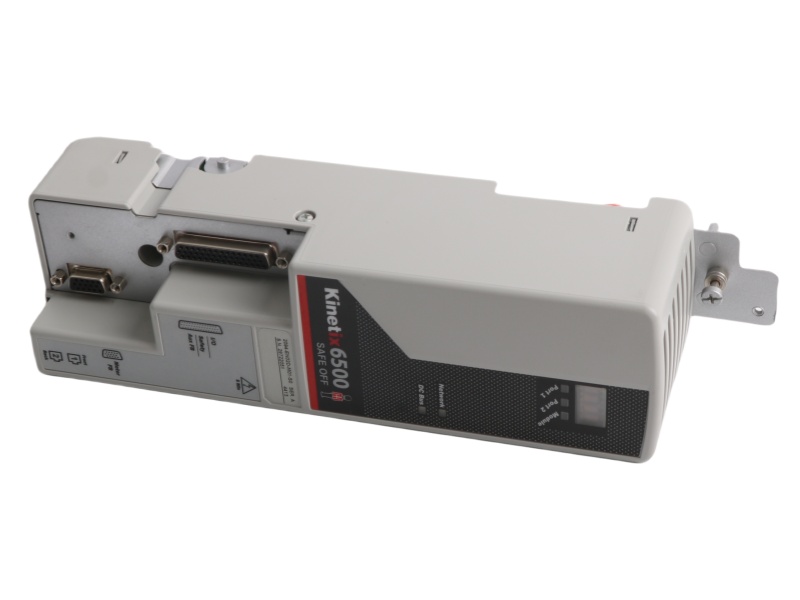

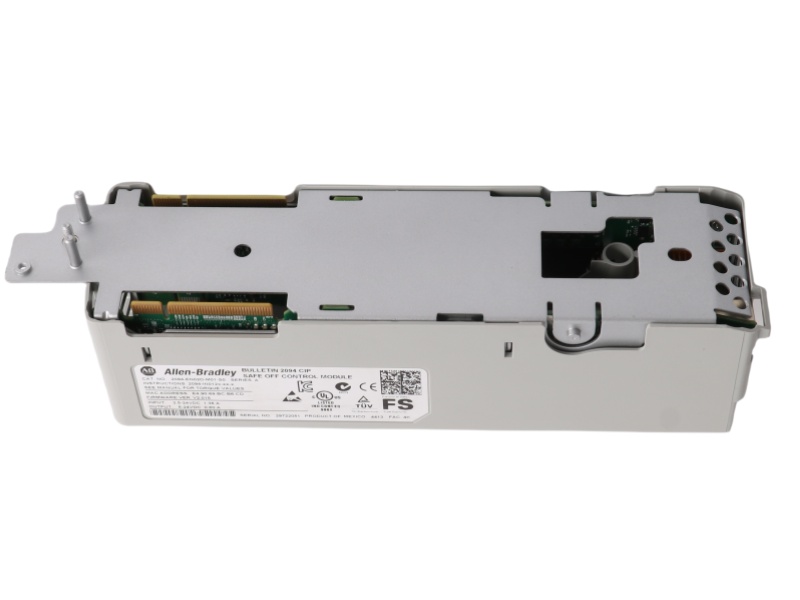

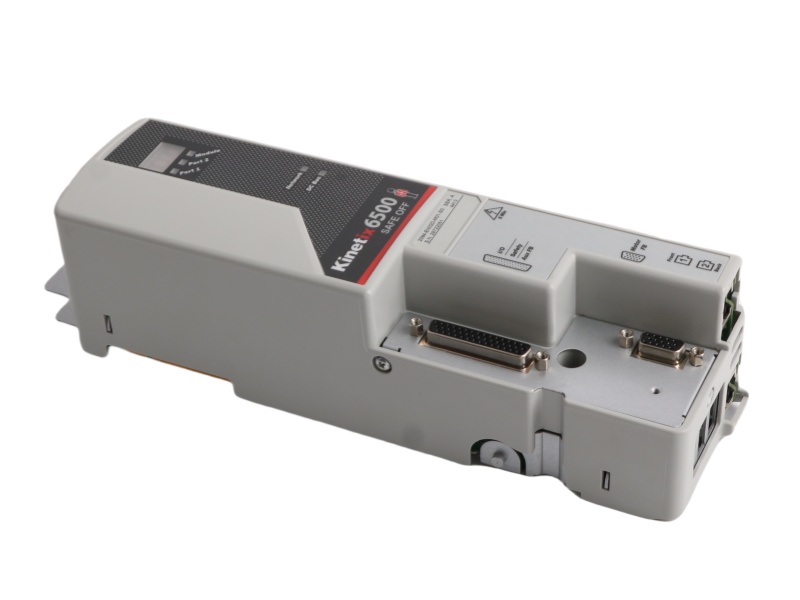

The Rockwell Automation Ethernet/IP Control Module 2094-EN02D-M01-S0 is a multi-axis servo drive control module from the Kinetix 6500 series, designed for precision motion control. It operates with an input voltage range of 2.5–24 VDC and delivers an output of 5–24 VDC at 0.60 amps. Key safety features include Safe Speed Monitor and Safe Torque Off (STO), complying with SIL CL3, PL e, and CAT 4 safety standards. The module supports EtherNet/IP communication via Common Industrial Protocol (CIP) Motion, enabling seamless integration into industrial networks.

As part of theEthernet/IP Safe Torque-Off Control Module 2094-EN02D-M01-S0 Allen Bradley , this module offers dual Ethernet ports for high-speed data exchange and supports CIP Sync for synchronized motion control. It includes multiple status indicators for DC bus, network, module, and port activity, ensuring real-time monitoring. The compact design simplifies wiring and reduces connection complexity, making it ideal for multi-axis applications.

The Allen Bradley 2094-EN02D-M01-S0 Drives is designed for harsh industrial environments, with an operating temperature range of 0–50°C (32–122°F) and vibration resistance up to 500 Hz. It mounts directly onto the Kinetix power rail and works with Integrated Axis Modules (IAM) and Axis Modules (AM). The module also features IOD and MF connectors for motor feedback and auxiliary I/O, enhancing system flexibility.

With its advanced safety and communication capabilities, the AB Kinetix 6500 Safe Control Module  2094-EN02D-M01-S0 is a reliable choice for high-performance motion control. It supports EtherNet/IP networking and complies with international safety standards, ensuring robust operation in demanding applications. The Allen Bradley 2094-EN02D-M01-S0 EtherNet/IP Safe Torque-Off Control Module is a key component in modern automation systems, delivering precision and efficiency.
