2094-BMP5-M Product datasheet

2094-BMP5-M Functional Description

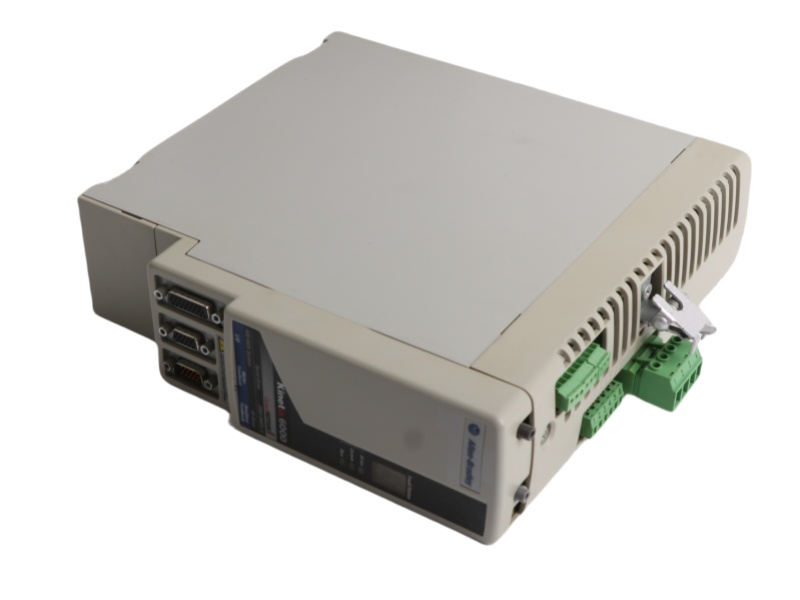

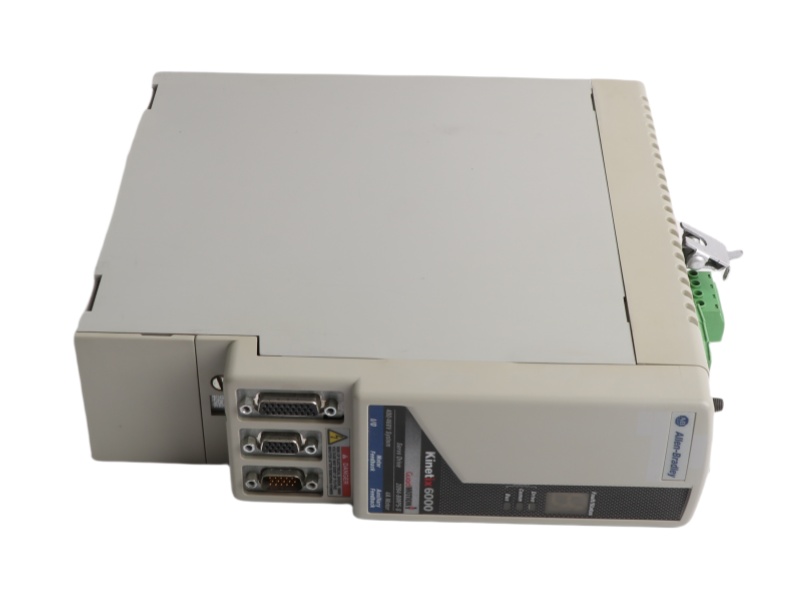

The Allen Bradley 2094-BMP5-M In Stock is a high-performance multi-axis module from the Kinetix 6200 series, designed for advanced motion control applications. This robust servo drive operates with 650VDC bus input and 95-264VAC control voltage, delivering 1.8kW continuous output power through its 0-480VAC 3-phase output. The Allen-Bradley 2094-BMP5-M features impressive current handling with 2.8A RMS continuous (7A peak) and integrates motion control via SERCOS interface when equipped with a SERCON module.

With 500Hz velocity loop and 1300Hz current loop frequencies, the Kinetix 6500 Servo Drive 2094-BMP5-M ensures precise motion control through its 8kHz PWM technology. The module includes critical safety components like a 115Ω internal shunt resistor (805VDC on/765VDC off) and 75μF capacitance (10J absorption). Its front panel features a power-applied LED indicator, while connectivity includes Phoenix-style connectors for motor power (U/V/W), brake (6-pin), and dynamic braking unit.

The PLC Module 2094-BMP5-M Rockwell (measuring 5.5×11.9×14.7 inches, 13lbs) works with Kinetix 6000 systems for easy migration. Its embedded safety suite eliminates external monitoring needs, featuring Safe Torque Off, Safe Speed Monitor, and door monitoring controls. The AB 2094-BMP5-M Power Module simplifies wiring while reducing inventory through its modular design, supporting both SERCOS and EtherNet/IP networks.

Designed for industrial efficiency, the Power Module 2094-BMP5-M Allen Bradley improves productivity with 98% efficiency rating and enhanced diagnostics. Its safety functions - including maximum speed/acceleration monitoring and zero-speed detection - protect personnel during maintenance. The drive's flexible architecture reduces downtime while optimizing energy use in demanding automation environments.
