20AD1P1A3AYNNNC0 Product datasheet

20AD1P1A3AYNNNC0 Functional Description

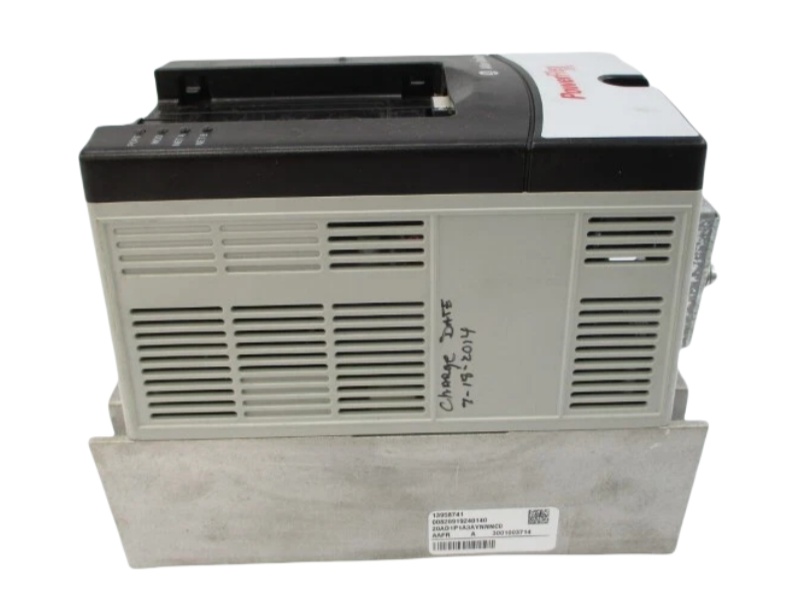

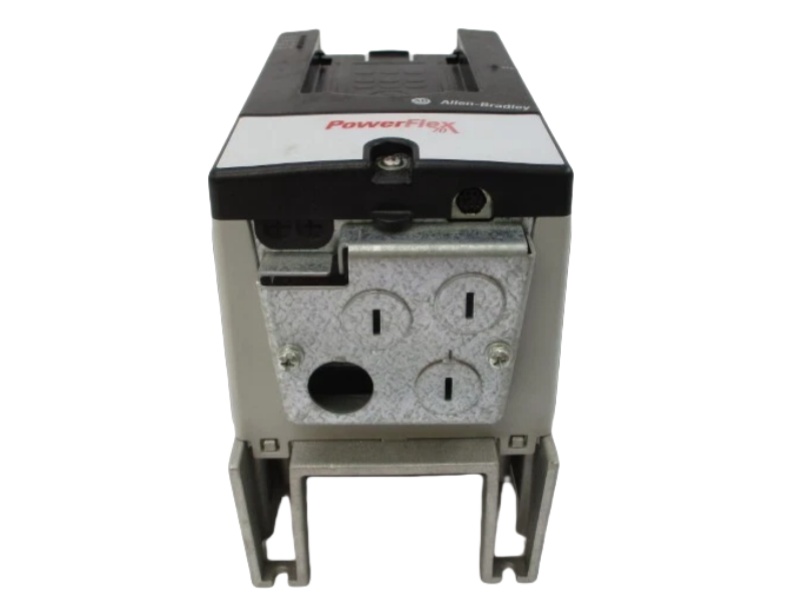

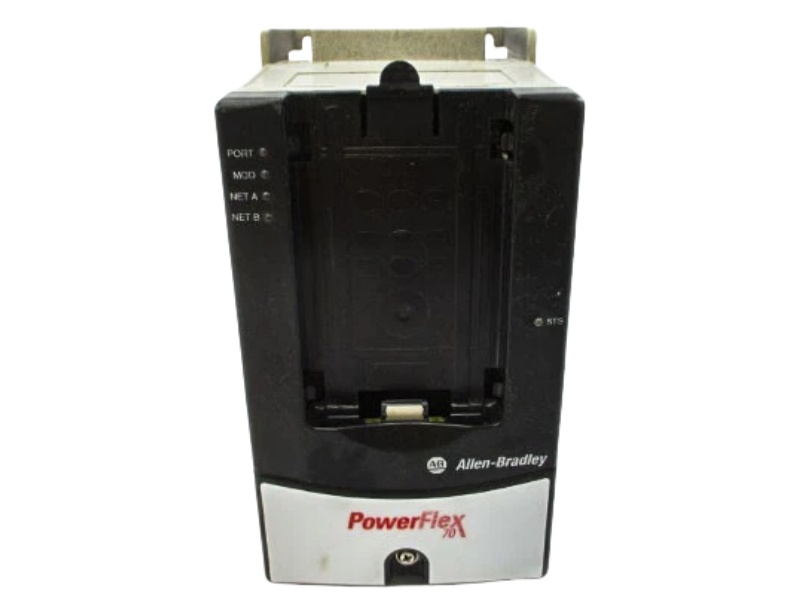

The AC Drive 20AD1P1A3AYNNNC0 ROCKWELL is a PowerFlex 70 AC drive from Series A, designed to deliver precise motor control and enhanced performance. Operating at 0.37 kW with three-phase 480V AC power and a current rating of 1.1 Amps, this Allen-Bradley 20AD1P1A3AYNNNC0 In Stock features a full numeric LCD interface, a built-in brake, and advanced control capabilities. It is housed in a Frame A IP20 panel-mounted enclosure suitable for industrial environments.

The PLC MODULE Allen Bradley 20AD1P1A3AYNNNC0 supports data communication via Datalinks, enabling it to exchange I/O information with controllers efficiently. Equipped with a torque supporter, the drive maintains higher torque when the mechanical load is disconnected, ensuring better control at system speeds. It also includes a point-to-point motion planner that executes precise trapezoidal moves, enhancing its motion control capabilities.

Several tuning filters, such as a low-pass filter, help optimize the performance of the Allen-Bradley 20AD1P1A3AYNNNC0 PowerFlex 70 AC Drive by reducing high-frequency noise. The drive monitors faults arising from internal or external conditions that may impact its operation, offering robust diagnostics and safety features. It can also retain the motor overload count at shutdown for improved maintenance tracking.

The PowerFlex 70 AC Drive 20A AB 20AD1P1A3AYNNNC0 uses a speed reference unit and feedback system to control the motor's torque via proportional-integral control. This ensures the motor runs precisely at the desired speed, providing efficient and reliable performance in various industrial automation applications.
