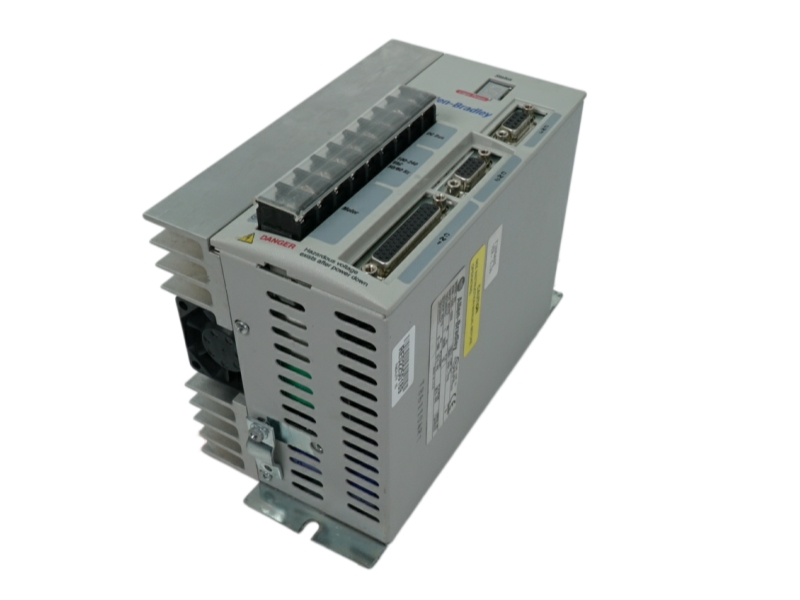

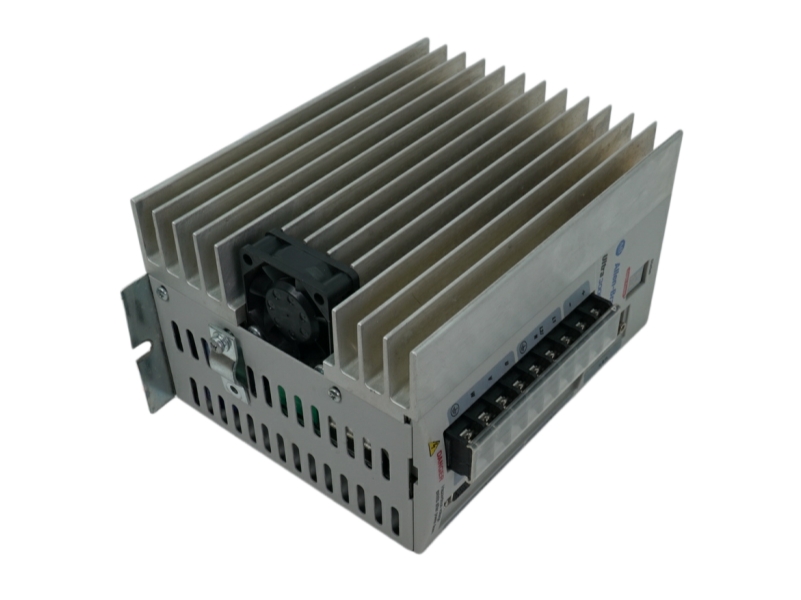

Allen-Bradley 2098-DSD-020X is a high-performance digital servo drive designed for precise motion control, delivering reliable 2 kW output with advanced indexing and PID control for industrial automation systems.
SPECIFICATION
General
- Manufacturer: Rockwell Automation
- Brand: Allen-Bradley
- Series: Ultra 3000
- Model: 2098-DSD-020X
- Status: Discontinued (replacement available)
Electrical
- Input Voltage: 100–240V AC (single-phase)
- Input Frequency: 47–63 Hz
- Nominal Input Current: 18 A
- Output Power: up to 2 kW
- Continuous Output Current: 10 A
- Peak Output Current: 30 A
Control & Performance
- Control Method: Digital PID with feed-forward
- Indexing Capability: Yes
- Feedback Types: Encoder (A/B, Step/Direction, CW/CCW)
- Communication: RS-232 / RS-422 / RS-485
Hardware & I/O
- Digital Inputs: 8 optically isolated
- Digital Outputs: 4 optically isolated
Environmental
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -40°C to 70°C
- Humidity: 5–95% non-condensing
- Shock: 15G
- Vibration: 2.5G
Applications
- Machine tools: Enables precise position and speed control in CNC systems.
- Packaging machinery: Ensures synchronized motion for high-speed packaging lines.
- Automated production lines: Improves efficiency and repeatability in manufacturing.
- Robotics systems: Supports accurate servo motor control for robotic arms.
- Material handling: Enhances conveyor and positioning systems in logistics automation.
