2094-BC04-M03-S Product datasheet

2094-BC04-M03-S Functional Description

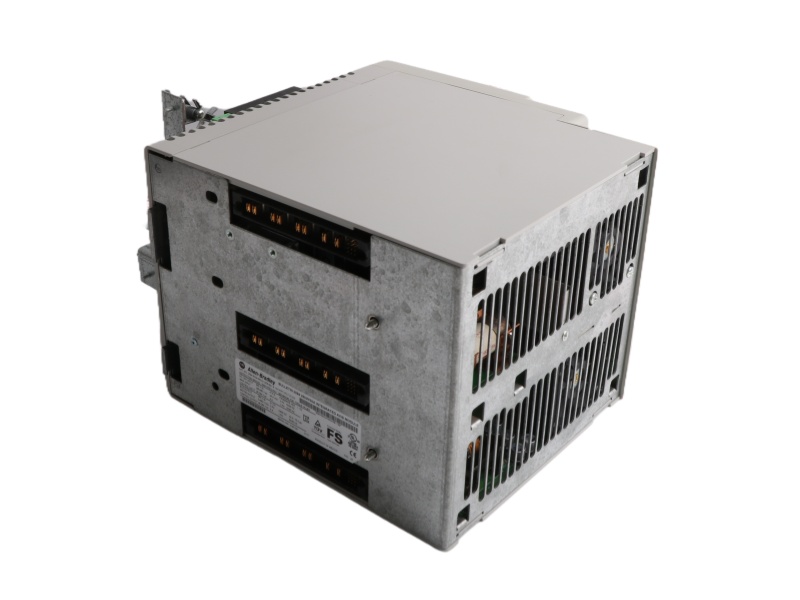

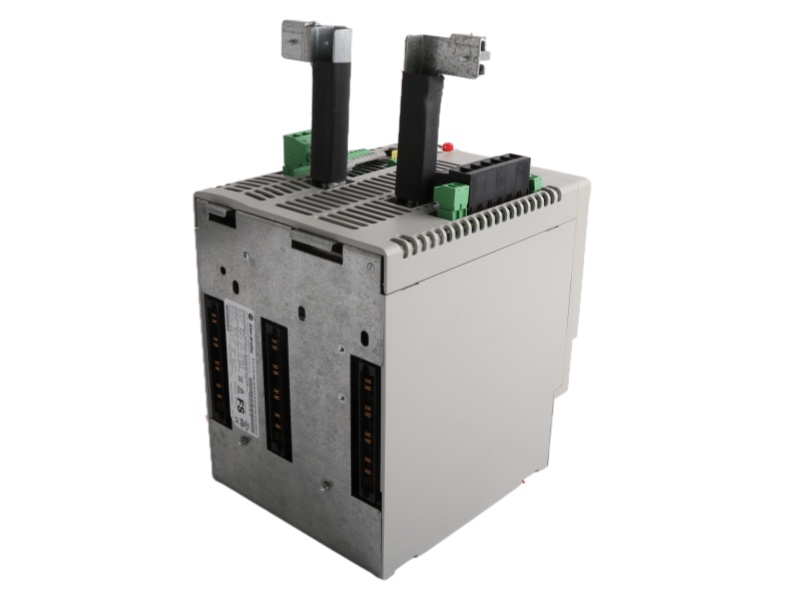

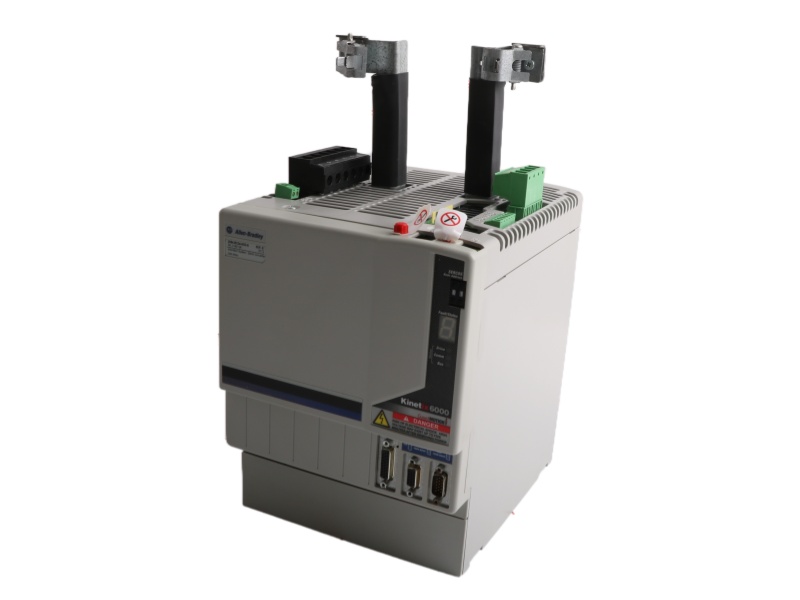

The Integrated Axis Power Module Allen-Bradley 2094-BC04-M03-S is a Kinetix 6000 integrated axis module designed for high-performance motion control. This module functions as both an inverter and converter, with an output rating of 28kW and 30 Amperes, and provides flexible power output ranging from 53W at 20% load to 142W at full capacity. It supports safe torque-off functionality and is suitable for 200V or 400V-class AC input systems.

The Allen-Bradley 2094-BC04-M03-S INTEGRATED AXIS MODULE includes motor power and brake power connectors but requires separate connector kits for feedback and interface signals. Ground jumper configuration is needed for ungrounded or high-impedance systems, with default settings pre-configured for grounded operation. Proper mounting requires placing this module at the leftmost position on the power rail, followed by other system components.

Available in Series A, B, and C, the 2094-BC04-M03-S AB Integrated Axis Module offers varying peak current ratings—150% for Series A and 250% for Series B and C. Its power dissipation ranges from 94W at 20% load to 255W at full load. The Allen-Bradley 2094-BC04-M03-S In stock operates within an input voltage range of 324–528V AC three-phase and supports DC input from 458 to 747 volts.

Designed to deliver a complete Kinetix integrated motion solution, the ROCKWELL Kinetix 6000 Multi-axis Servo Drives 2094-BC04-M03-S is ideal for demanding motor and actuator applications, offering reliability and precision in industrial automation environments.
