1769-OB32 Product datasheet
|
Model number: |
1769-OB32 |
|
Module Type： |
Machine Control |
|
Manufacture: |
Allen-Bradley |
|
Condition： |
Brand New |
|
Range of Product: |
Allen-Bradley |
|
Lead time： |
In Stock |
|
Weight: |
0.9kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.5x13x14.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Jane 30,2016 |
|
Communication Service: |
Ethernet router |
1769-OB32 Functional Description

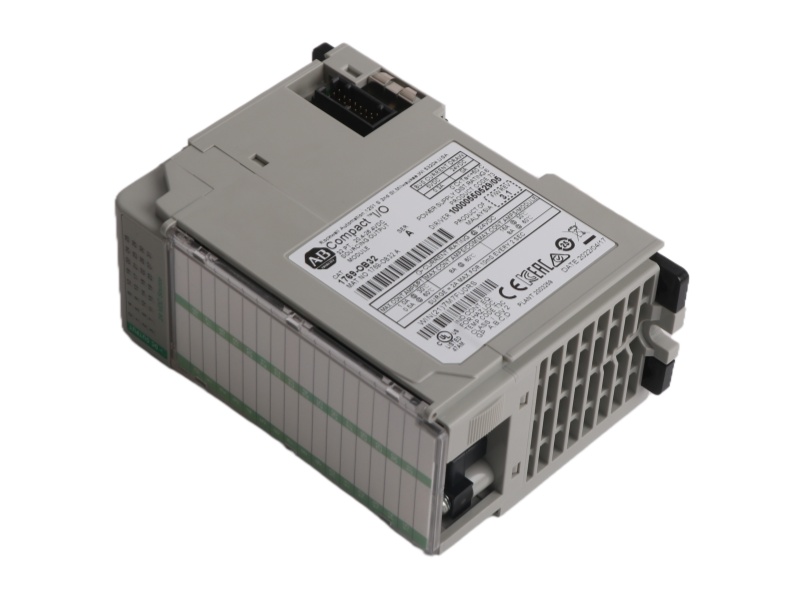

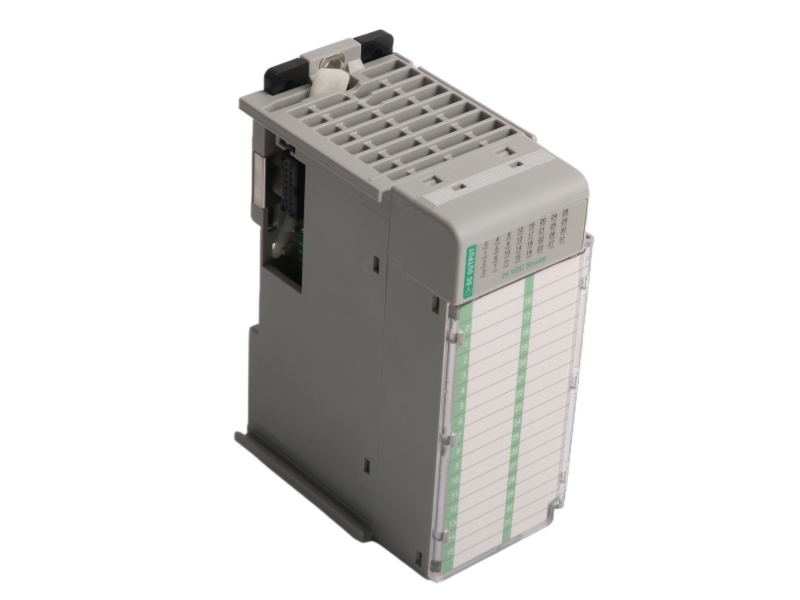

The 1769 Series Allen-Bradley PLC I/O Module 1769-OB32 is a high-density 32-point DC sourcing output module designed for CompactLogix and MicroLogix 1500 systems. It features two isolated groups of 16 outputs, making it ideal for applications requiring numerous outputs in limited space. This Machine Control 1769-OB32 Allen-Bradley operates within a voltage range of 20.4–26.4V DC with a maximum current of 0.5A per point.
Each channel offers fast switching, with an ON delay of 0.5ms and an OFF delay of 4ms. The AB 1769-OB32 24VDC Output Module supports both solid (14-22 AWG) and stranded (16-22 AWG) copper wiring, and requires proper alignment during installation for reliable backplane connection.
With a power supply distance rating of six modules, the ROCKWELL 1769-OB32 CompactLogix controllers and MicroLogix 1500 controllers ensures stable performance when installed within the specified distance from the power source. It dissipates up to 4.5W of heat and operates effectively in temperatures up to 60°C.
Weighing 450g, this AB 32-point Compact I/O digital sourcing output module 1769-OB32 is built for industrial durability and includes reinforced insulation for enhanced safety in demanding automation environments.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
