2094-BC01-M01-S Product datasheet

2094-BC01-M01-S Functional Description

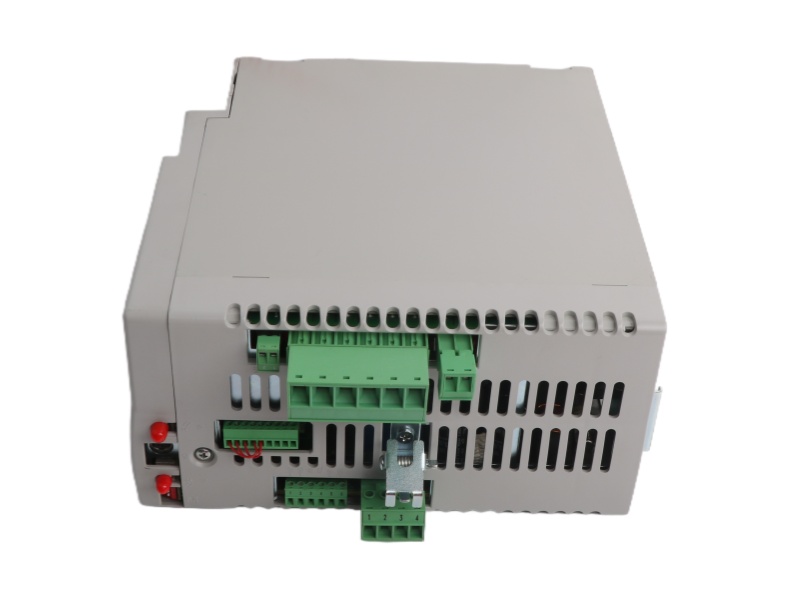

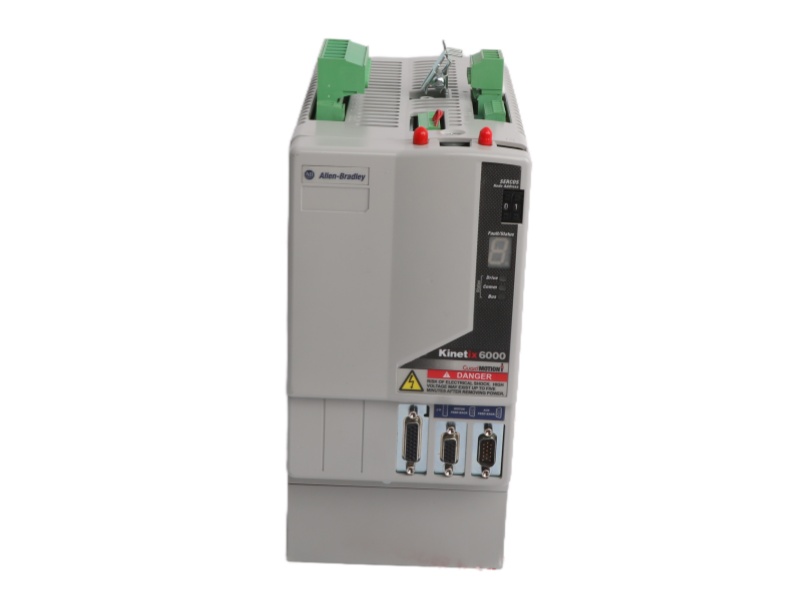

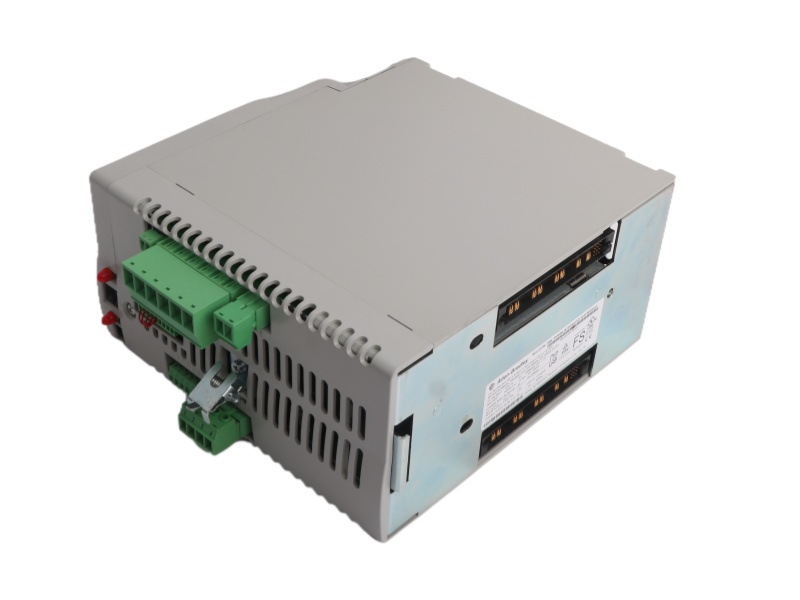

The 2094-BC01-M01-S INTEGRATED AXIS MODULE Allen-Bradley is a Kinetix 6000 multi-axis integrated power module featuring a built-in Safe Torque Off (STO) function. This 2094-BC01-M01-S SERVO DRIVE Allen-Bradley combines an inverter and converter section, delivering 9A inverter power and 6kW converter power with a total wattage of 3.9kW. Designed for 400V-class systems, it operates at 460V AC with a frequency range of 47–63 Hz and accepts input voltages from 360 to 480V AC.

The Integrated Axis Module Allen-Bradley 2094-BC01-M01-S supports a wide variety of compatible motors including Kinetix MP, TL/TLY, RDB, 1326AB, F-Series, and linear actuators such as LDAT series. It processes feedback signals from servo motors and integrates seamlessly with both Kinetix and non-Kinetix drives. Communication is facilitated through a SERCOS interface, allowing connection via fiber optic media in linear or ring topologies for noise-resistant, high-speed data exchange.

Safety is a key aspect of the 2094 BC01 M01 S Kinetix 6000 multi-axis integrated power module AB, which offers STO functionality certified to ISO 13849-1 PLe/SIL3. This feature prevents unintended restart after a safety trip, ensuring operational safety. For applications requiring EN954-1 Category 3 compliance, an external safety relay can be incorporated.

Capable of delivering up to 250% of continuous rated torque, the ROCKWELL Kinetix 6000 Multi-axis Servo Drives 2094-BC01-M01-S enables potential downsizing of power supplies and axis modules. It is mounted via a power rail and provides a fully integrated motion solution for drives, motors, and actuators in industrial automation environments.
