The Allen-Bradley 1783-CMS10DP Stratix 5200 Managed Industrial Ethernet Switch is a Compact Managed Industrial Ethernet Switch designed for robust Layer 2 networking. It features 8 x 10/100 Mbps ports and 2 x combo ports (RJ45/SFP), supports IEEE 1588 PTP and ODVA CIP Security, and offers DIN-rail mounting with an IP30 rating for industrial environments.

Key Features

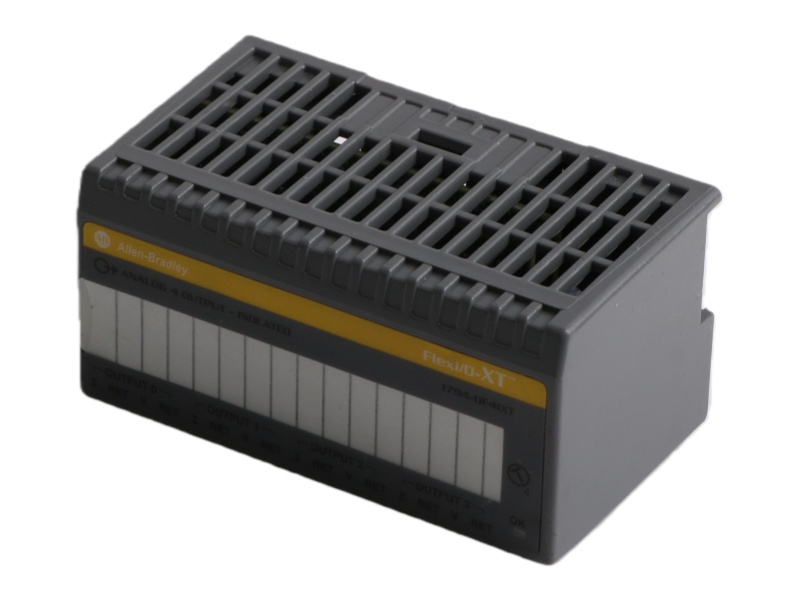

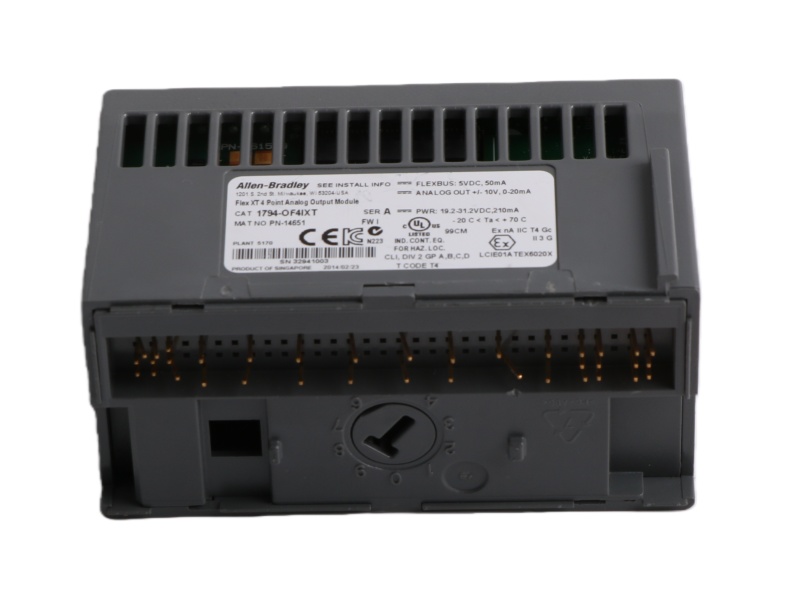

Function: 4-channel isolated analog output module for FLEX I/O systems.

Output Ranges: Configurable voltage (±10V/±5V/0-10V/0-5V) and current (4-20mA/0-20mA).

Performance: High 15-bit+sign resolution; fast 2.5/5 ms update rate.

Compatibility: Works with multiple 1794 terminal bases (e.g., TB3, TBN).

Installation: DIN rail or panel mount; 24V DC power (19.2-31.2V range).

FAQ

Q1: What is the 1794-OF4I?

A1: It is a FLEX I/O analog output module with four isolated channels.

Q2: What outputs can it provide?

A2: It provides configurable voltage (±10V/0-10V) and current (4-20mA/0-20mA) outputs.

Q3: How fast is its update rate?

A3: It supports fast 2.5 ms or 5.0 ms update rates per channel.

Q4: What is its power requirement?

A4: It operates on 24V DC power (19.2-31.2V range).

Q5: How is it installed?

A5: It mounts on DIN rail or panel and connects to 1794 series terminal bases.
