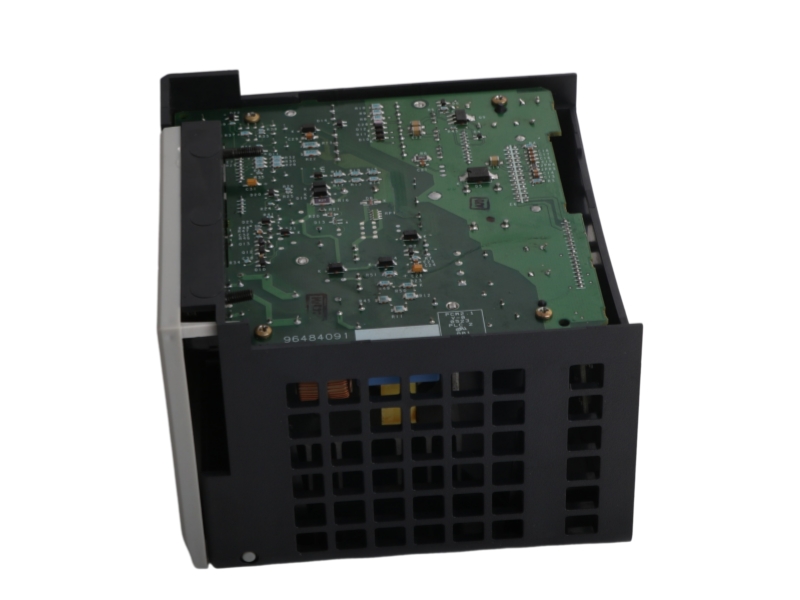

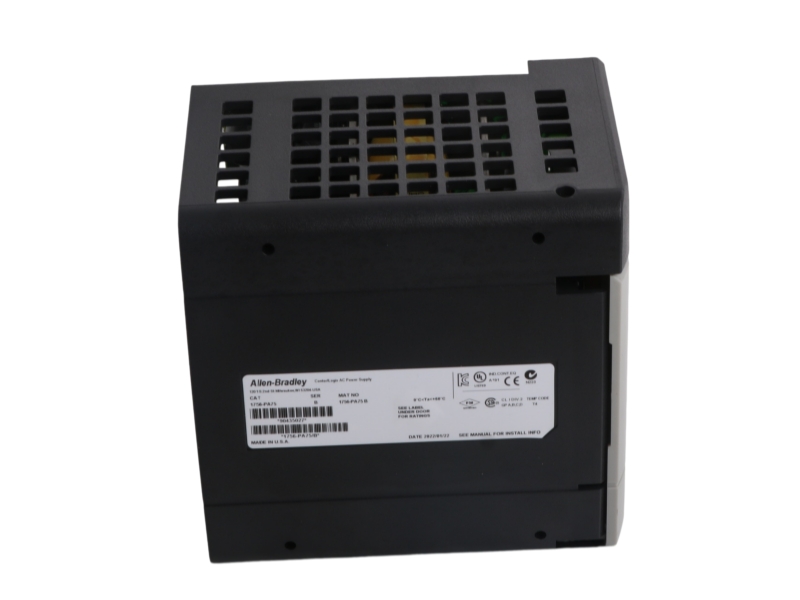

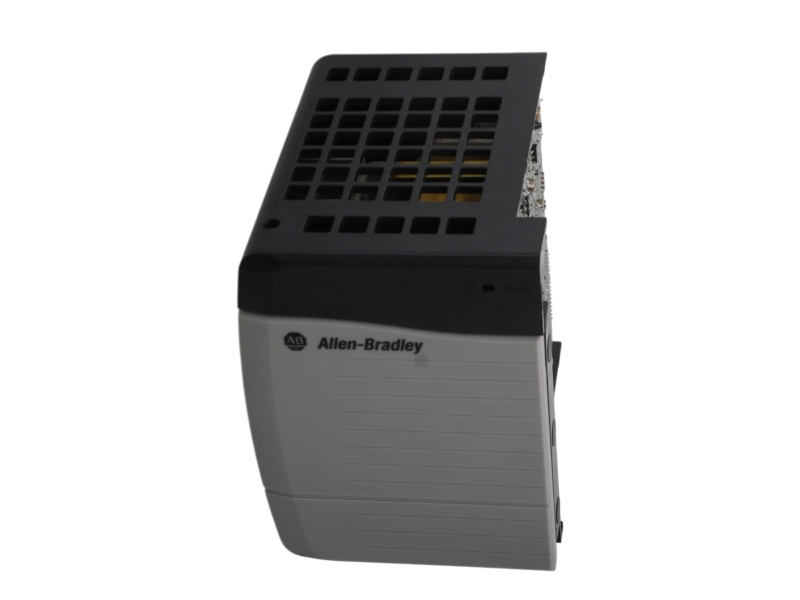

Allen-Bradley 1756-PA75/B ControlLogix AC Power Supply
Allen-Bradley 1756-PA75/B is a Series B ControlLogix standard AC power supply for mounting on the left side of a compatible 1756 chassis. Rockwell Automation specifies an 85–265 VAC input range at 47–63 Hz and a maximum combined backplane output of 75 W from 0 to 60 °C. The supply provides current for the 1.2 V, 3.3 V, 5.1 V and 24 V backplane rails, including 13 A at 5.1 V. Rockwell lists the 1756-PA75 lifecycle status as Active. Replacement planning should verify the complete catalog number, Series B revision, chassis series, input circuit, grounding, wiring, load calculation and environmental limits.
| Field | Verified Information |
|---|---|
| Product Condition | Original new |
| Availability | In stock |
| Official Lifecycle | Active |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
| Field | Verified Information |
|---|---|
| Manufacturer | Rockwell Automation / Allen-Bradley |
| Complete Part Number | 1756-PA75/B |
| Product Type | ControlLogix standard AC power supply |
| Series | B |
| Input Voltage Range | 85–265 V AC |
| Nominal Input Voltage | 120/240 V AC |
| Input Frequency | 47–63 Hz |
| Maximum Input Power | 100 VA / 100 W |
| Maximum Output Power | 75 W at 0–60 °C |
| Current Capacity at 1.2 V DC | 1.5 A |
| Current Capacity at 3.3 V DC | 4 A |
| Current Capacity at 5.1 V DC | 13 A |
| Current Capacity at 24 V DC | 2.8 A |
| Module Location | Left side of the 1756 chassis |
| Compatible Chassis | 1756-A4, 1756-A7, 1756-A10, 1756-A13 and 1756-A17 |
| Chassis Series Compatibility | Series B and Series C |
| Approximate Dimensions | 14.0 x 11.2 x 14.5 cm |
| Approximate Weight | 0.95 kg |
| Operating Temperature | 0 to 60 °C |
| Country of Origin | USA |
| Application Area | Product-Specific Guidance |
|---|---|
| Applicable System | Allen-Bradley ControlLogix 1756 chassis systems |
| System Role | AC input supply for ControlLogix backplane power |
| Mounting Position | Left side of the compatible 1756 chassis |
| Typical Applications | Controller racks, distributed control panels and machine automation systems |
| Maintenance Use | Exact Series B replacement after chassis and load verification |
| Configuration Importance | Catalog suffix, chassis series, input circuit, grounding and total backplane load must be checked |
Rockwell Automation lists the 1756-PA75 lifecycle status as Active. The /B suffix identifies Series B and must be retained during procurement. Active status does not guarantee direct interchangeability with every chassis or load. Verify the complete catalog number, chassis series, input circuit, grounding, terminal condition, environmental limits and calculated backplane current before replacement.
