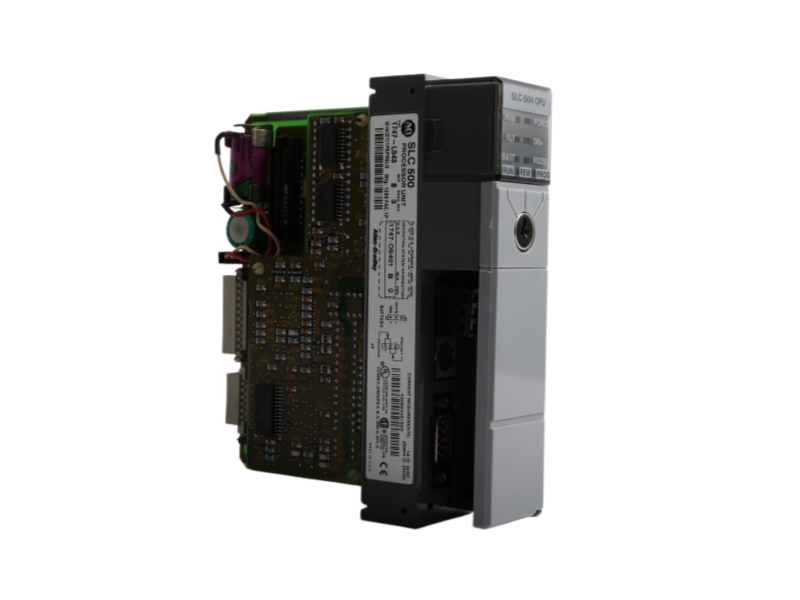

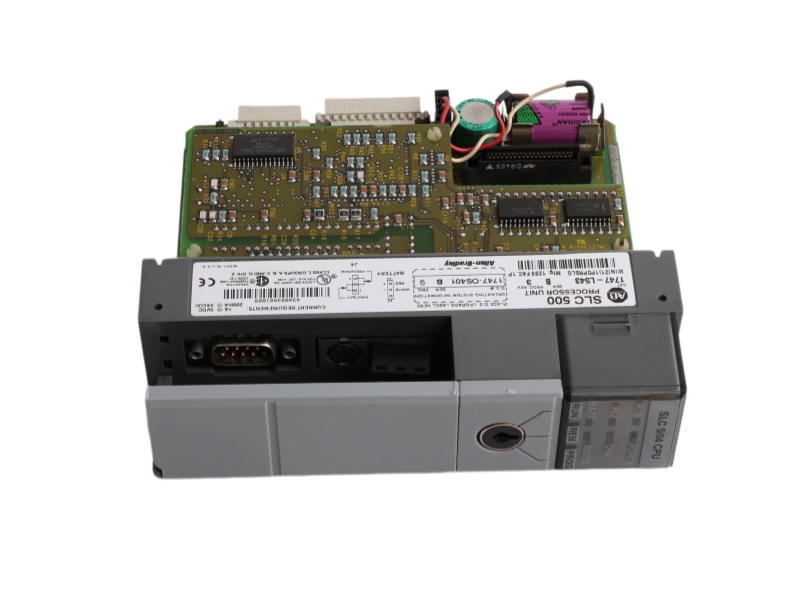

Allen-Bradley 1747-L543 is an SLC 5/04 modular processor featuring 64K memory, Ethernet-ready communication options, high reliability, and robust industrial certification for demanding automation and control applications.
Features and benefits
-
-
High Memory Capacity: 64K user memory enables complex control programs and efficient data handling for industrial automation tasks.
-
Fast Processing Performance: 0.9 ms/K scan time ensures responsive and stable real-time control operations.
-
Strong Communication Capability: Supports DH+, RS-232, and Ethernet options for flexible industrial networking.
-
Large I/O Support: Handles up to 4096 discrete inputs and outputs for scalable system integration.
-
Robust Industrial Reliability: Designed for 0–60°C operation with 30G shock resistance and strong vibration tolerance.
-
Flexible System Architecture: Supports 3 chassis and up to 30 slots, enabling modular and expandable system design.
-
-
-
Fast Bit-Level Execution: Supports 0.37 µs Boolean (XIC) execution, enabling ultra-precise high-resolution logic response in control loops.
-
High Scan Resolution Performance: Typical scan time of ~0.9 ms/K ensures fine-granularity processing for real-time measurement tasks.
-
Accurate I/O Cycle Timing: 0.225 ms I/O scan time provides high-resolution sampling of input/output state changes.
-
Deterministic Control Updates: Consistent scan behavior improves measurement repeatability in high-speed industrial applications.
-
High-Speed Data Processing: 64K memory architecture supports large-scale, high-resolution data acquisition and processing.
-
Precision Communication Handling: Stable DH+ and RS-232 communication ensures synchronized, low-latency measurement data transfer.
-
