1715-OB8DE Product datasheet

1715-OB8DE Functional Description

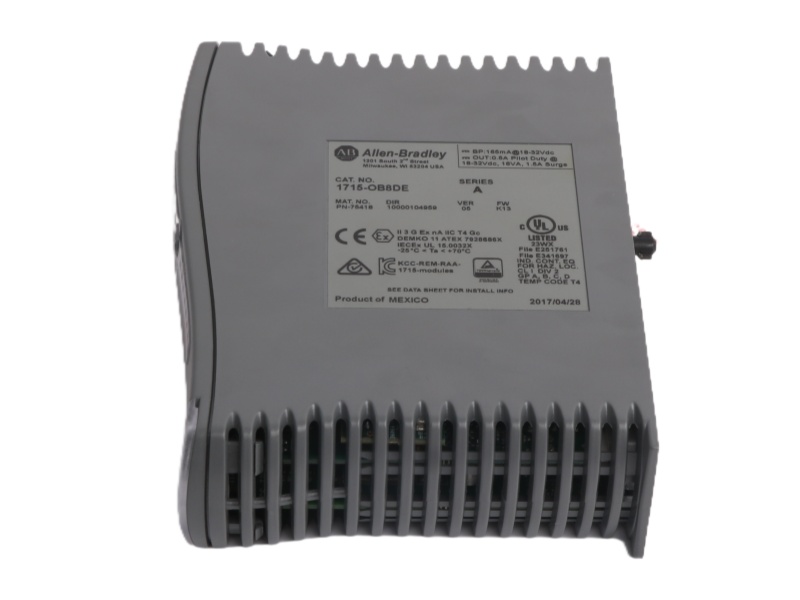

The Digital Output Module Allen Bradley 1715-OB8DE is an 8-point DC digital output module designed for redundant I/O applications in demanding industrial environments. It operates within a voltage range of 18 to 32 VDC and delivers up to 1 amp per point, ensuring reliable performance in control systems. With a maximum power dissipation of 3.0 W for the system and 0.17 W per field loop, it provides efficient energy use while maintaining stability.

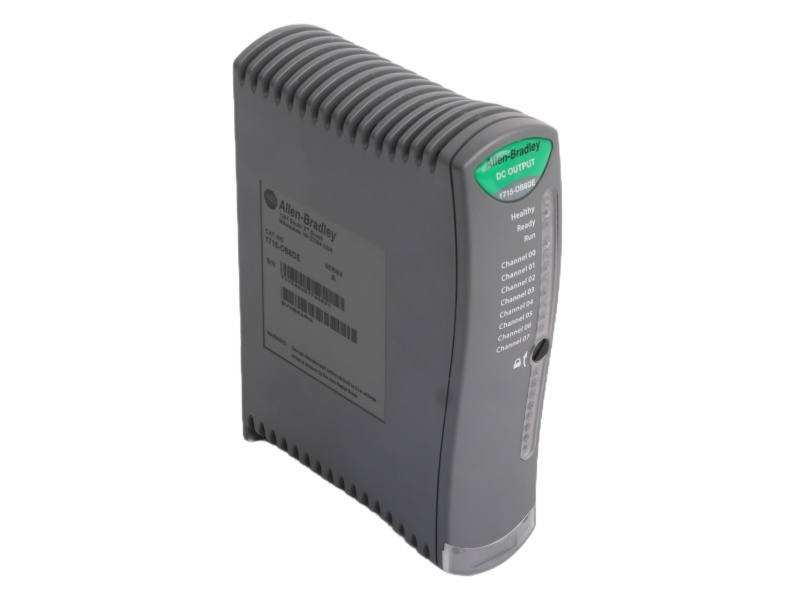

This ALLEN BRADLEY 1715-OB8DE 1715 8 Point Digital Output Module supports DIN rail mounting in open-style enclosures and is classified with IP20 protection. The 1715-OB8DE Machine Control AB features diagnostic capabilities with a built-in health and status display, helping operators monitor system conditions. It also incorporates surge transient immunity and current sourcing output type for dependable operation under varying industrial conditions.

Weighing approximately 290 grams, the 1715-OB8DE Allen Bradley Redundant I/O System measures 166 x 42 x 118 mm and supports wiring with 18 to 16 AWG copper conductors rated at 85°C or greater. It withstands vibration levels up to 2 g and shock ratings up to 50 g when uninstalled, ensuring durability in harsh environments. The operating temperature range extends from -25°C to +70°C, making it suitable for a wide range of applications.

The ROCKWELL Digital 8 Point Digital Output Module 1715-OB8DE is a versatile redundant I/O module that combines robust design with precise control. Its reliable performance, compact size, and fault-tolerant architecture make it a strong choice for industries seeking dependable automation solutions.
