22B-D4P0N104 Product datasheet

22B-D4P0N104 Functional Description

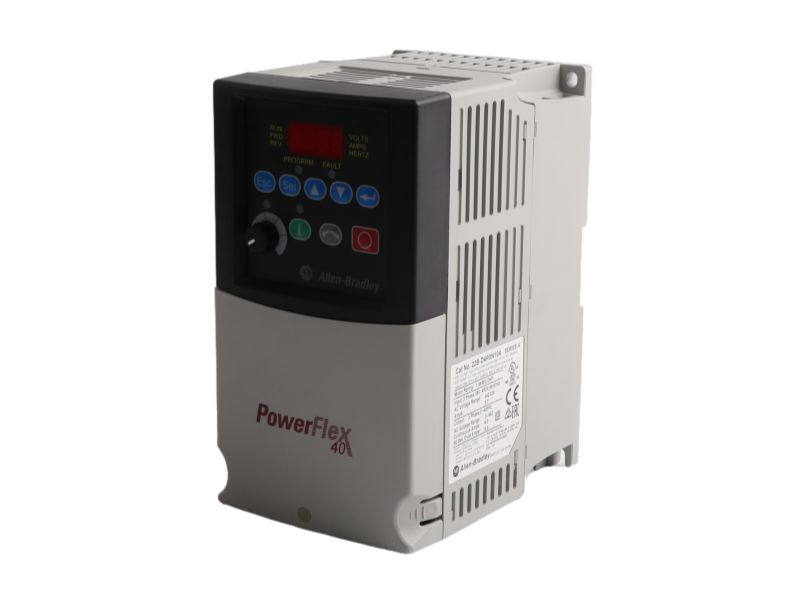

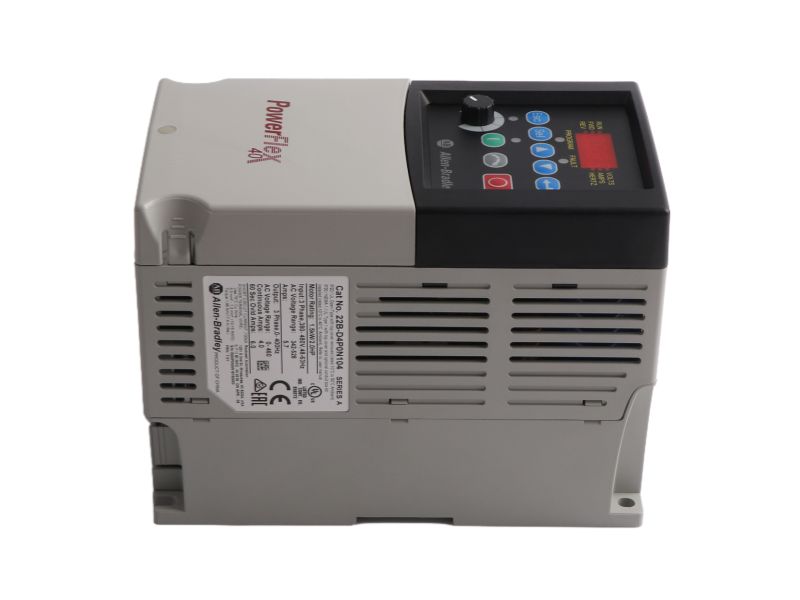

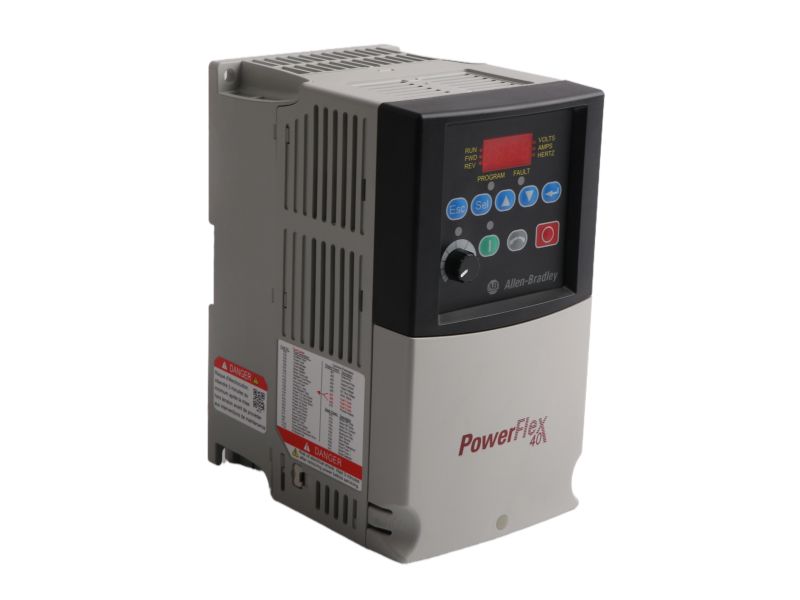

The ALLEN BRADLEY Inverter Drive 22B-D4P0N104 is a PowerFlex 40 series AC drive designed for sensorless vector control, providing high-starting torque and precise speed regulation across its operating range. It supports motors up to 1.5 kW (2 HP) and is ideal for applications with varying loads such as conveying and lifting systems. This PowerFlex 40 AC Drive 22B-D4P0N104 unit operates on a 342–528V AC three-phase supply and delivers a continuous output of 4.0 Amps and 0–460V AC.

With an open-type enclosure rated IP20, the 22B-D4P0N104 Drives ALLEN BRADLEY is suitable for panel mounting and includes integrated cooling to maintain reliable performance. It features built-in PID control, allowing it to function as a standalone controller for automated process adjustments. Communication capabilities include an embedded RS485 port, with support for optional modules such as DeviceNet or Ethernet/IP.

The 22B-D4P0N104 Drives ALLEN BRADLEY offers advanced logic and timing functions, including a programmable timer, counter, and step logic, helping to simplify control architectures and reduce hardware costs. Its autotune feature optimizes motor performance by automatically configuring flux current and IR compensation, ensuring accurate sensorless vector operation.

Operators can interact with the ROCKWELL 22B-D4P0N104 PowerFlex 40 AC Drive via a fixed keypad for parameter adjustment and monitoring. Designed for 480V AC three-phase systems, this drive requires installation in a clean, non-corrosive environment to maximize service life and operational safety.
