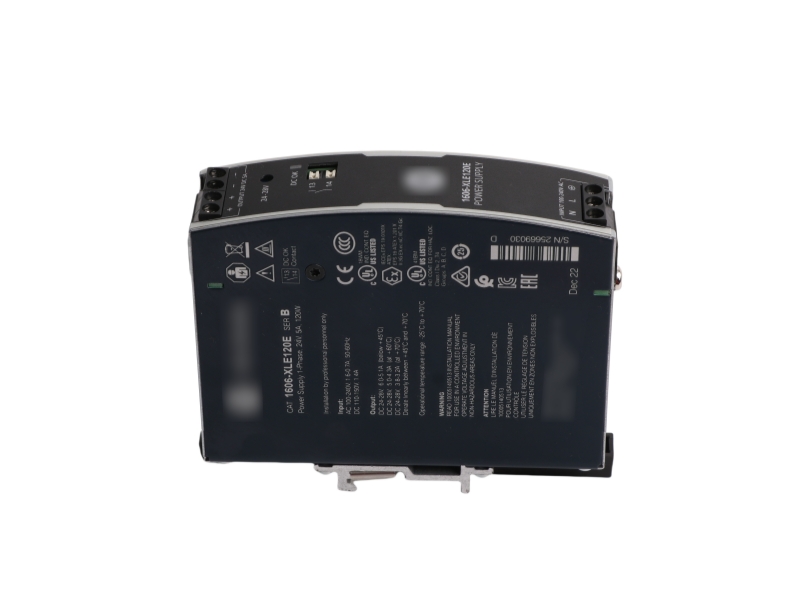

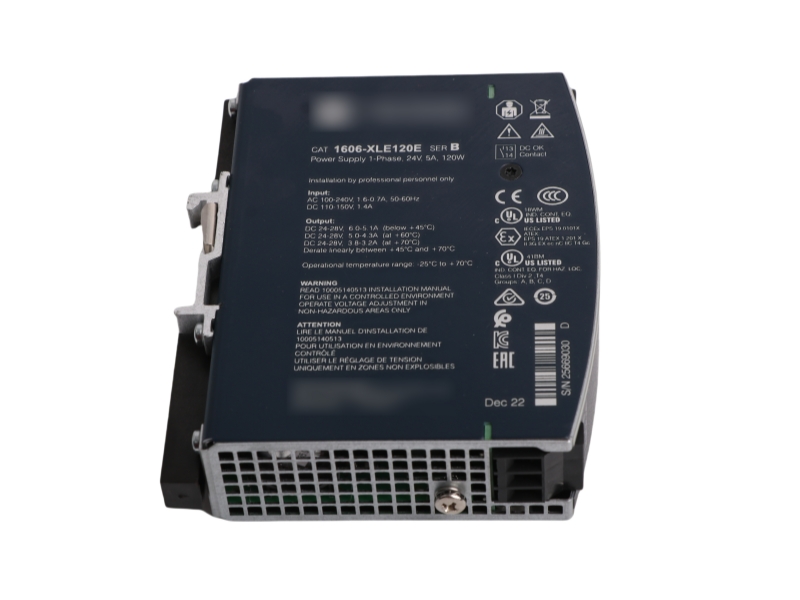

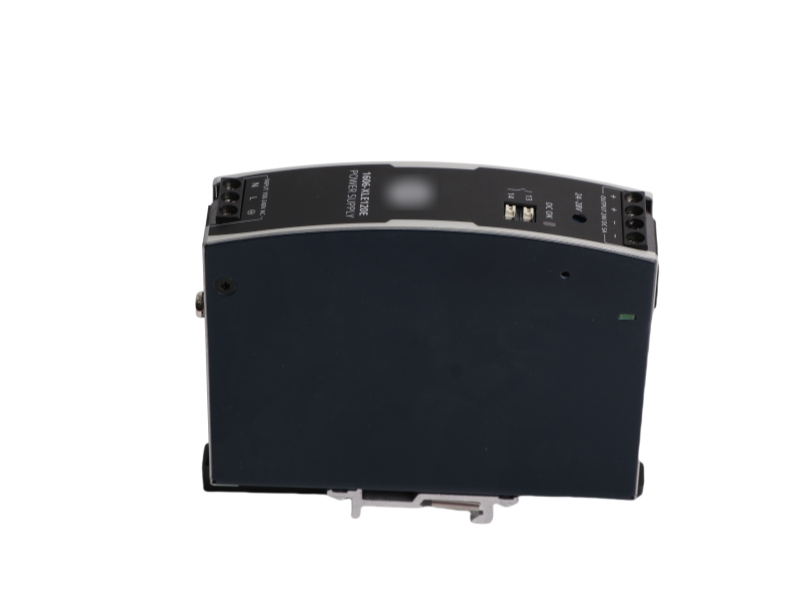

The 1606-XLE120E is a cost-effective 120W power supply delivering 24V DC output with high efficiency, compact design, and 20% power reserve, ensuring reliable performance and easy global installation with auto-select input.
SPECIFICATION
-
Output voltage：DC 24V
-
Adjustment range：24 - 28V
-
Output current：
-
5 – 4.3A ambient <60°C
-
6 – 5,1A ambient <45°C
-
Output power：
-
120W ambient <60°C
-
144W ambient <45°C
-
Output ripple： < 50mVpp 20Hz to 20MHz
-
Input voltage ：AC 100-120 / 200- 240V Auto-select Input
-
Line frequency：50-60Hz ±6%
-
AC Input current： typ. 2.05 / 1.23A at 120 / 230Vac
-
Power factor ：typ. 0.56 / 0.47 at 120 / 230Vac AC
-
Inrush current ：typ. 3A peak
-
DC Input ：not allowed
-
Efficiency typ. 89.4 / 90.2% at 120 / 230Vac
-
Losses： typ. 14.5 / 13.2W at 120 / 230Vac
-
Temperature range ：-25°C to +70°C operational
-
Derating ：3W/°C +60 to +70°C
-
Hold-up time ：typ. 80 / 78ms at 120 / 230Vac
-
Dimensions ：32x124x117mm WxHxD
FAQ
Q1: What is the output capacity of the 1606-XLE120E?
A1: It delivers 120W power with a stable 24V DC output for industrial applications.
Q2: Does the 1606-XLE120E support overload conditions?
A2: Yes, it provides a 20% power reserve, usable continuously up to +45°C.
Q3: Is the 1606-XLE120E suitable for global use?
A3: Yes, its auto-select input enables easy worldwide installation without manual switching.
Q4: What are the key design advantages of the 1606-XLE120E?
A4: It features a compact size, high efficiency, and wide operating temperature range.
Q5: How does the 1606-XLE120E improve system reliability?
A5: It eliminates errors from incorrect voltage selection and ensures stable, reliable performance.
