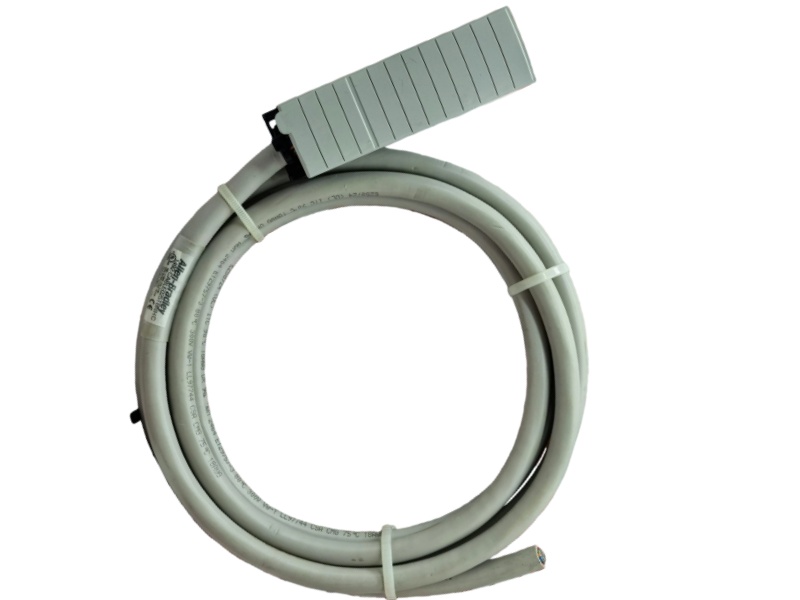

The I/O Prewired Cable Allen-Bradley 1492-CABLE025TBNH is a 20-point pre-wired I/O cable for seamless digital I/O module connectivity in control systems.

Technical Specifications

Connector & Length: Features a 20-point TBNH block and is 2.5 meters (8.2 ft) long.

Electrical Rating: Rated for 300V and handles up to 2A per pin.

Conductor: Uses 20 color-coded, 18 AWG conductors.

Application: Designed for digital I/O module connectivity.

Construction: PVC-insulated cable with an ~11.4 mm diameter.

Environment: Suitable for temperatures up to 80°C.

FAQ

Q1: What is the primary function of the 1492-CABLE025TBNH?

A1: It is a pre-wired I/O cable designed for connecting digital I/O modules in Allen-Bradley control systems, simplifying wiring.

Q2: What are its key electrical specifications?

A2: It's rated for 300V, handles up to 2A per pin, and is suitable for temperatures up to 80°C.

Q3: How long is the cable and how is it terminated?

A3: The cable is 2.5 meters (8.2 ft) long and is terminated with a 20-point TBNH block connector.

Q4: What is the conductor configuration for this cable?

A4: It contains 20 color-coded conductors, each sized at 18 AWG, for easy identification and reliable signal transmission.

Q5: What is the cable's insulation and what are its benefits?

A5: It features PVC insulation, providing safety, durability, and a ~11.4 mm diameter for standard industrial environments.
