S800 I/O DUAL-POWER TERMINATION

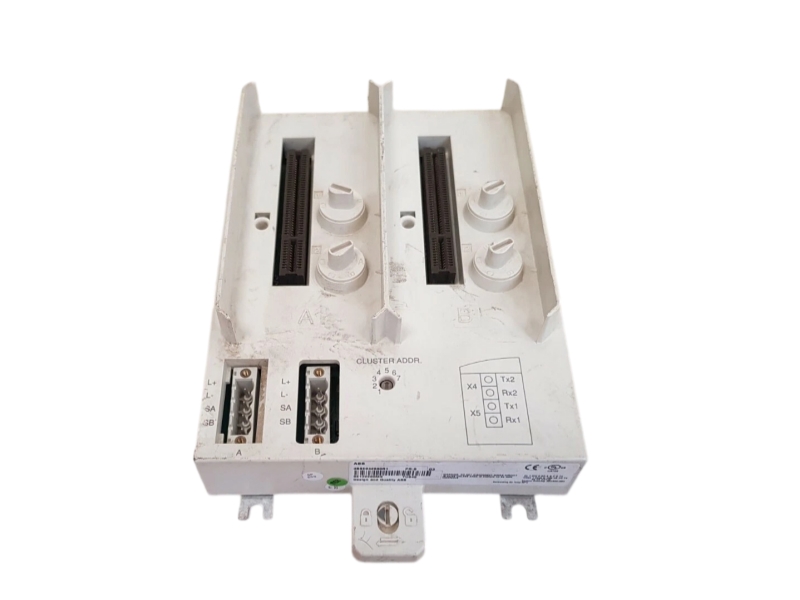

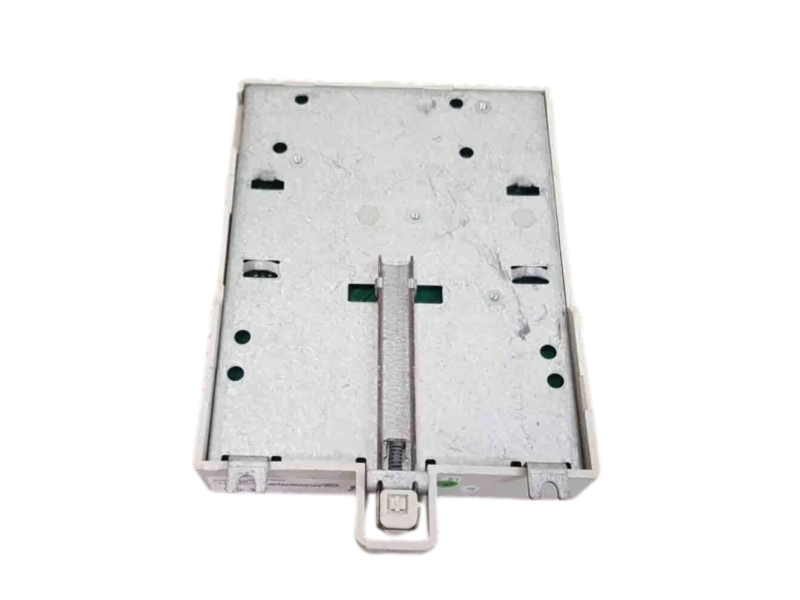

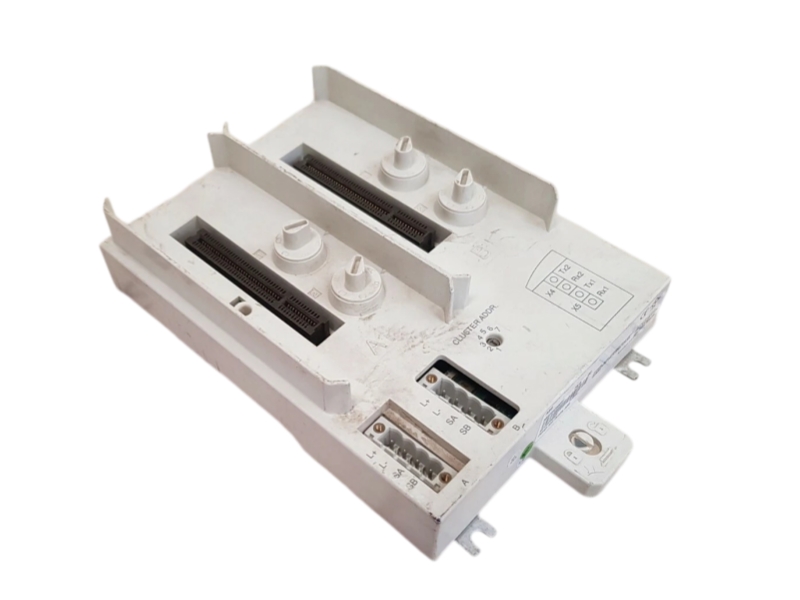

ABB TU849 is a passive S800 I/O module termination unit for redundant TB840 or TB840A Optical ModuleBus Modem configurations with non-redundant I/O. It provides separate 24 V DC power connections for the two modems, two modem positions, a single electrical ModuleBus path and a rotary switch for cluster addresses from 1 to 7. Mechanical keying helps prevent insertion of an incorrect module type, while the DIN-rail latch provides locking and grounding. Verify article number 3BSE042560R1, power feeds, modem pairing, single I/O arrangement and cluster address before replacement.
Condition, availability and warranty are Stockoems commercial terms.
| Manufacturer | ABB |
| Complete Part Number | TU849 |
| Manufacturer Article Number | 3BSE042560R1 |
| Product Type | S800 I/O module termination unit |
| System | ABB S800 I/O |
| Configuration | Redundant TB840/TB840A with non-redundant I/O |
| Power Input | 24 V DC, 19.2 to 30 V |
| Power Connections | Dual |
| Line Redundancy | Yes |
| Electrical ModuleBus | Single path |
| Cluster Address | Rotary switch, 1 to 7 |
| Mechanical Keys | 36 combinations |
| Mounting | Vertical or horizontal DIN rail |
| Protection Rating | IP20 |
| Dimensions | 124 × 186.5 × 47 mm |
| Weight | 0.45 kg |
| Country of Origin | SWEDEN |
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping available |
Match article number 3BSE042560R1 and verify both TB840/TB840A modem positions, separate 24 V DC power feeds, non-redundant I/O arrangement, cluster address and mechanical key setting. Confirm the installed ModuleBus topology and cabinet documentation before changing hardware.
TU849 is a passive S800 I/O module termination unit intended for redundant TB840 or TB840A modems with non-redundant I/O.
The ABB article number is 3BSE042560R1.
Yes. It provides separate 24 V DC power connections for the two modem positions.
A rotary switch selects the cluster address from 1 to 7.
Compare the complete model, article number, modem pairing, power feeds, I/O arrangement, address and mechanical key setting.
