TU830V1 3BSE013234R1 Overview

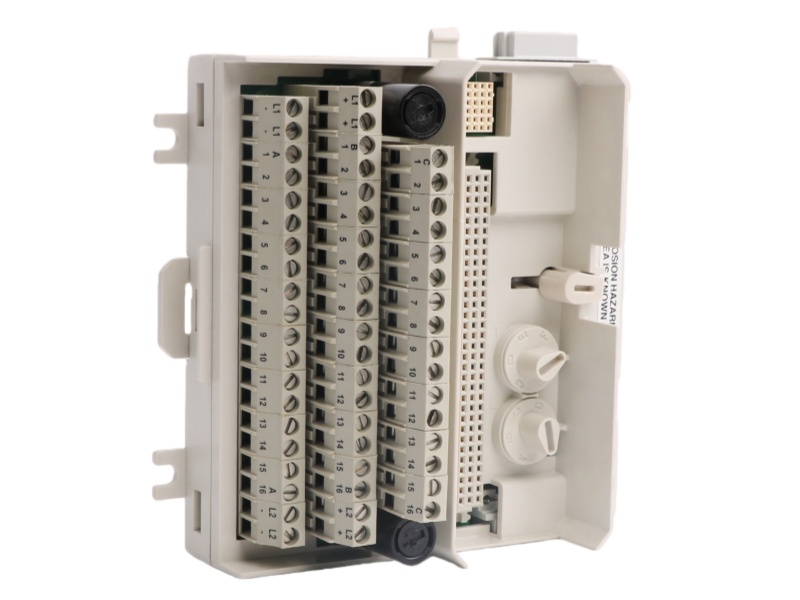

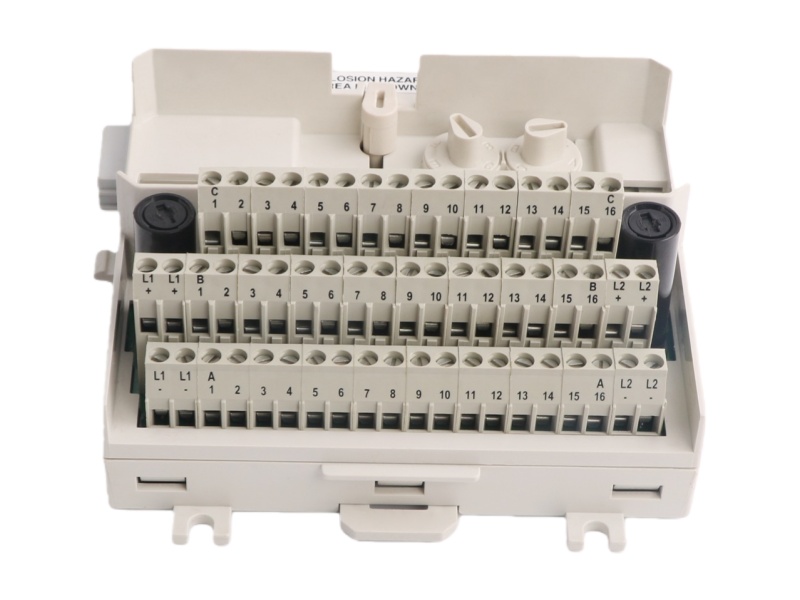

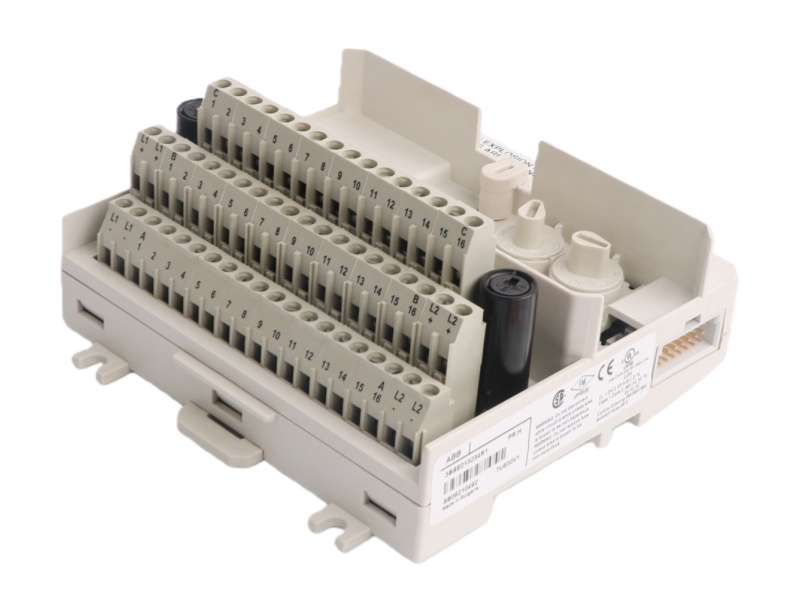

The ABB TU830V1 Extended Module Termination Unit is an extended module termination unit providing two rows of 16 signal terminals each for reliable electrical connections in control systems, rated for 50V isolation.

Features and benefits

High-Density Termination: Provides 32 connection points (2 rows of 16 terminals) for efficient field wiring in control panels.

Extended Unit Design: As an Extended Module Termination Unit (MTU), it offers enhanced wiring space and organization.

Rated Electrical Isolation: Features a 50V isolation rating for safe signal separation and circuit protection.

Environmental Compliance: Manufactured in compliance with the EU RoHS Directive, ensuring it is free of hazardous substances.

Product Type Classification: Categorized under WEEE 5 for small equipment, facilitating proper disposal and recycling.

Standardized Integration: Designed as a universal termination interface for ABB control systems, simplifying installation and maintenance.

FAQ

Q1: What is the primary function of the ABB TU830V1 (3BSE013234R1)?

A1: It is an Extended Module Termination Unit (MTU) designed to provide a high-density interface for field wiring connections in automation systems.

Q2: How many connection terminals does this unit provide?

A2: It offers a total of 32 connection points, arranged in two rows of 16 signal terminals each.

Q3: What is its rated electrical isolation specification?

A3: The unit is rated for 50V isolation, ensuring safe separation between circuits.

Q4: Is this product compliant with environmental regulations?

A4: Yes, it is manufactured in compliance with the EU RoHS Directive, restricting the use of hazardous substances.

Q5: What is the product's classification for disposal?

A5: It falls under WEEE Category 5 (Small Equipment), which guides its proper end-of-life recycling and disposal.
