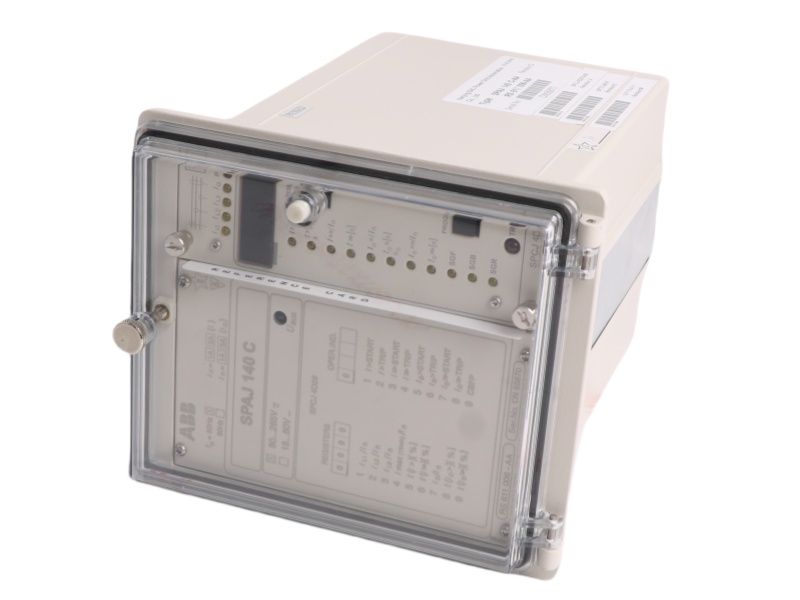

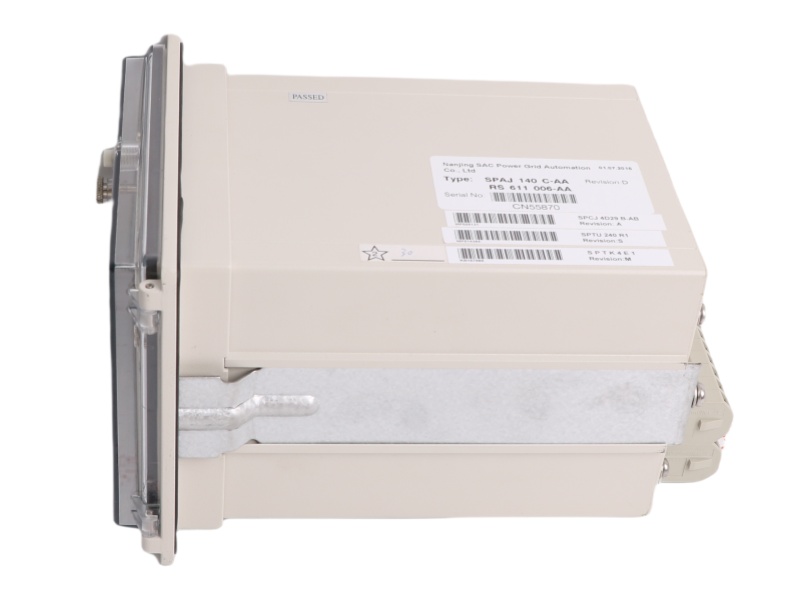

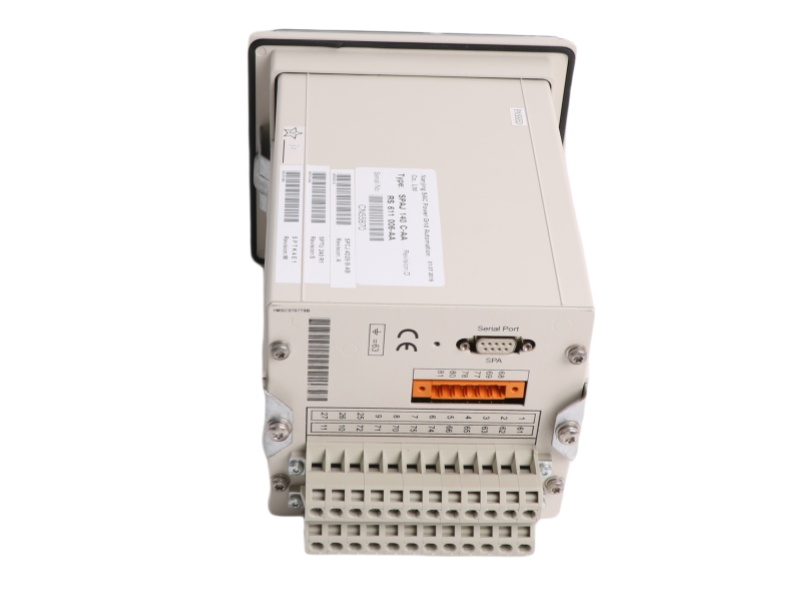

ABB SPAJ140C Combined Overcurrentand Earth-Fault Relay

Inquiry now

SPAJ140C Product datasheet

Model number:	SPAJ140C	Module Type：	Combined Overcurrentand Earth-Fault Relay
Manufacture:	ABB	Condition：	Brand New
Range of Product:	ABB	Lead time：	In Stock
Weight:	3.2 kg	HS CODE：	8537101190
Dimension:	24x13.2x16cm	MOQ:	1
Product Origin:	SWEDEN	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

SPAJ140C Functional Description

The ABB SPAJ140C Combined Overcurrentand Earth-Fault Relay is a multifunctional protection relay combining overcurrent and earth-fault detection in a single compact unit. As a secondary relay connected to current transformers, the Power Supply ABB SPAJ140C continuously monitors phase and neutral currents, triggering circuit breaker tripping, auto-reclosing, alarms, and fault recording when thresholds are exceeded. Its low-set stages (I> and I0>) initiate actions after ~60 ms, while high-set stages (I>> and I0>>) respond within ~40 ms for rapid fault isolation.

The ABB SPAJ140C DCS Module offers flexible time-current characteristics, including definite time or IDMT operation for both overcurrent and earth-fault units. It provides six curve options: four standardized curves (Normal/Very/Extremely/Long-time inverse per BS 142/IEC 60255) plus specialized RI and RXIDG curves. This versatility allows precise coordination with other protective devices in industrial or utility power systems.

Configurable output relays enable the SPAJ140C ABB PDF to deliver start signals for blocking co-protection relays, alarm signaling, or auto-reclosing initiation. An integrated binary input supports remote control functions—such as stage blocking, manual reset of latched relays, or dynamic setting group changes—enhancing system adaptability.

Engineered for reliability, the ABB Earth-Fault Relay SPAJ140C-AA ensures robust performance in diverse applications. Its combination of rapid response, customizable curves, and advanced control features makes it ideal for feeder and motor protection in demanding electrical networks.
