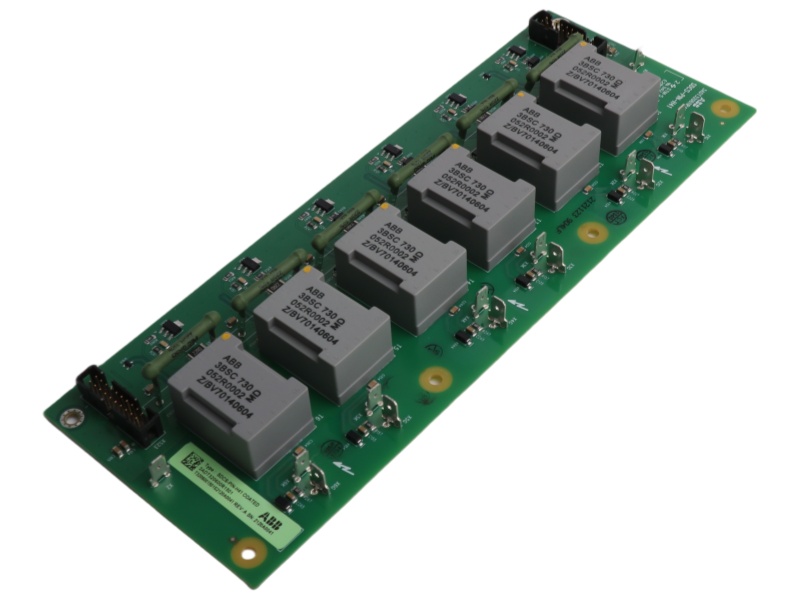

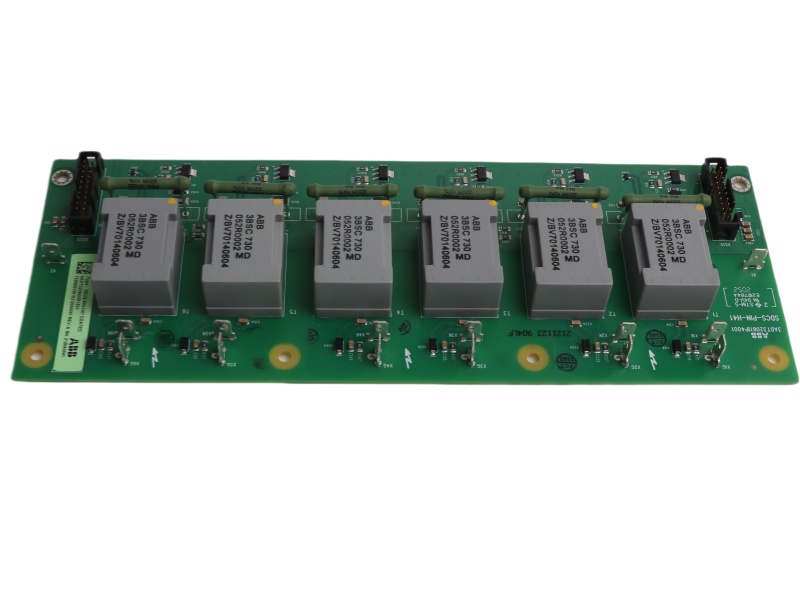

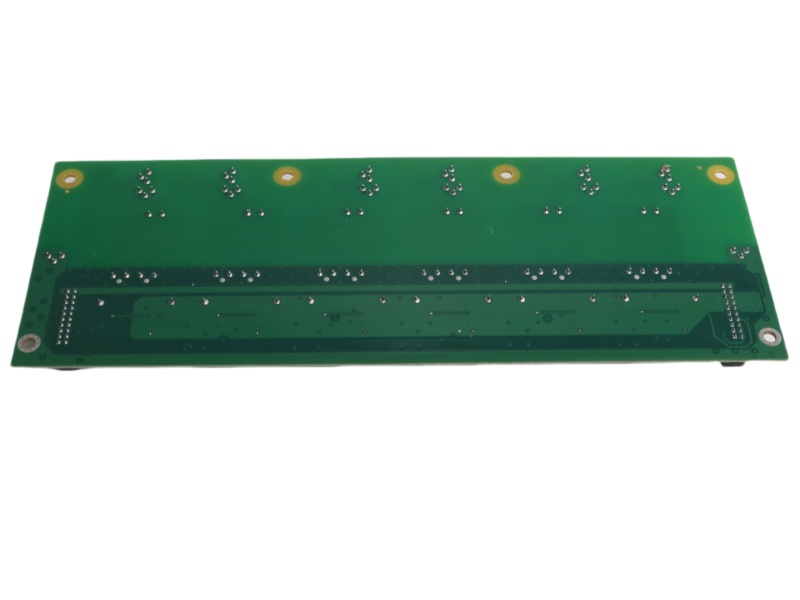

ABB SDCS-PIN-H41 3ADT320600R1501 Firing Pulse Transformer Board

Inquiry now

SDCS-PIN-H41 3ADT320600R1501 Product datasheet

Model number:	SDCS-PIN-H41 3ADT320600R1501	Module Type：	Firing Pulse Transformer Board
Manufacture:	ABB	Condition：	Brand New
Range of Product:	Advant OCS/800xA	Lead time：	In Stock
Weight:	0.3 kg	HS CODE：	8537101190
Dimension:	27x10x2.3cm	MOQ:	1
Product Origin:	SWEDEN	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

SDCS-PIN-H41 3ADT320600R1501 Functional Description

The ABB SDCS-PIN-H41 3ADT320600R1501 Firing Pulse Transformer Board is a 16-channel digital input module designed for integration with ABB's advanced 800xA control systems. This robust module operates at 5-24V DC pulse voltage with an isolated range of 10-30V, making it suitable for diverse industrial automation applications. The ABB Transformer Board SDCS-PIN-H41 3ADT320600R1501 delivers reliable performance with its 1-2A output current capacity, ensuring stable signal transmission in demanding environments.

The SDCS-PIN-H41 3ADT320600R1501 ABB features primary-to-secondary isolation ≥2500V AC and insulation resistance >100MΩ, providing exceptional protection against electrical interference. Its high-density design optimizes space utilization in control cabinets while maintaining superior signal integrity. The module's robust construction meets stringent industrial standards, making it ideal for power generation, oil & gas, and process industries.

The SDCS-PIN-H41 3ADT320600R1501 ABB PDF supports seamless integration with existing automation networks, offering plug-and-play installation. Its advanced diagnostics capabilities enable quick troubleshooting, reducing system downtime. The module's wide operating voltage range ensures compatibility with various field devices and sensors.

The FIRING PULSE TRANSFORMER BOARD SDCS-PIN-H41 3ADT320600R1501 delivers unmatched reliability for critical control applications. Its combination of high isolation ratings, compact design, and industrial-grade components makes it a preferred choice for modern automation systems requiring precision and durability.
