RINT-5611C Overview

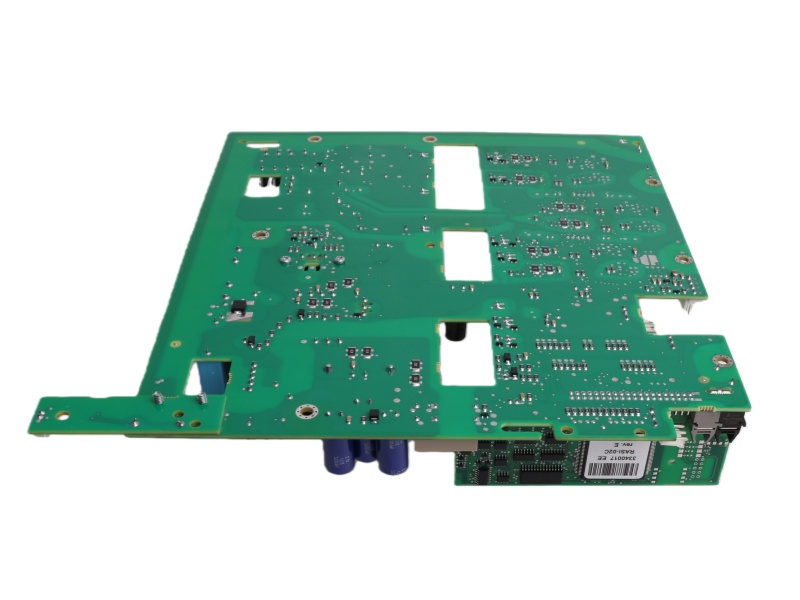

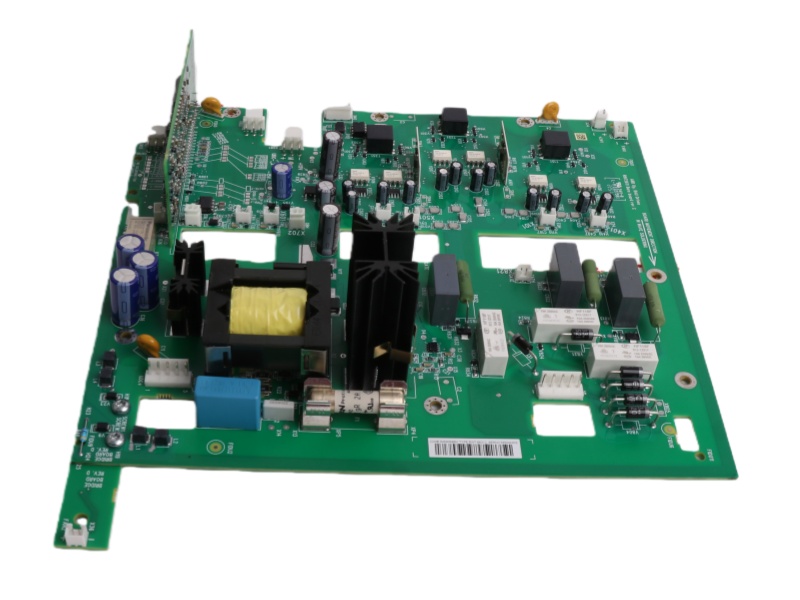

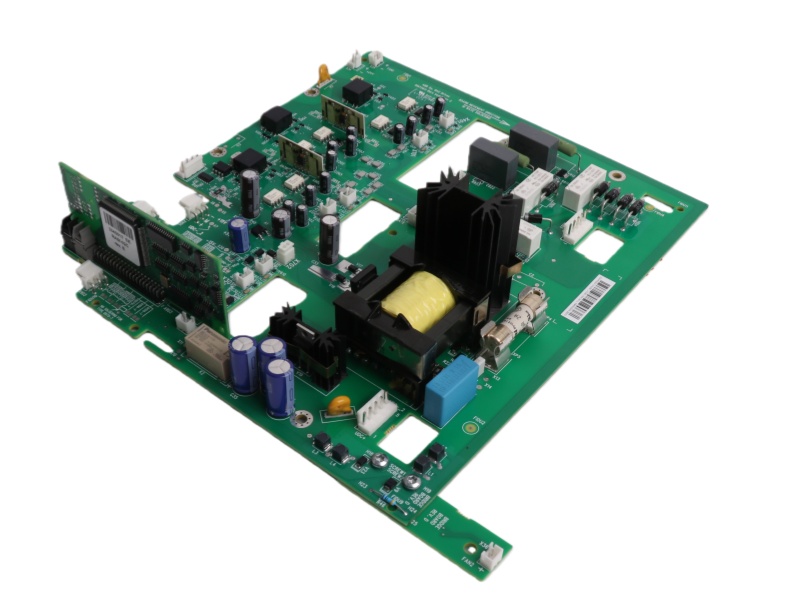

The Main Circuit Interface Board ABB 68718929 RINT-5611C is a main circuit interface board designed for ACS800-01/04 R6 380-500V drives. This kit includes an essential internal cooling fan, which is required for standard operation and must be replaced alongside the board during maintenance.

Application

Primary Function: It serves as the main circuit interface board for ACS800 drives.

Drive Compatibility: Specifically designed for ACS800-01/04 R6 380-500V drive models.

Component Kit: Includes an integral internal cooling fan as part of the assembly.

Critical Replacement: The internal fan must be replaced whenever the RINT board is replaced.

Standard Configuration: This fan is the default cooling component in ACS800 R6 IP21 drives.

Installation Note: The board and fan are replaced as a unit for proper drive operation and cooling.

FAQ

Q1: What is the function of the RINT-5611C board?

A1: It is the main circuit interface board for specific ACS800 drive models.

Q2: Which drives is this board compatible with?

A2: It is designed for use with ACS800-01/04 R6 380-500V drives.

Q3: What does the kit include?

A3: The kit includes both the interface board and a necessary internal cooling fan.

Q4: Is it mandatory to replace the fan when installing this board?

A4: Yes, the internal cooling fan must be replaced whenever the RINT board is replaced.

Q5: What is the country of origin for this part?

A5: This board is manufactured in Estonia (EE).
