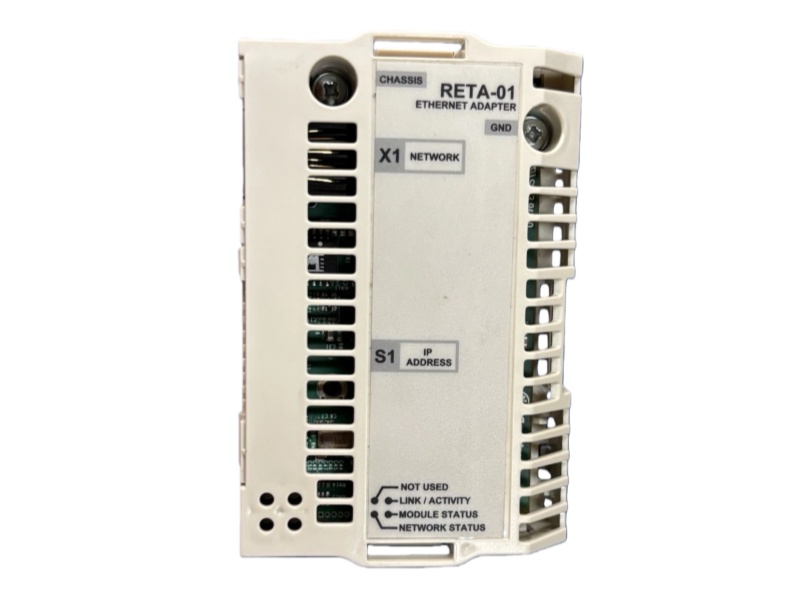

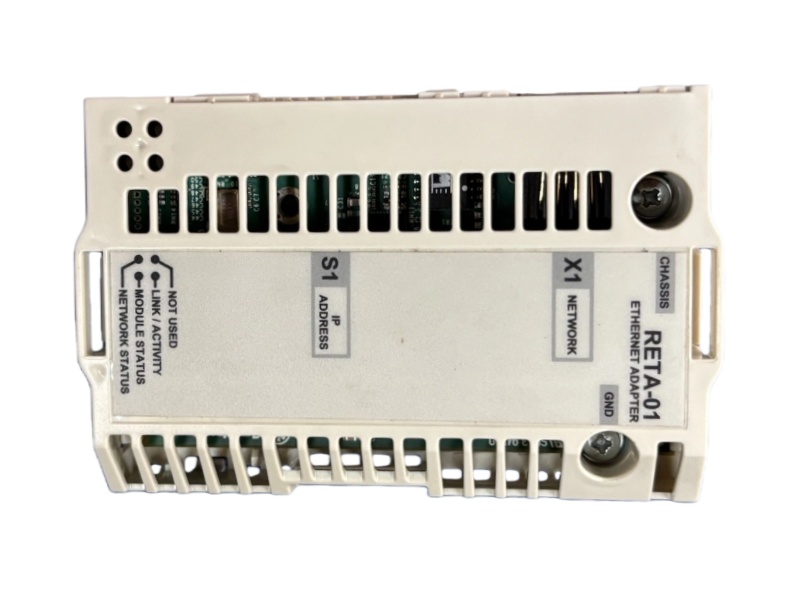

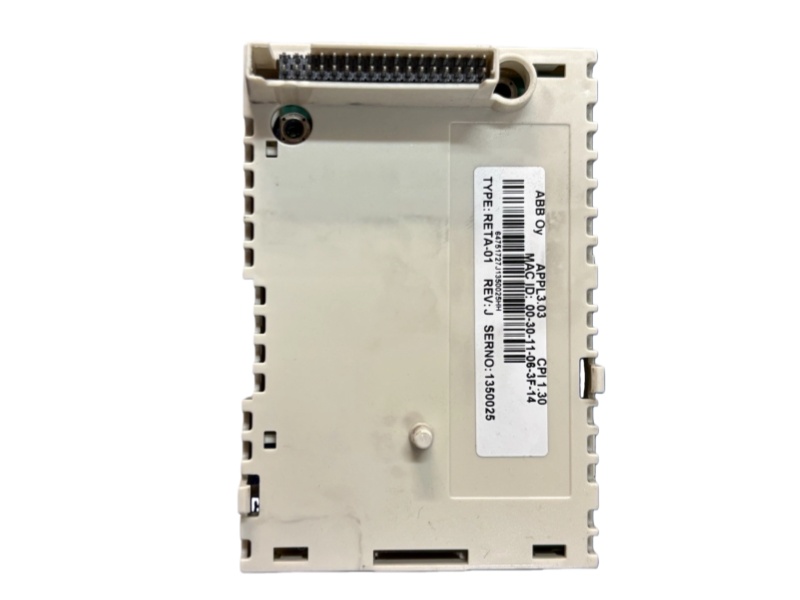

The ABB DCS MODULE RETA-01 is a crucial fieldbus adapter module designed to seamlessly integrate ABB drives into Ethernet networks. Functioning as a slave device on the network, this optional module serves as a vital communication gateway. It enables comprehensive control and monitoring by allowing users to send commands like Start and Stop, feed speed references, and read critical status information directly from the drive.

A key technical feature of the ABB RETA-01 ETHERNET ADAPTER MODULE is its robust support for major industrial protocols, including Modbus/TCP and EtherNet/IP. This versatility ensures broad compatibility with existing industrial control systems. The module is physically mounted into a dedicated option slot on the drive's motor control board, providing a secure and integrated hardware connection.

The operational capabilities of the RETA-01 drives ABB significantly enhance system functionality. Through this adapter, operators can not only change drive parameters but also reset faults and interact with the drive's internal PID controller. This centralized access to data and control simplifies operations and provides deep insights into the drive's performance and status.

Ultimately, the implementation of the RETA-01 ABB Ethernet Adapter Module transforms an ABB drive into a smart, networked device within a modern industrial ecosystem. Its design focuses on reliable data transmission and straightforward fault tracing, making it an essential component for achieving efficient and connected industrial automation. The ABB RETA-01 PCB KIT effectively bridges the gap between powerful drive technology and enterprise-level network systems.
