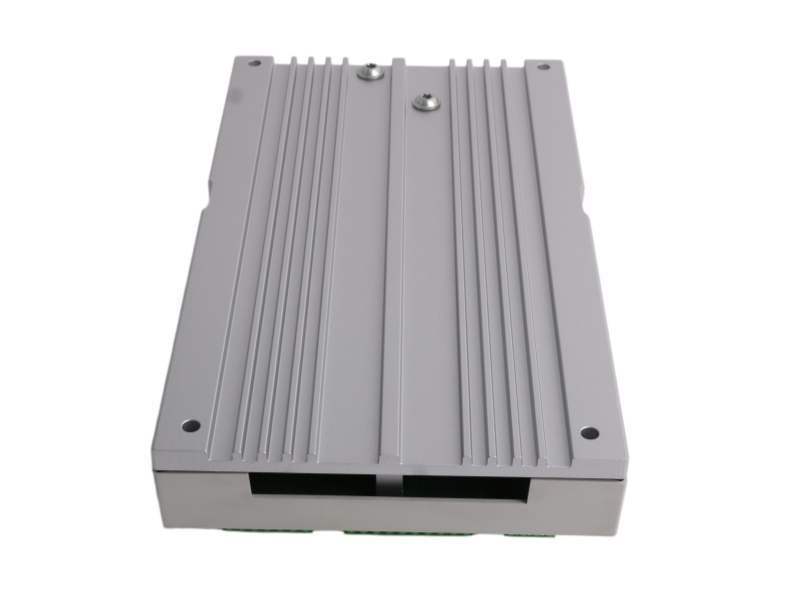

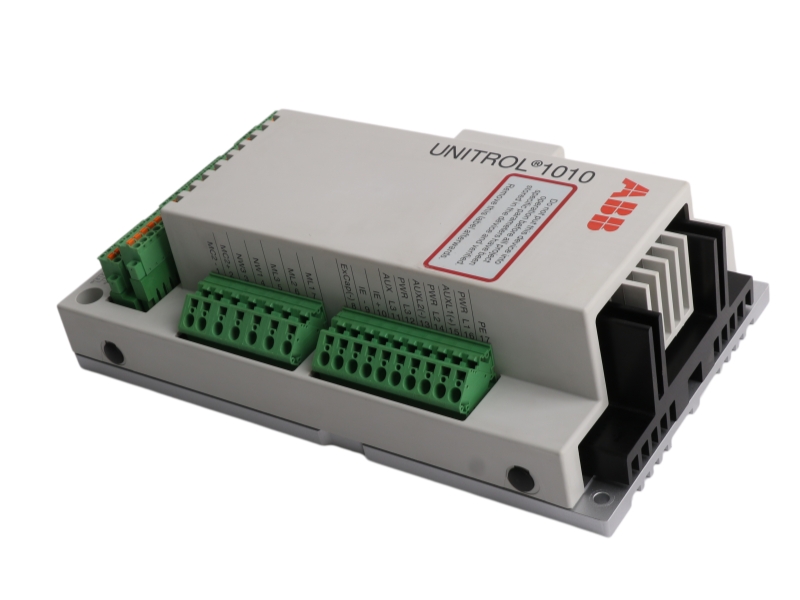

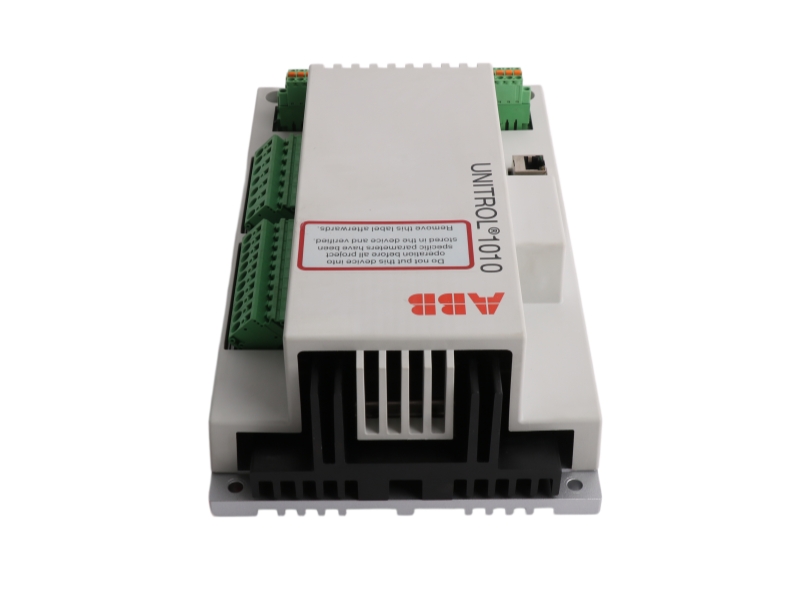

ABB PFEA113 3BHE035301R0410 UNS0121 A-Z,V1 is a high-reliability excitation control module used in UNITROL systems, providing precise voltage regulation, fast response control, and stable generator excitation performance in industrial power applications.
Specifications
-
General Information
- Manufacturer: ABB
- Model: PFEA113 3BHE035301R0410 UNS0121 A-Z,V1
- Product Type: Excitation / Control System Module
- Series: UNITROL 1010 / UNS System
Electrical Characteristics
- Input Voltage: Wide industrial AC/DC supply (typically 48–250 V range in system architecture)
- Output: Controlled excitation voltage up to 250 V DC (system dependent)
- Power Consumption: Low-power embedded control design
Control Performance
- Voltage Regulation Accuracy: ±0.5% typical
- Response Time: <20–30 ms dynamic adjustment
- Control Modes: AVR, VAR, PF control
Communication & Integration
- Interfaces: RS485 / Ethernet (system dependent)
- Protocols: Modbus, industrial automation protocols
- Compatibility: ABB UNITROL excitation platforms
Protection Functions
- Over/under excitation protection
- Voltage limitation (V/Hz protection)
- Fault monitoring & diagnostics
Environmental
- Operating Temperature: -25°C to +70°C (typical industrial grade)
- Design: Cabinet-mounted, IP20 enclosure system
Application
-
- Power generation systems: Used in synchronous generator excitation control to maintain stable grid voltage and reactive power balance.
- Hydro & thermal plants: Ensures precise excitation regulation for turbine-driven generators.
- Industrial power stations: Supports continuous voltage stabilization in heavy-duty electrical networks.
- Renewable energy systems: Applied in distributed generation for grid synchronization.
- Large motors: Improves performance of high-power synchronous motor control systems in industrial automation.
