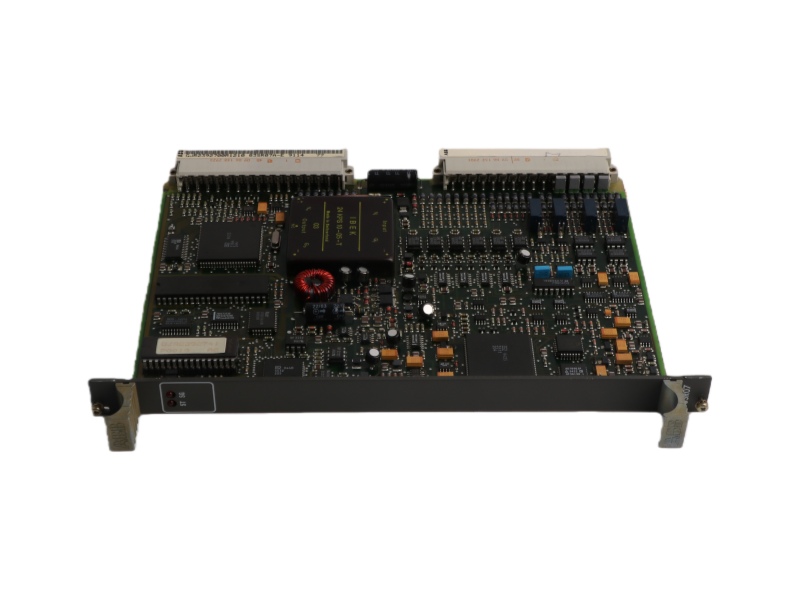

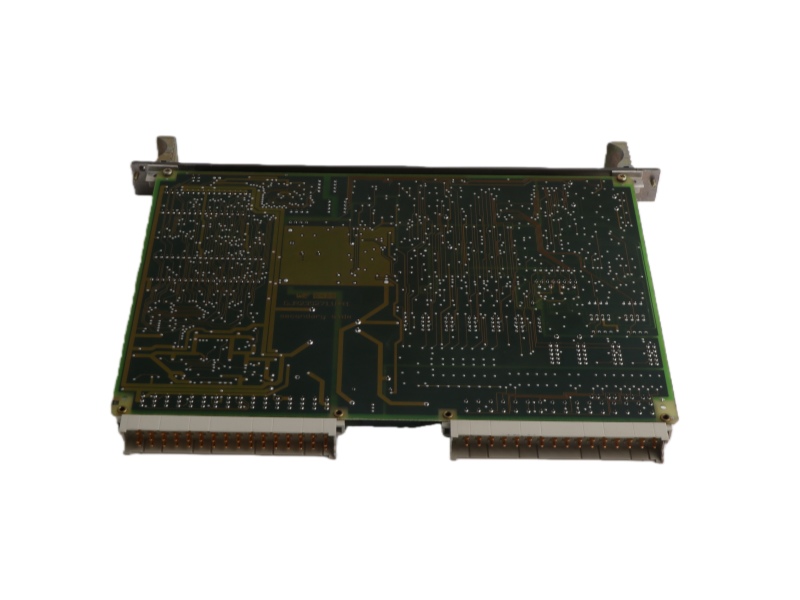

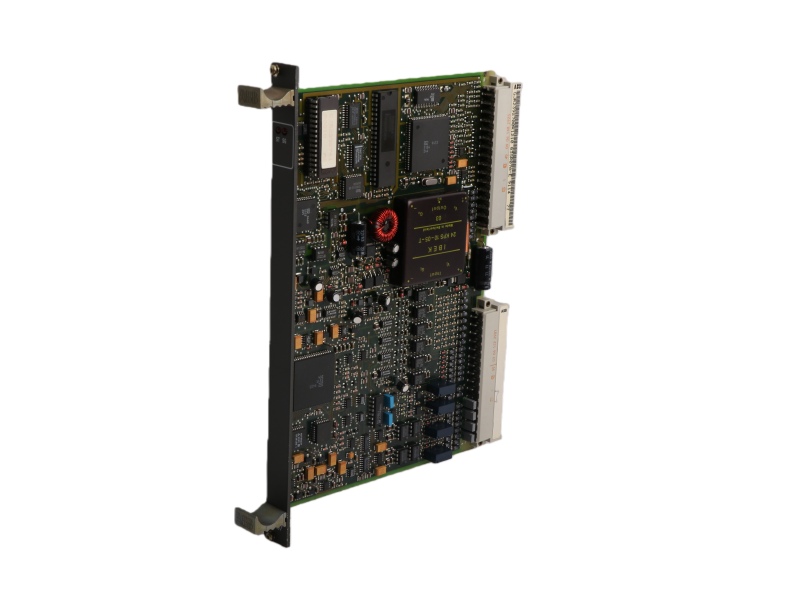

The ABB GJR2392700R1210 83SR07E-E Bus Coupling Module represents a sophisticated analog control module within the 83SR series, engineered for industrial automation and protection applications. This module operates on 24V DC power with typical consumption of 6W, featuring a 32-bit RISC processor running at 100MHz for efficient signal processing.

The technical architecture of the Procontrol P14 series ABB GJR2392700R1210 83SR07E-E incorporates shared memory technology for seamless data exchange with bus systems through dedicated source and sink registers.

The memory configuration of the Analog Control Module ABB GJR2392700R1210 83SR07E-E includes 2MB Flash and 512KB RAM, supporting complex control algorithms with a rapid 1ms typical scan time. This module provides substantial input/output capabilities with 16 digital input channels and 8 relay outputs rated at 5A/230V AC. The robust design of the Control Module 83SR07E-E GJR2392700R1210 ABB ensures reliable operation with 1500V AC isolation between field and logic circuits.

Configuration flexibility is achieved through the PDDS system, which manages register assignments for optimal module performance. The GJR2392700R1210 83SR07E-E ABB Analog Control Module supports advanced function blocks including signal generation limits for analog values, enhancing its application versatility. These features make the module particularly suitable for demanding industrial environments where precision control and reliable operation are essential requirements.
