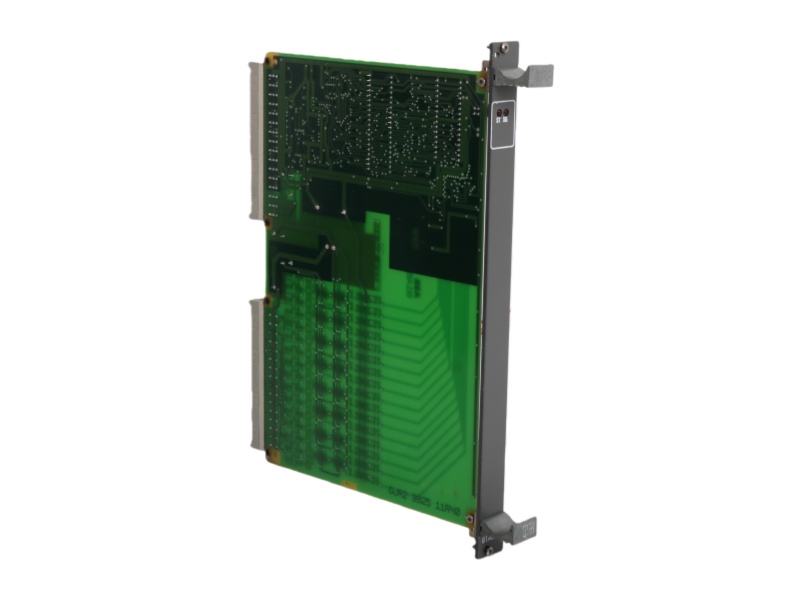

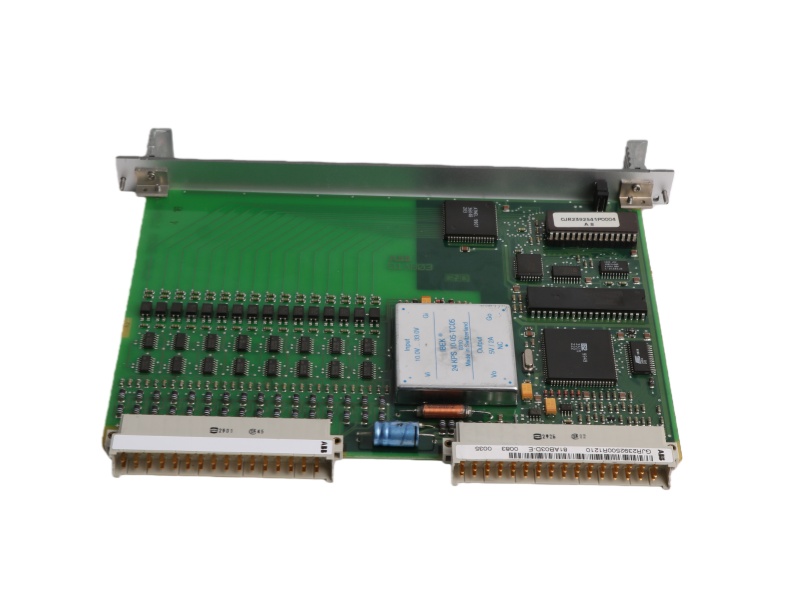

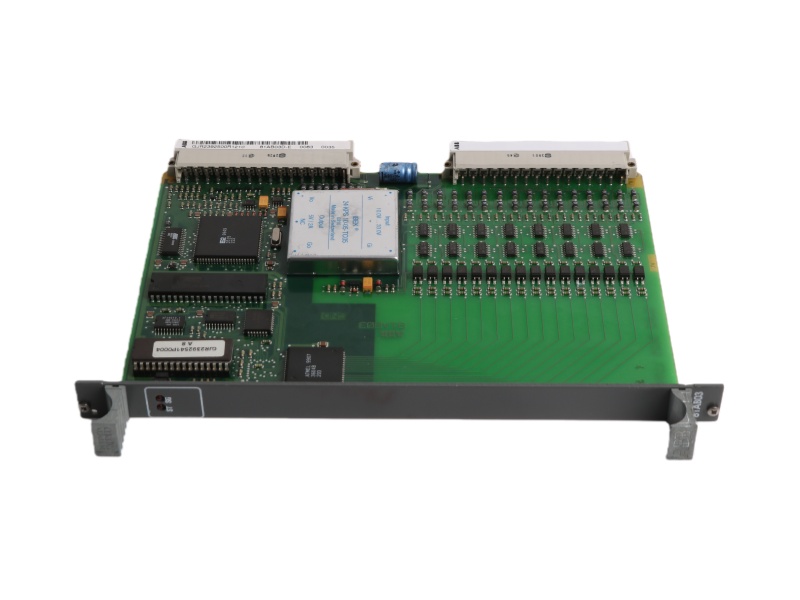

The Procontrol P14 SERIES ABB GJR2329800R0100 88UM01A serves as a Security Key Board within the PROCONTROL P14 system, demonstrating particular reliability in critical turbine protection applications. This module specializes in conventional parallel signal transfer from the PROCONTROL bus system, ensuring secure data transmission between master stations and control room interfaces.

The design of the PROCONTROL system monitoring station GJR2329800R0100 88UM01A incorporates two identical, potential-isolated input circuits that receive information from coupling modules in both master stations A and B, maintaining signal integrity through two-pole transfer.

Installed uniquely within the monitoring station, the GJR2329800R0100 88UM01A ABB Security Key Board provides four essential interfaces for comprehensive system connectivity. Two interfaces manage signal exchange with coupling modules in the dual master stations, while the third establishes control room connections and the fourth links to the process control communication system. The front-panel configuration of the Annunciation Module ABB GJR2329800R0100 88UM01A includes seven light-emitting diodes that provide clear visual indication of disturbances detected within the partial systems, enabling quick fault identification.

The robust architecture of the ABB GJR2329800R0100 88UM01A PROCONTROL system monitoring station supports the hierarchical and functionally distributed layout of turbine control systems, whether managing small industrial turbines or large utility re-heater turbines. Its reliable operation within the fully automatic control environment makes it indispensable for maintaining system security and operational continuity in demanding power generation applications, ensuring essential information transfer remains secure and uninterrupted.
