ABB FS450R12KE3/AGDR-71C IGBT Module Kit

Inquiry now

FS450R12KE3/AGDR-71C Product datasheet

Model number:	FS450R12KE3/AGDR-71C	Module Type：	IGBT Module Kit
Manufacture:	ABB	Condition：	Brand New
Range of Product:	ABB	Lead time：	In Stock
Weight:	1.02 kg	HS CODE：	8537101190
Dimension:	30x16x6cm	MOQ:	1
Product Origin:	SWEDEN	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

FS450R12KE3/AGDR-71C Functional Description

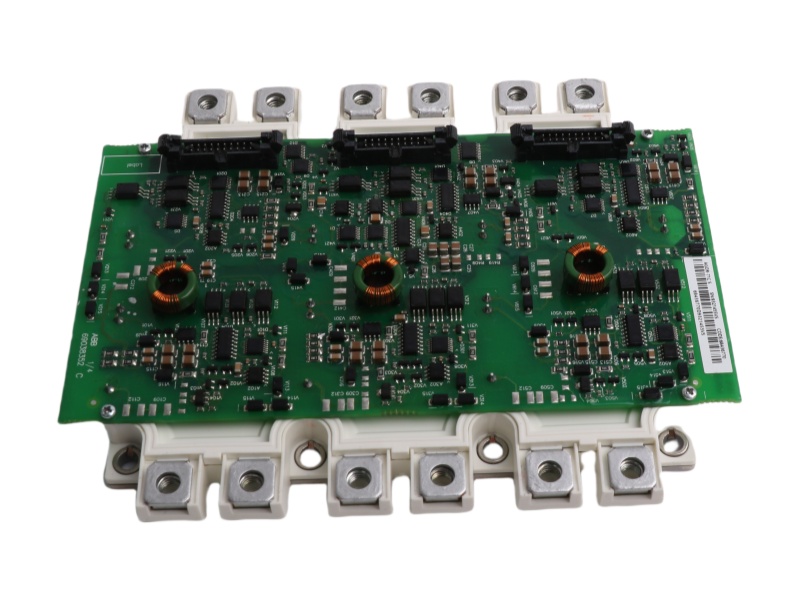

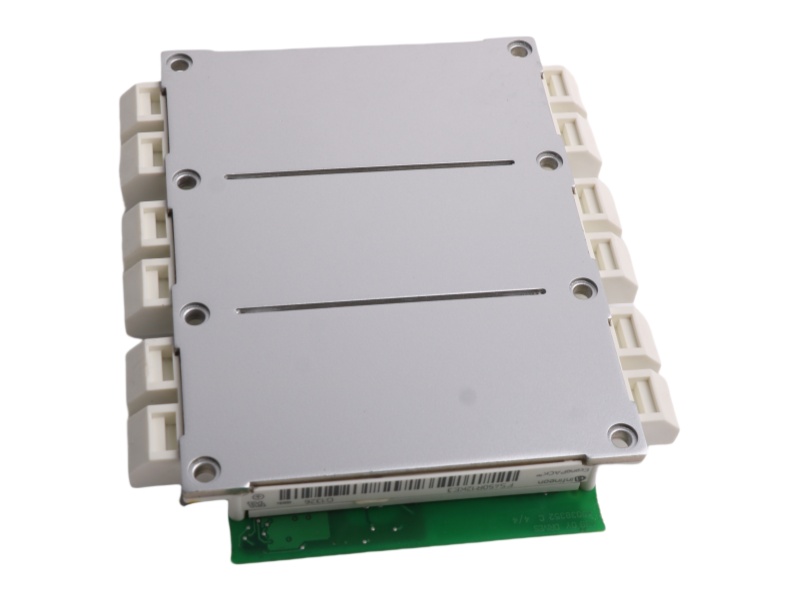

The ABB FS450R12KE3/AGDR-71C IGBT Module Kit power module has been enhanced through the implementation of Thermal Interface Material (TIM) foils, replacing traditional thermal grease in ACS800 drives using EconoPACK+ IGBT technology. This upgrade represents ABB's continuous improvement initiative for the ACS800 product family, with the Driver Board ABB FS450R12KE3/AGDR-71C benefiting from more efficient thermal management and simplified installation processes.

Compared to conventional thermal grease, the graphite-based TIM foils in the ABB IGBT Module Kit FS450R12KE3/AGDR offer superior durability and consistent heat transfer performance, particularly in cyclic applications where temperature fluctuations are common. The 1200V/450A rated ABB FS450R12KE3/AGDR-71C maintains its excellent thermal characteristics over extended periods, ensuring reliable operation in demanding industrial environments.

The technical specifications of the FS450R12KE3/AGDR-71C ABB PDF include a switching frequency up to 20kHz, 4kV AC isolation voltage, and gate driver requirements of ±15V/-8V DC supply voltage with ±35A peak gate current. These parameters, combined with the new TIM foil technology, make the ABB FS450R12KE3/AGDR-71C particularly suitable for high-performance applications in power conversion and industrial drive systems.

With its improved thermal interface solution, the AGDR-71C ABB IGBT Module delivers enhanced long-term reliability for critical applications, including renewable energy systems and heavy industrial machinery. The TIM foil implementation demonstrates ABB's commitment to advancing power module technology while maintaining backward compatibility with existing ACS800 drive configurations.
