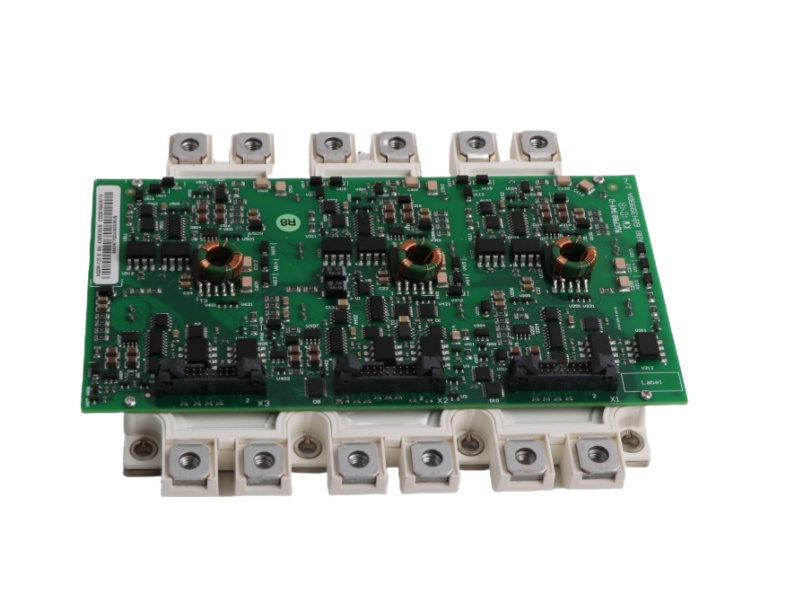

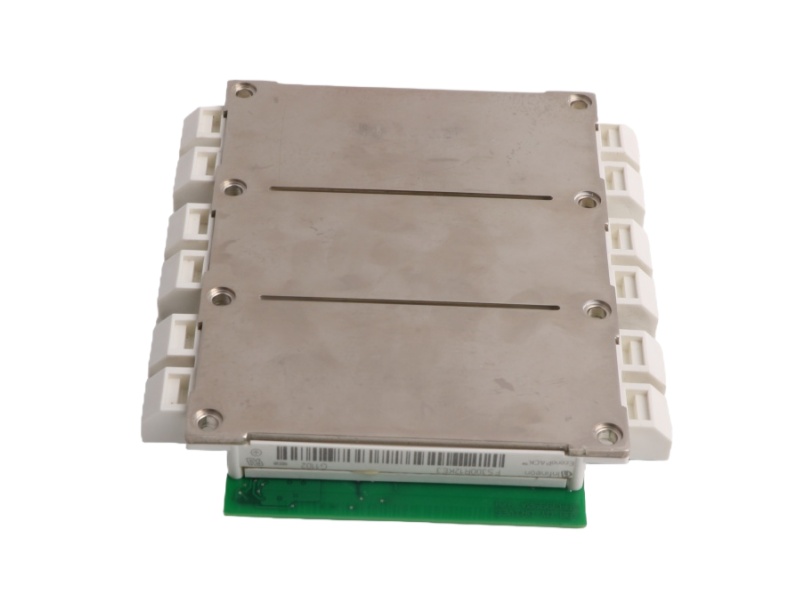

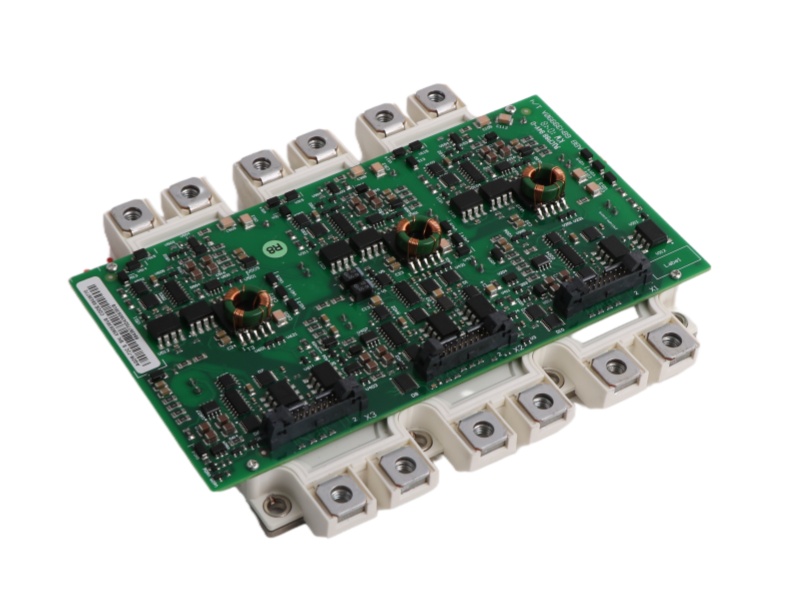

ABB FS300R12KE3/AGDR-72C IGBT Module Kit

Inquiry now

FS300R12KE3/AGDR-72C Product datasheet

Model number:	FS300R12KE3/AGDR-72C	Module Type：	IGBT Module Kit
Manufacture:	ABB	Condition：	Brand New
Range of Product:	ABB	Lead time：	In Stock
Weight:	1.08 kg	HS CODE：	8537101190
Dimension:	18.5x8.5x30.5cm	MOQ:	1
Product Origin:	SWEDEN	System：	DCS
Discontinued on:	Active	Communication Service:	Ethernet router

FS300R12KE3/AGDR-72C Functional Description

The ABB FS300R12KE3/AGDR-72C IGBT Module +Drive is a complete IGBT module kit that combines a high-power FS300R12KE3 IGBT module with an integrated AGDR-72C gate driver, designed specifically for ABB ACS800 series industrial inverters. This robust power electronics solution features a 300A rated current and 1200V collector-emitter voltage capability, making it suitable for demanding motor drive and power conversion applications. It utilizes advanced IGBT technology to provide efficient switching performance optimized for medium to high frequency operations while maintaining excellent thermal stability under heavy load conditions.

The integrated gate driver in the IGBT Module Kit FS300R12KE3/AGDR-72C ensures precise switching control and provides comprehensive protection features including short-circuit protection, under-voltage lockout, and temperature monitoring. The module includes thermal interface material (TIM) foil for enhanced heat dissipation, which is crucial for maintaining reliability in high-power applications. Weighing approximately 1.389 kg, it supports both press-fit and screw-type mounting options, offering flexibility for different system designs and maintenance requirements.

Manufactured with high-quality standards and originating from Estonia, the ABB FS300R12KE3/AGDR-72C In Stock demonstrates ABB's commitment to delivering reliable power components for industrial automation. This module kit is packaged as a complete unit, ensuring that users receive all necessary components for a successful installation or replacement procedure. it is designed to meet the rigorous demands of industrial environments, providing consistent performance in applications such as motor drives, power supplies, and renewable energy systems.

The implementation of the Electrical Accessories FS300R12KE3 AGDR-72C in drive systems enhances overall system reliability and efficiency while simplifying maintenance and replacement processes. This integrated solution reduces installation complexity by providing a matched pair of IGBT module and driver, ensuring optimal performance and protection characteristics. The ABB FS300R12KE3 AGDR-72C BOARD+IGBT MODULE represents a critical component in modern power electronics, supporting industrial operations that require robust and efficient power conversion capabilities.
