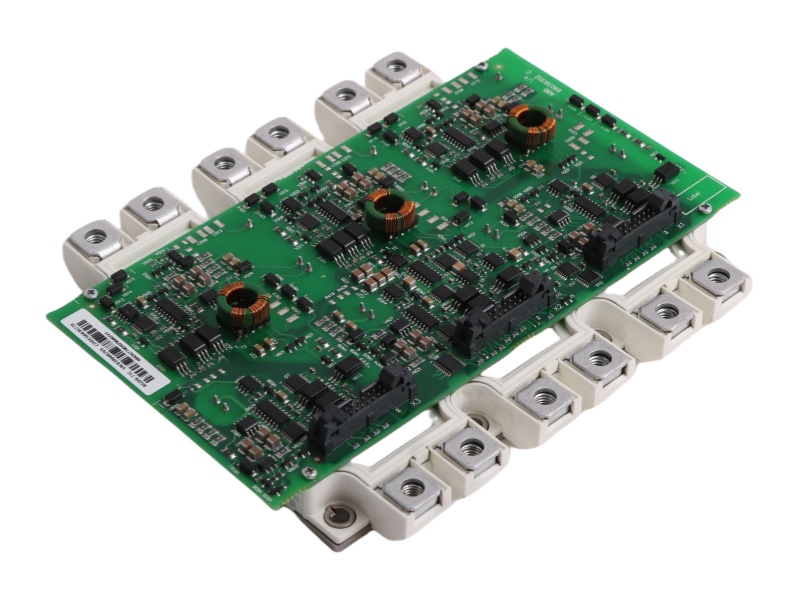

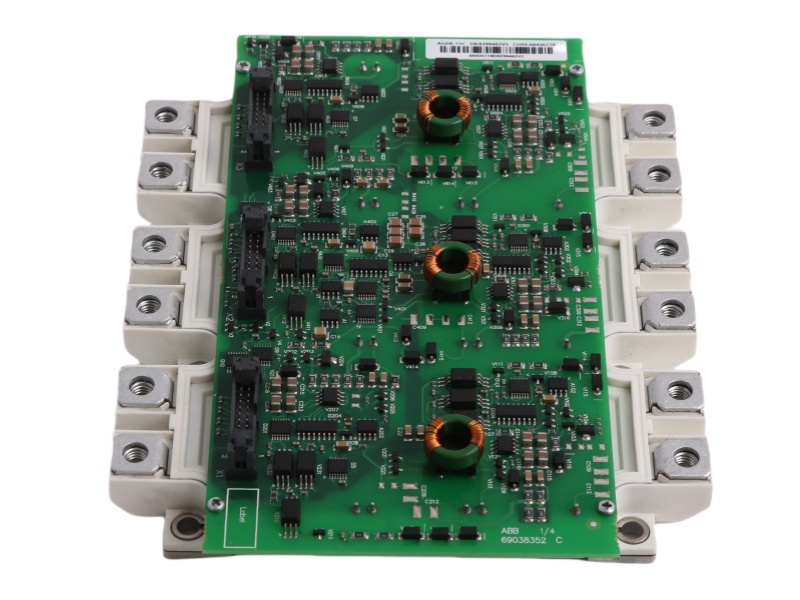

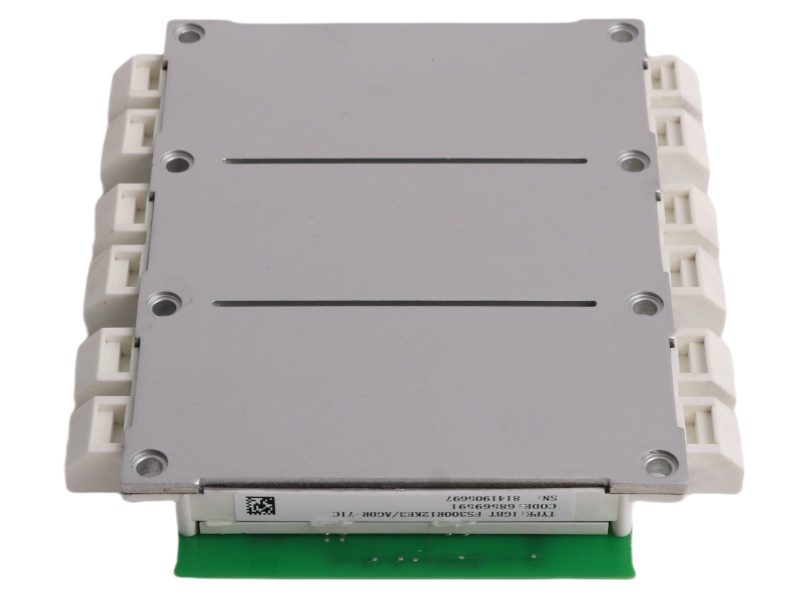

TIM foils, also known as graphite sheets, have become an integral part of the ACS800 modules that utilize the EconoPACK+ IGBT. This introduction is part of the ongoing continuous improvements within the ACS800 product family, aimed at enhancing performance and ease of maintenance. ABB FS300R12KE3/AGDR-71CS Drive Board+IGBT Module main advantage of using TIM foils over traditional thermal grease is that it simplifies the installation process while providing superior heat transfer capabilities.

Unlike thermal grease, TIM foils offer more durable thermal conductivity over extended periods, making them particularly suitable for applications with cyclical thermal load, where durability is key. In such scenarios, the use of TIM foils ensures consistent and efficient heat dissipation, prolonging the life of components such as the IGBT KIT ABB FS300R12KE3/AGDR-71CS IGBT modules. These modules, when paired with TIM foils, benefit from better overall thermal management.

When installing TIM foils, it is important to follow the full set of instructions provided in the spare part kits for the IGBT modules. The installation process is straightforward, ensuring a smooth transition from thermal grease to TIM foils. However, FS300R12KE3/AGDR-71CS ABB PDF is still possible to mix IGBT modules with thermal grease and TIM foils, allowing flexibility during the upgrade.

For parallel-connected R8i modules, there is also the option of mixing TIM foils and thermal grease, depending on the specific requirements of the application. This flexibility ensures that the IGBT MODULE BOARD PFS300R12KE3/AGDR-71C S modules can be upgraded without compromising their operational efficiency. The careful selection and installation of these thermal solutions are crucial for maintaining optimal system performance.
