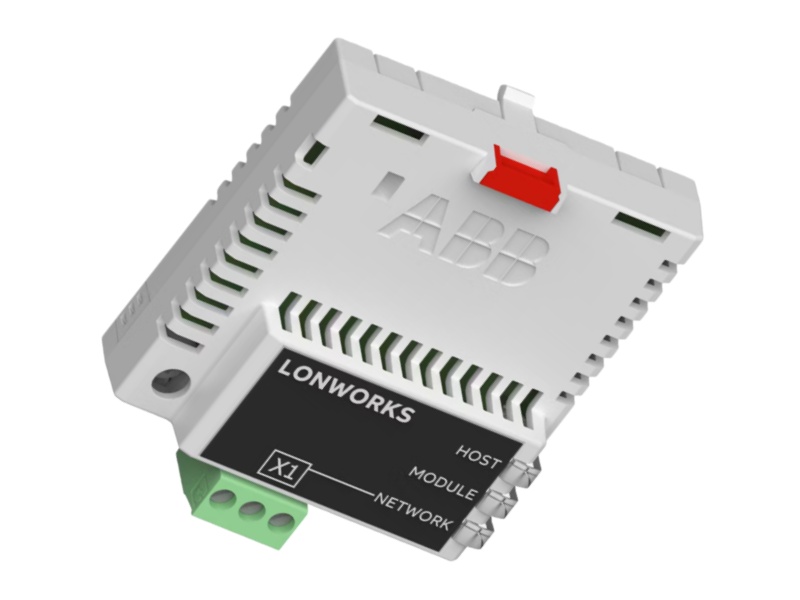

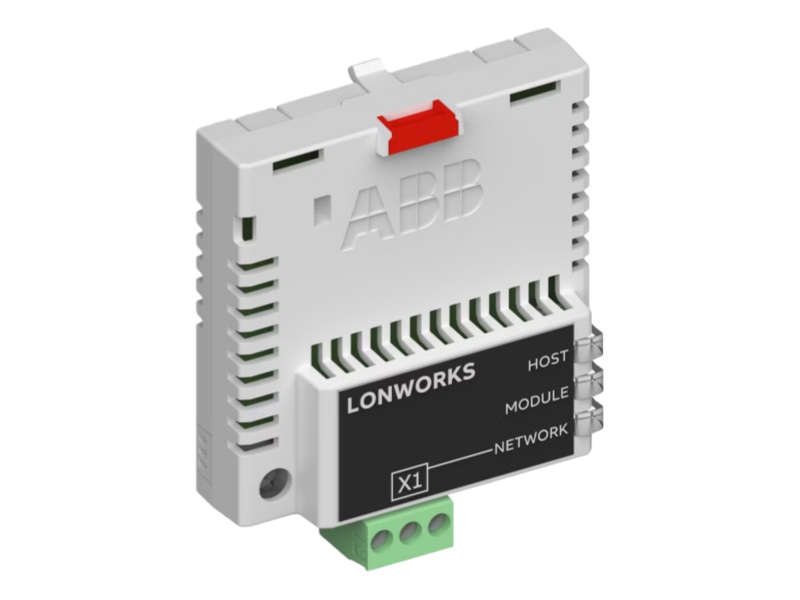

FLON-01 3ABD0000037539 Overview

The ABB FLON-01 3ABD0000037539 LonWorks adapter module connects ABB drives to LONWORKS® networks, managing bus termination and cable screen earthing for reliable communication.

Technical Data Summary

Function: Adapter module for connecting ABB drives to LONWORKS® networks.

Termination: Provides bus line termination with resistors to prevent signal reflections.

Screen Earthing: Supports proper cable screen earthing (single-point direct, others via RC filter).

Compatibility: Works with devices using FT-X1 and FTT-10A compatible transceivers.

Topology: Suitable for various network topologies (bus, etc.).

Application: Enables integration of ABB drives into a LONWORKS® control system.

FAQ

Q1: What is the main function of the ABB FLON-01 (3ABD0000037539)?

A1: It is an adapter that connects ABB drives to a LONWORKS® communication network.

Q2: Which transceivers are compatible with the FLON-01?

A2: It is compatible with devices using FT-X1 and FTT-10A transceivers.

Q3: How is the bus terminated with the FLON-01?

A3: Resistors between conductors A and B terminate the bus at the cable end to prevent signal reflections.

Q4: How should the network cable screen be earthed?

A4: The screen is earthed directly at one point only; other stations require earthing via an RC filter.

Q5: What role does the FLON-01 play in network topology?

A5: It provides correct termination for various topologies and facilitates proper screen connection.
