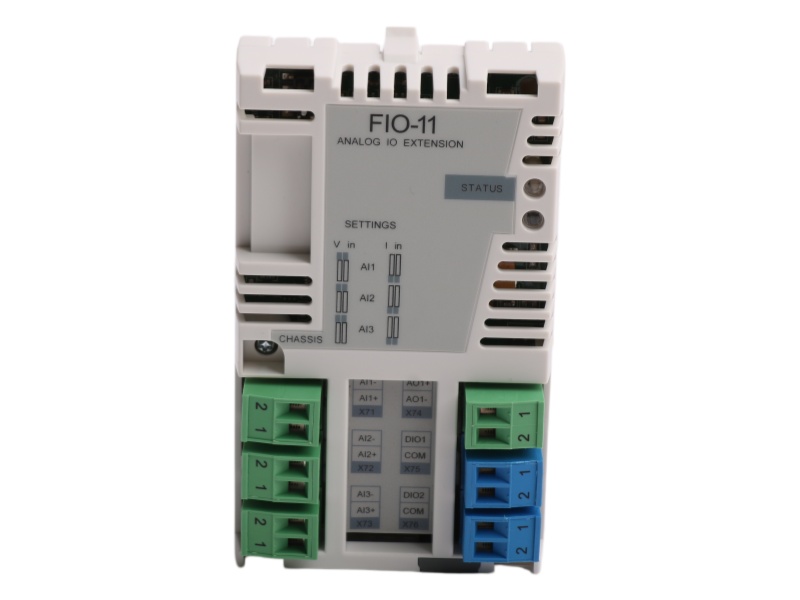

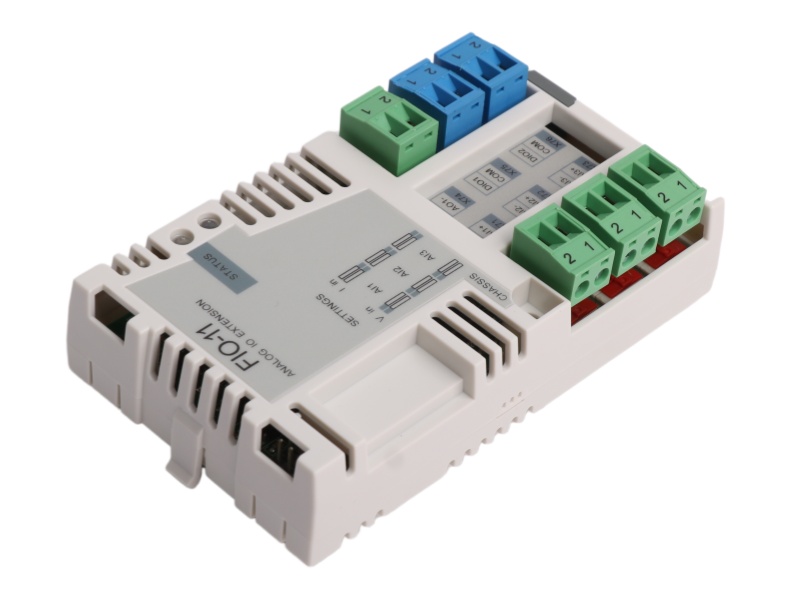

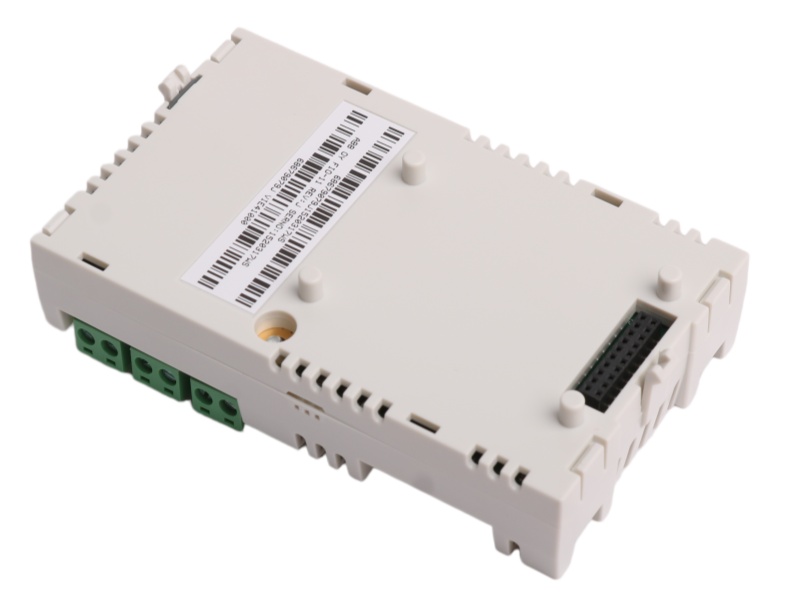

FIO-11 Overview

The FIO-11 ANALOG IO EXTENSION ABB is an analog I/O extension module supporting voltage (±10V, 0-10V) and current (±20mA, 4-20mA) inputs, plus one analog output and digital I/O, typically powered by 24V DC.

Product Advantages

Versatile Analog Inputs: Accepts both current (-20…20 mA) and voltage (-10…10 V) signals across three channels for flexible field device connectivity.

Integrated Analog Output: Features one configurable 0…20 mA analog output channel for precise control applications.

Flexible Digital I/O: Includes two multifunctional channels configurable as 24V digital inputs or source/sink outputs (50 mA each).

Wide Supply Range: Operates on typical 24V DC or 48V DC power supplies for installation flexibility.

Broad Compatibility: Supports multiple signal types including 0-10V, ±10V, 0-5V, and 4-20mA for diverse industrial applications.

Robust Temperature Range: Functions reliably in operating temperatures from -10°C to +55°C with extended storage capability.

FAQ

Q1: What types of analog input signals does the FIO-11 support?

A1: It supports current inputs from -20 mA to 20 mA and voltage inputs from -10 V to 10 V.

Q2: Does the module have an analog output?

A2: Yes, it features one analog output channel with 0 to 20 mA current output capability.

Q3: What are the digital I/O specifications?

A3: Digital channels feature 24V logic levels: "0" < 5V, "1" > 15V, with 50 mA source or sink output current.

Q4: What supply voltages are typically used for this module?

A4: The module typically operates on 24V DC or 48V DC power supplies.

Q5: What is the operating temperature range for the FIO-11?

A5: The operating temperature range is typically -10°C to +55°C, with storage from -40°C to +70°C.
