ABB S500-eCo 8 INPUT / 8 OUTPUT DIGITAL I/O
Combined 24 V DC input and transistor-output processing in one compact module.

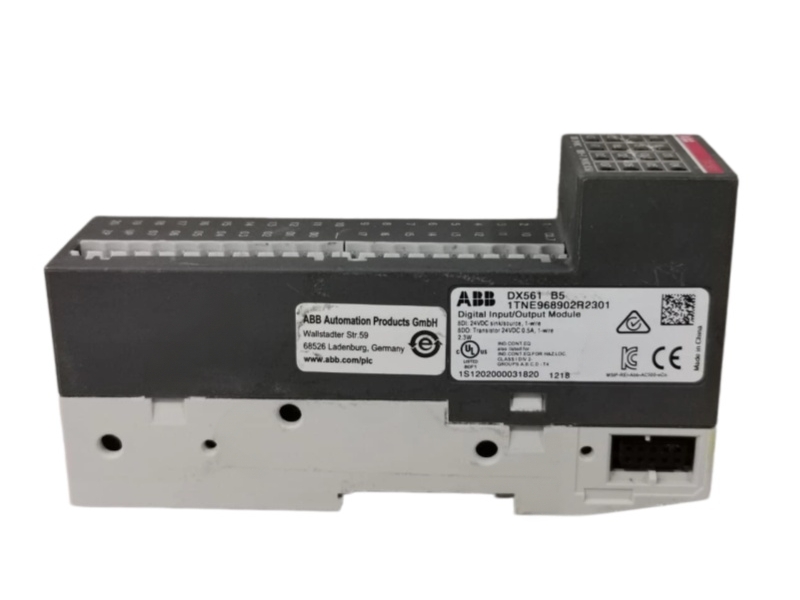

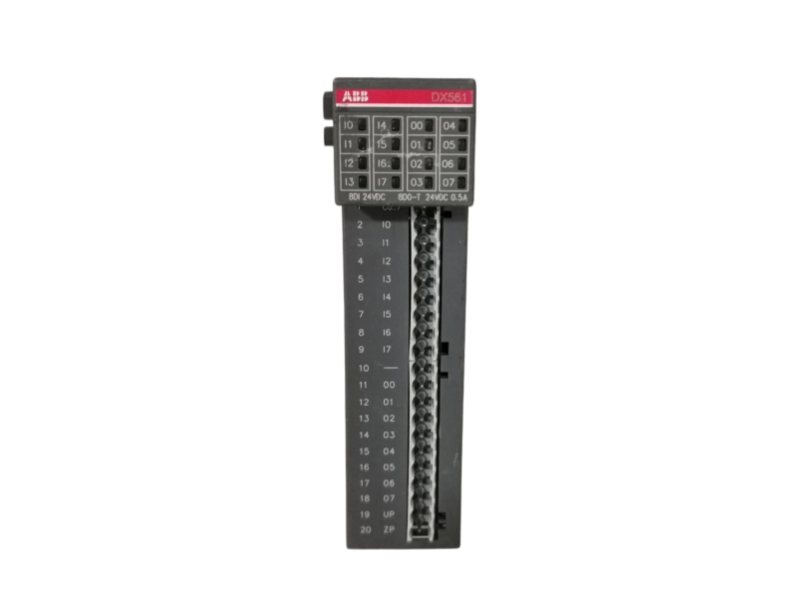

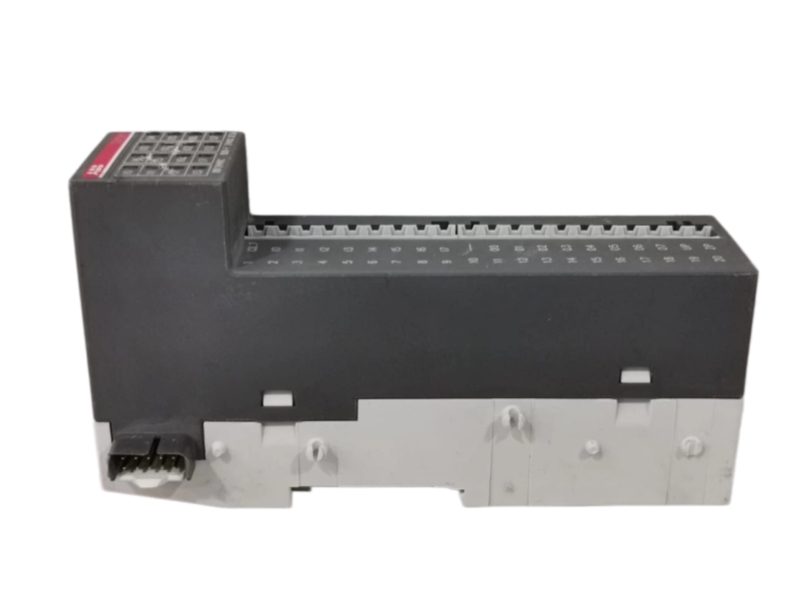

ABB DX561 is an S500-eCo digital input/output module identified by order code 1TNE968902R2301. ABB documents eight 24 V DC digital inputs in one group and eight 24 V DC transistor outputs in one group, with a rated output current of 0.5 A per channel. The groups are galvanically isolated, and separate yellow LEDs indicate input and output states. DX561 is suited to compact I/O expansion where both sensing and actuation are required. Before ordering, verify the complete code, output load, terminal blocks, field wiring and controller configuration.
| Manufacturer | ABB |
| Complete Part Number | DX561 |
| Official Order Code | 1TNE968902R2301 |
| Product Type | Digital input/output module |
| Series | S500-eCo |
| Official Catalog Weight | 0.120 kg |
| Product Condition | NEW |
| Warranty | With 1 year warranty |
| Shipping | Quoted after quantity, destination and packaging review. |
| Area | Documented Function | Project Check |
|---|---|---|
| Digital inputs | 8 inputs for 24 V DC signals in one group. | Confirm sink/source wiring and the input common. |
| Digital outputs | 8 transistor outputs for 24 V DC, rated 0.5 A. | Review each connected load and protective design. |
| Isolation | Input and output groups are galvanically isolated. | Preserve the documented group boundaries in the wiring plan. |
| Connection | 9-pin input and 11-pin output terminal blocks. | Confirm terminal-block type and cable-entry arrangement. |
ABB documents eight digital inputs and eight transistor outputs.
The inputs and outputs are documented for 24 V DC operation.
ABB identifies the digital outputs as 0.5 A transistor outputs.
The confirmed DX561 order code is 1TNE968902R2301.
Yes. ABB documents group-wise galvanic isolation.
This listing is prepared as NEW with 1 year warranty under the written quotation terms.
