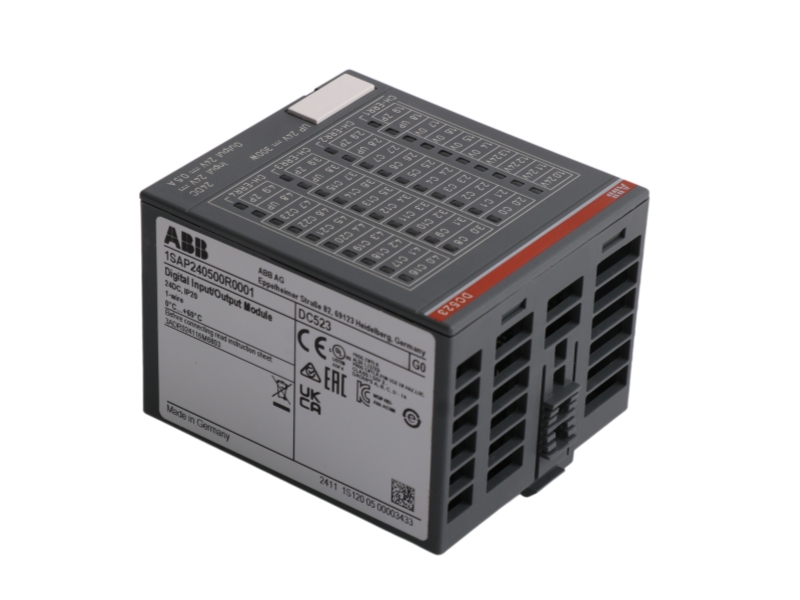

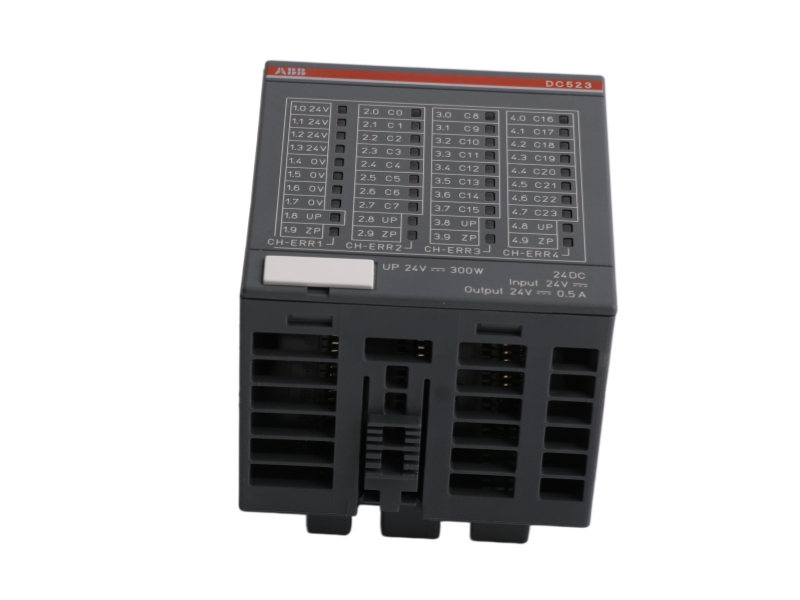

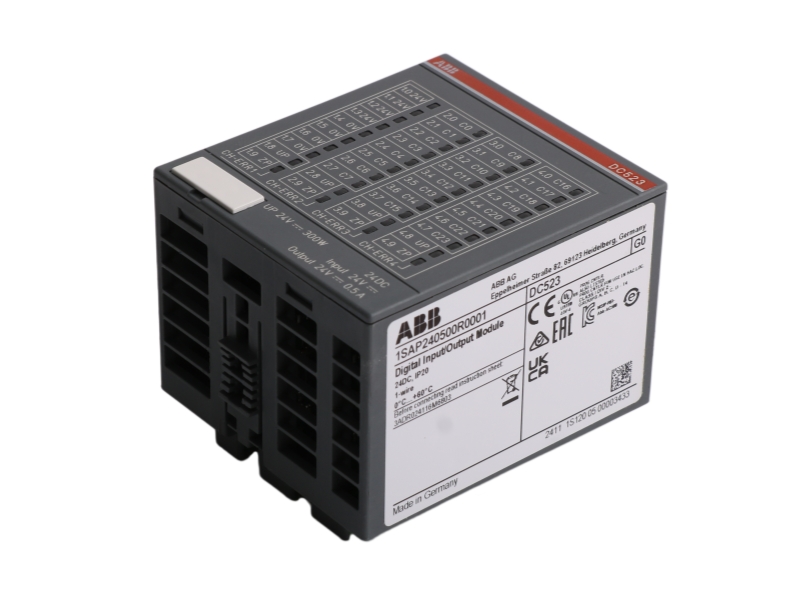

ABB DC523 1SAP240500R0001 is a compact digital I/O module for 24 VDC control systems, offering reliable signal processing, flexible 2-wire configuration, and seamless integration in ABB PLC automation applications environments.
Specifications
-
• Product Type
ABB DC523 (1SAP240500R0001) is a S500 digital configurable I/O module for AC500 PLC systems with 24V DC operation. -
• I/O Configuration
24 digital configurable I/Os with 24V DC input/output support, designed for flexible industrial automation control. -
• Performance
Includes 2 hardware counters, up to 50 kHz input frequency, 0.5A output current for fast signal processing. -
• Design & Compliance
Compact DIN-rail module (0.14 kg), IP20 protection, 0–60°C operation, fully CE/UL/CSA compliant.
FAQ
-
Q1: What is ABB DC523 1SAP240500R0001 used for?
A1: It is a digital configurable I/O module for ABB AC500 PLC systems used in industrial automation control.Q2: How many I/O channels does the ABB DC523 support?
A2: It supports up to 24 configurable digital I/O channels with 24V DC operation.Q3: What is the operating voltage of ABB DC523 module?
A3: The module operates on a standard 24V DC power supply.Q4: Does ABB DC523 support high-speed counting?
A4: Yes, it includes 2 hardware counters with up to 50 kHz input frequency.Q5: What PLC system is ABB DC523 compatible with?
A5: It is compatible with the ABB AC500 PLC system and programmed via Control Builder PS501-PROG.
