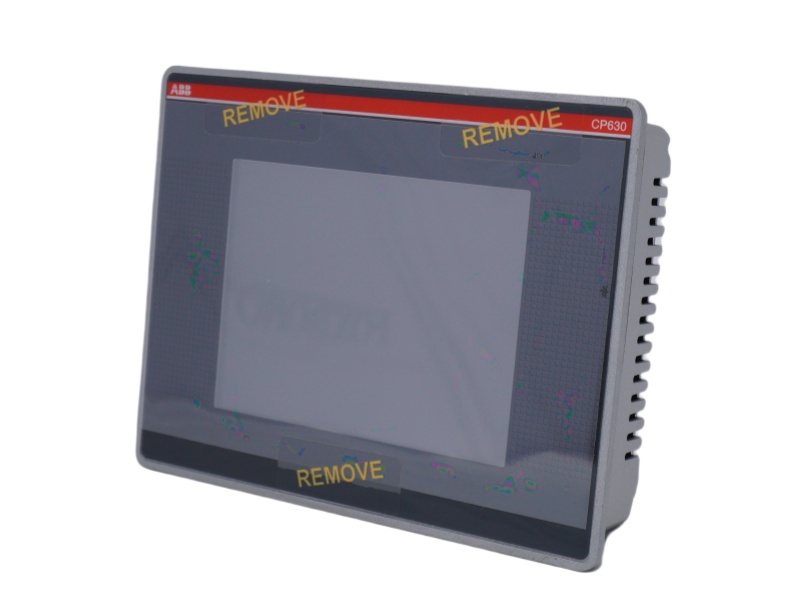

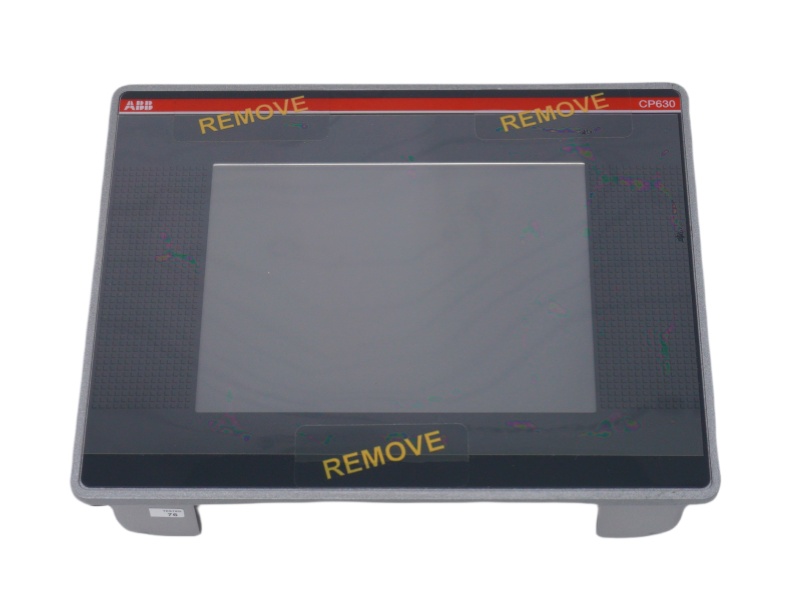

The Touch Screen ABB CP630 1SAP530100R0001 is a robust and high-performance control panel designed for use within the CP600 platform. Featuring a 5.7-inch TFT LCD display with LED backlighting, it offers a resolution of 640 x 480 pixels and supports 65,536 colors for vivid and accurate visualization. The resistive touchscreen ensures precise input, even in industrial environments, while the ±60° viewing angle and 350 cd/m² brightness provide excellent visibility from multiple positions.

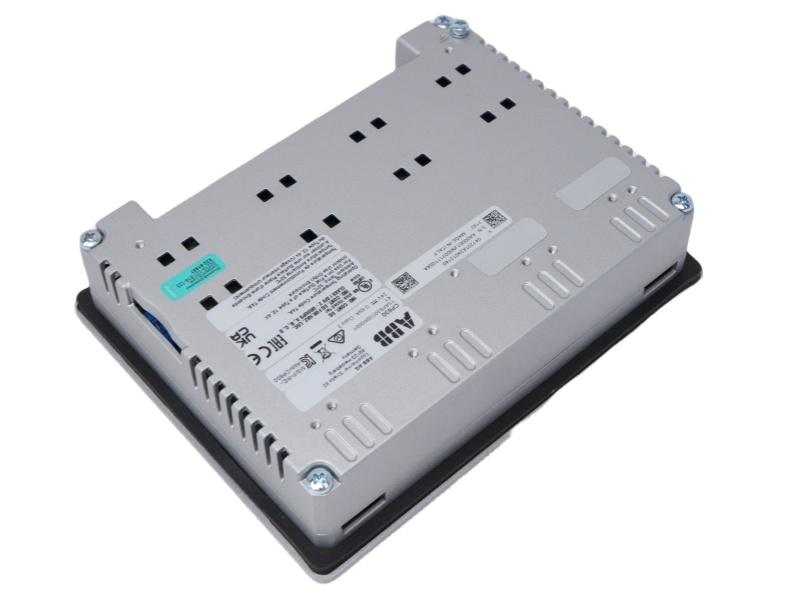

Engineered for versatility, the ABB CP630 5.7 Inch Touch Screen 1SAP530100R0001 supports multiple communication interfaces including 2x Ethernet 100 Mbit, 1x RS232/422/485 serial port, 2x USB 2.0 host ports, an SD card slot, and 2 expansion slots. It operates on 24 V DC (range: 18–30 V DC) with a power consumption of approximately 16.8 W. This model is housed in a rugged design with a Zamak front and aluminum rear, rated at IP66 for the front and IP20 for the housing according to IEC 60529.

The 1SAP530100R0001 ABB Control Panel features 128 MB user data memory and 256 MB DDR RAM for user programs, along with integrated flash disk memory. Device security is enhanced through password protection with eight user levels, offering reliable access control and protection against unauthorized configuration changes.

Ideal for industrial HMI applications, the CP630 CP 600 Control Panels ABB is programmed using the PB610 Panel Builder software, providing flexible development and deployment of user interfaces. With its compact dimensions (51 x 147 x 187 mm), advanced display capabilities, and wide range of I/O options, the ABB CP630 1SAP530100R0001 Touch Screen delivers reliable, user-friendly performance in demanding automation environments.
