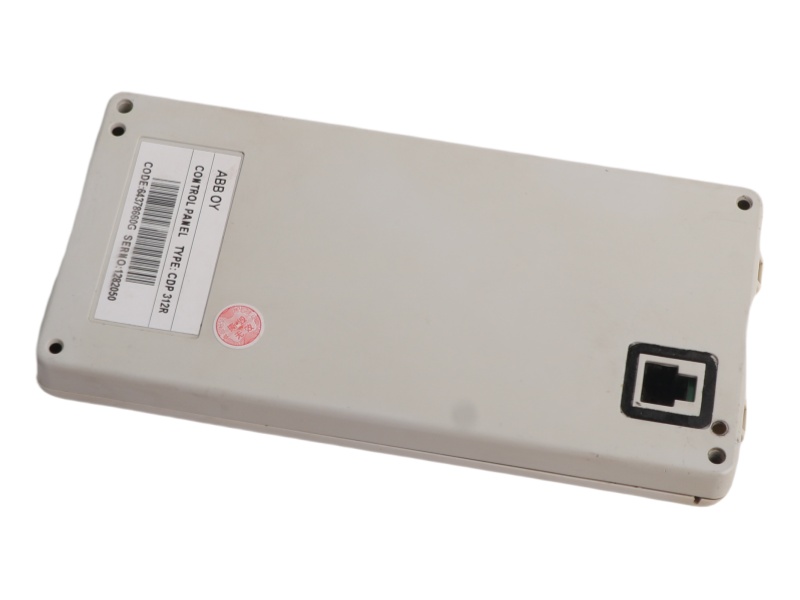

The ABB CDP312R Control Panel is a versatile control panel display unit designed for industrial automation applications, featuring a clear LCD screen with 4 lines of 20 characters for optimal operator interface. This compact yet powerful display allows users to select their preferred language during start-up through parameter 99.01, ensuring accessibility for international operations. The ABB CDP312R Control Panel for ACS800 Series Drive is particularly valued for its intuitive navigation system and robust construction suitable for demanding industrial environments.

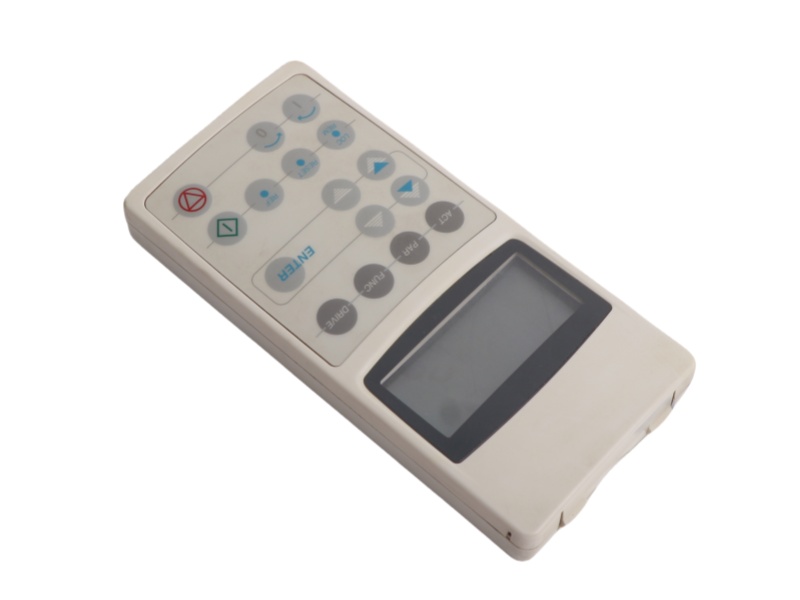

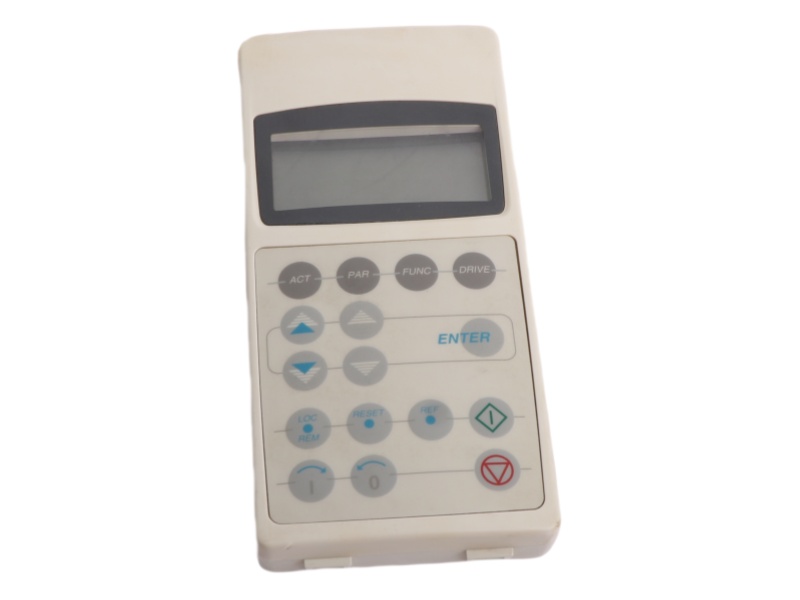

The ABB CDP312R provides comprehensive control capabilities. The ACT key activates Actual Signal Display Mode for real-time monitoring, while the PAR key accesses Parameter Mode for system configuration. The FUNC key enables Function Mode for advanced operations, and the DRIVE key selects between different drive configurations, making the CDP312R CONTROL PANEL ABB adaptable to various automation scenarios.

The CDP312R for ABB ACS800 control panel features a sophisticated navigation system utilizing single arrow keys for basic scrolling, double arrow keys for rapid movement through menus, and an ENTER key for confirmation - with each key's function dynamically adapting to the current operation mode. This intelligent design enhances user experience while reducing the potential for operational errors in critical industrial processes.

As a reliable interface solution, the CONTROL PANEL ABB CDP312R is commonly integrated with ABB's AC 500 PLC systems, providing operators with clear visibility and control over automation parameters. Its rugged design withstands industrial environments while maintaining user-friendly operation.
